Xerox WorkCentre 5225

February, 2008
5-104
WorkCentre 5225, 5230
PL 23.17
Launch Version
Parts List

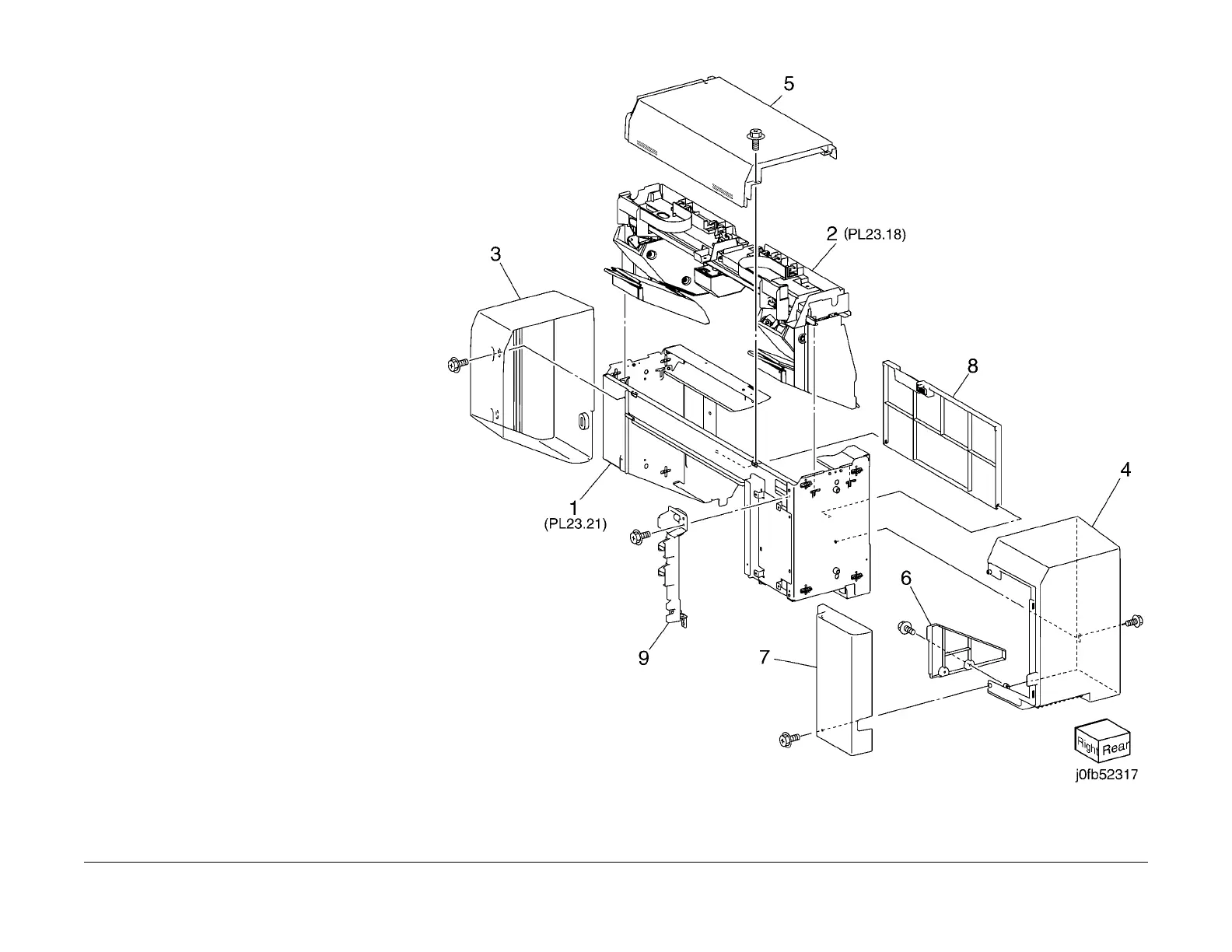

PL 23.17 Booklet Cover
Item Part Description
1 – Frame Assembly (REF: PL 23.21)
2 – Booklet Stapler Assembly (REF: PL
23.18)
3 848E15321 Front Cover (REP 16.3.3)
4 848E15332 Rear Cover (REP 16.3.4)
5 848E15340 Top Cover (REP 16.3.5)
6 848E15350 Side Cover
7 848E15361 PWB Cover (REP 16.3.6)
8 848K09340 Left Cover (REP 16.3.7)
9 – Harness Guide (Not Spared)
