Xerox WorkCentre 5225

February, 2008
4-201
WorkCentre 5225, 5230
REP 22.8.2
Repairs and Adjustments
Launch Version
9. Remove the Stacker Stack Sensor Assembly. (Figure 5)
(1)Remove Screw.
(2)Remove Stacker Stack Sensor Assembly.
(3)Remove wires from Clamps (4)

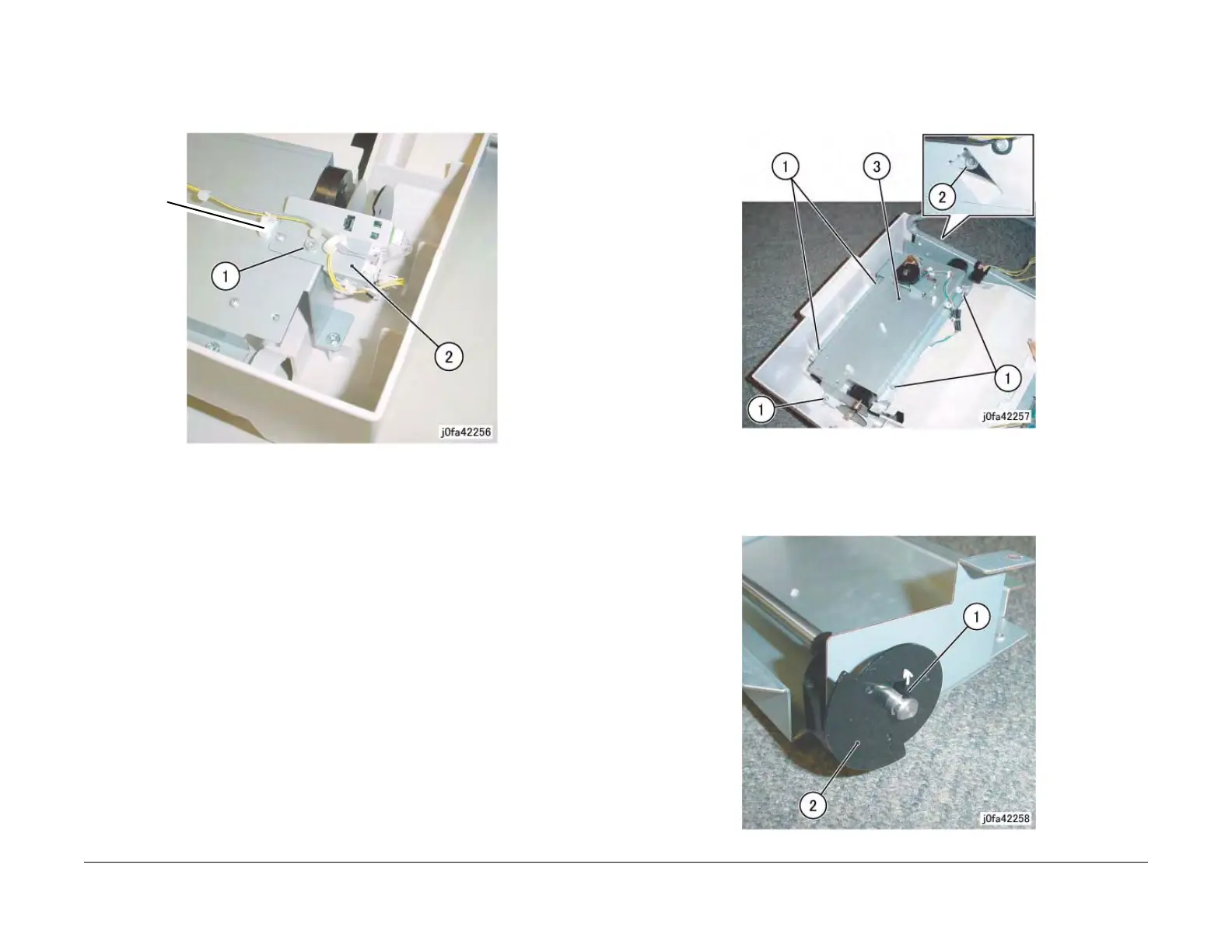

Figure 5 Removing the Stacker Stack Sensor Assembly (j0fa42256)
10. Remove the Stacker Assembly. (Figure 6)
(1)Remove Tapping Screws (5).
(2)Remove Screw.
(3)Remove Stacker Assembly.
Figure 6 Removing the Stacker Assembly (j0fa42257)
11. Remove the Actuator. (Figure 7)
(1)Unhook.
(2)Remove Actuator.
Figure 7 Removing the Actuator (j0fa42258)
Clamp (4)
