Xerox WorkCentre 5225

February, 2008
4-141
WorkCentre 5225, 5230
REP 16.2.10, REP 16.2.11
Repairs and Adjustments
Launch Version
REP 16.2.10 Sub Paddle Solenoid Assembly
Parts List on PL 23.10
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Eject Cover. (REP 16.2.5)
2. Remove the Sub Paddle Solenoid Assembly.
a. Disconnect the connector.
b. Remove the wires from the wire clamps
c. Remove the screw (1) from the Sub Paddle Solenoid Assembly.
d. Remove the Sub Paddle Solenoid Assembly.

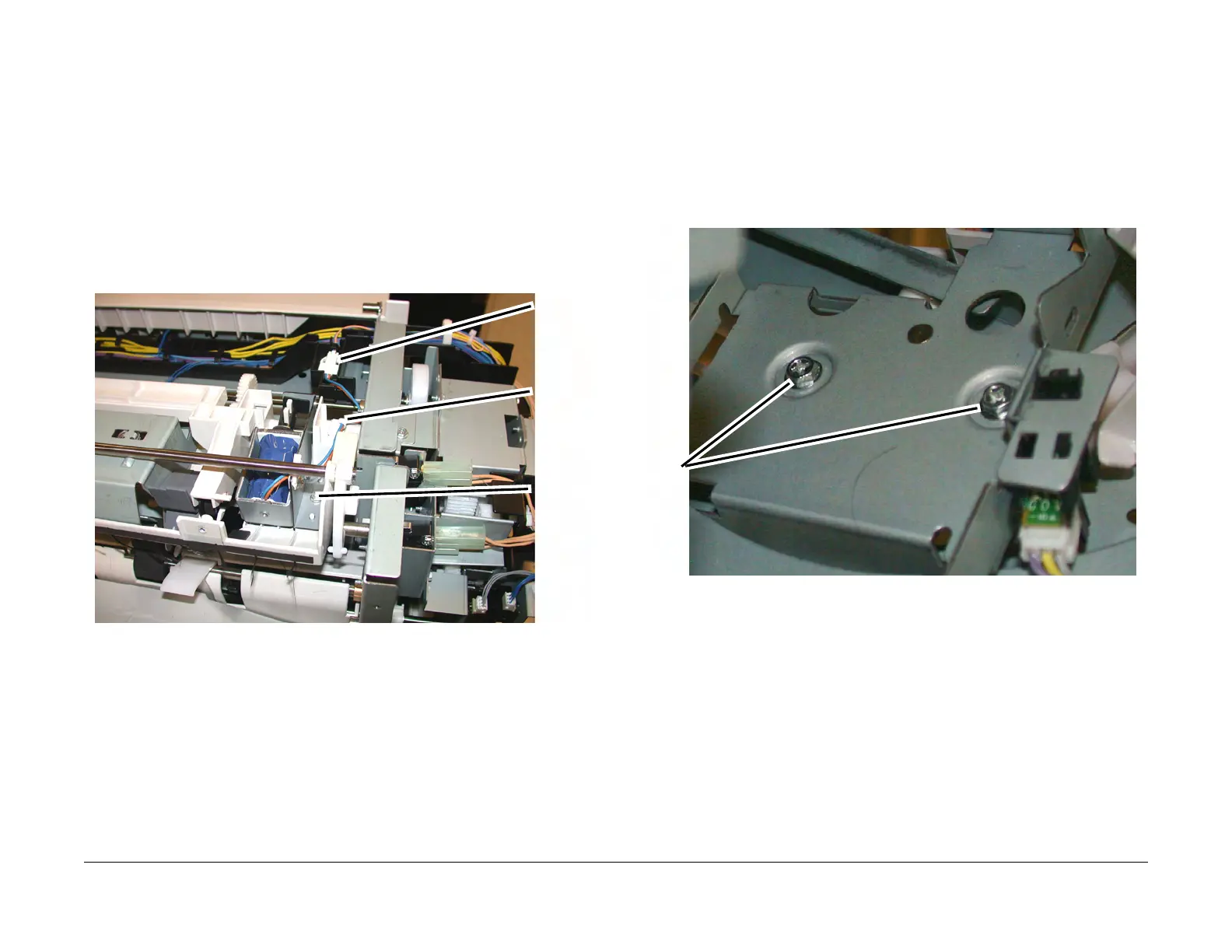

Figure 1 Removing the Sub Paddle Solenoid Assembly (j0st41736)
REP 16.2.11 Finisher Stapler Move Motor
Parts List on PL 23.8
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Finisher Stapler Assembly. (REP 16.2.12)
2. Remove the Screws (2). (Figure 1)
Figure 1 Removing the Screws (2) (j0st41697)
1
Discon-
nect the
Connec-
tor
2
Remove
wires
from
wire
clamp
3
Remove
the
screw
(1)
Screws
