February, 2008
3-11
WorkCentre 5225, 5230
Image Quality
Launch Version
Copy Quality Specifications
Test Patterns
Procedure
Test Patterns
1. The following test patterns are used with those products.
Standard Test Pattern: USCO/XCL, 82P524; XL,
82P521.
Output Reference Guide: USCO/XL, SIR 542.00.
Visual Scale: USCO/XL, 82P448
Standard Test Pattern, 82P524/82P521
Procedure
This test pattern is the standard multinational test pattern
used for the evaluation of copy quality for those products.
Side A (Figure 1) is used to evaluate solid area density, uni-
formity, exposure level, registration, skew, and lead edge
deletion.

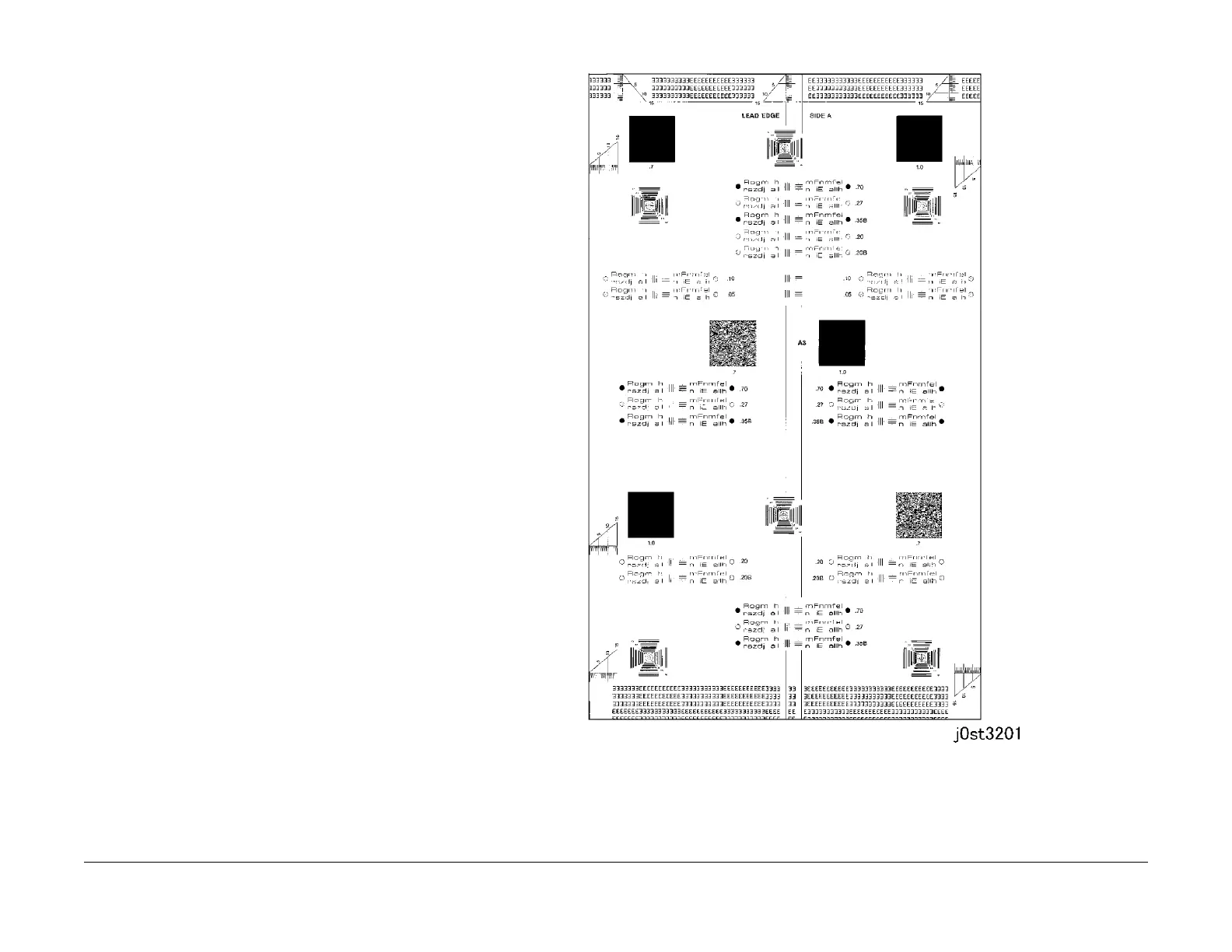

Figure 1 Standard Test Pattern (Side A)(j0st3201)
Side B (Figure 2) is used to evaluate skips and smears, resolution, and magnification.
