February, 2008
5-48
WorkCentre 5225, 5230
PL 12.6
Launch Version
Parts List

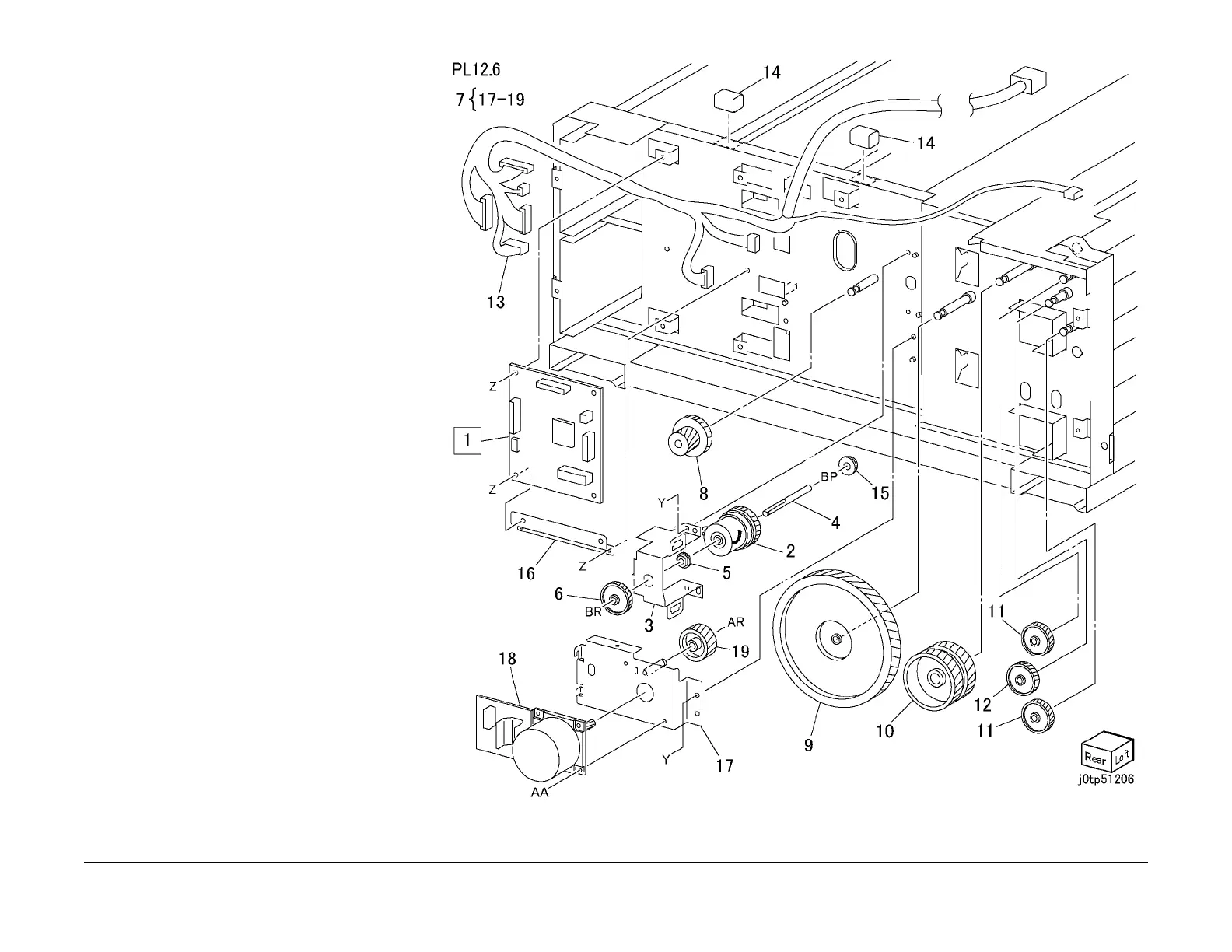

PL 12.6 Electrical-2Tray
Item Part Description
1 960K16185 2 Tray Module PWB (REP 12.4)
2 121K31530 2 Tray Module Takeaway Roll
Clutch
3 Bracket (Not Spared)
4 Shaft (Not Spared)
5 Bearing (Not Spared)
6 Gear (38T) (Not Spared)
7 007K93801 2 Tray Module Takeaway Motor
Assembly
8 Gear (22T/40T) (Not Spared)
9 Gear (126T) (Not Spared)
10 Gear (37T) (Not Spared)
11 Gear (37T) (Not Spared)
12 Gear (32T) (Not Spared)
13 962K18900 Wire Harness
14 Gasket (Not Spared)
15 604K20720 Bearing
16 Bracket (Not Spared)
17 Bracket (P/O PL 12.6 Item 7)
18 2Tray Takeaway Module Motor
(P/O PL 12.6 Item 7)
19 Gear (50T) (P/O PL 12.6 Item 7)
