Xerox WorkCentre 5225

February, 2008
4-128
WorkCentre 5225, 5230
REP 15.8.1
Launch Version
Repairs and Adjustments

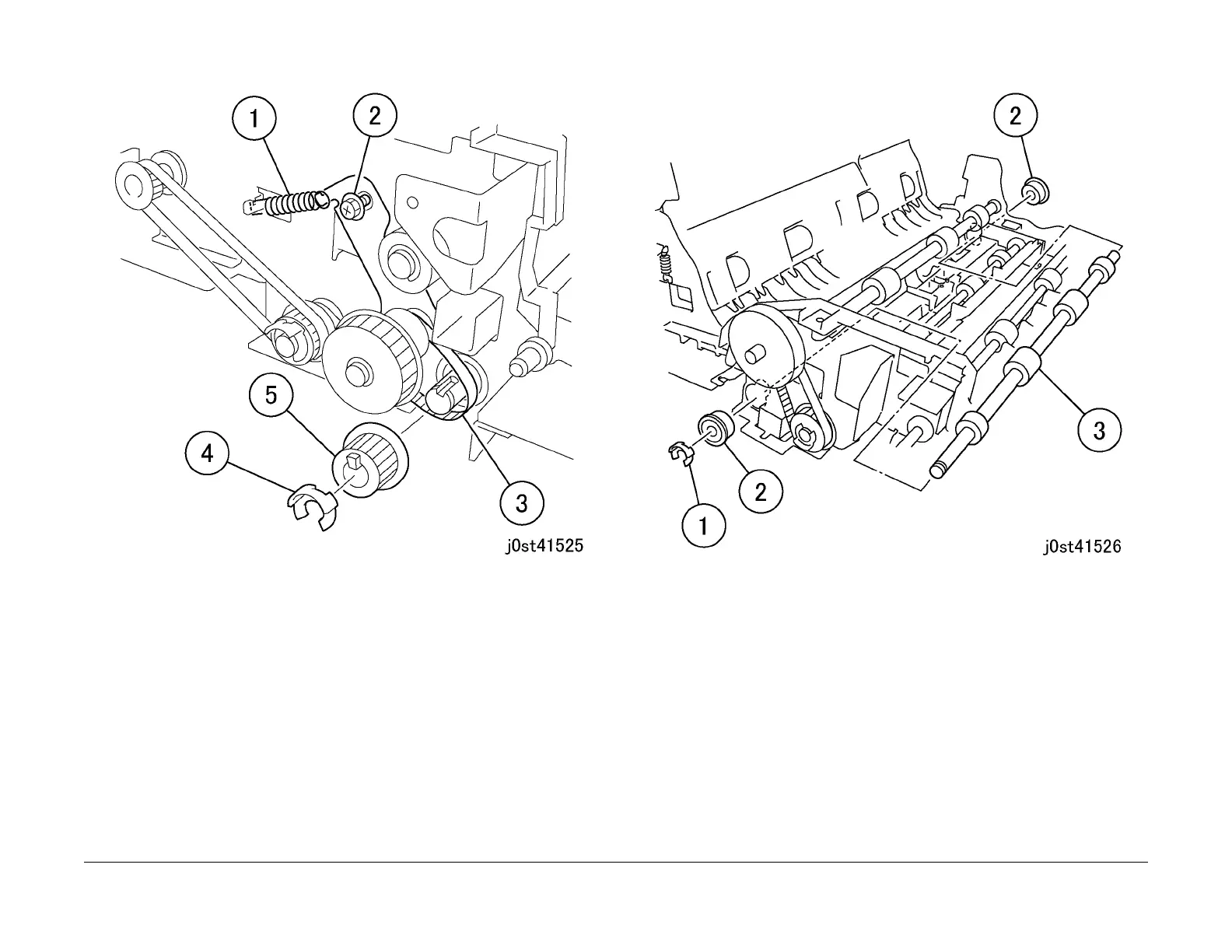

Figure 5 Loosening the belt tension
12. Remove the Registration Roll. (Figure 6)
1. Remove the E-Clip.
2. Remove the bearings (2).
3. Remove the Registration Roll.
Figure 6 Removing the Registration Roll
