February, 2008
4-117
WorkCentre 5225, 5230
REP 15.4.2
Repairs and Adjustments
Launch Version

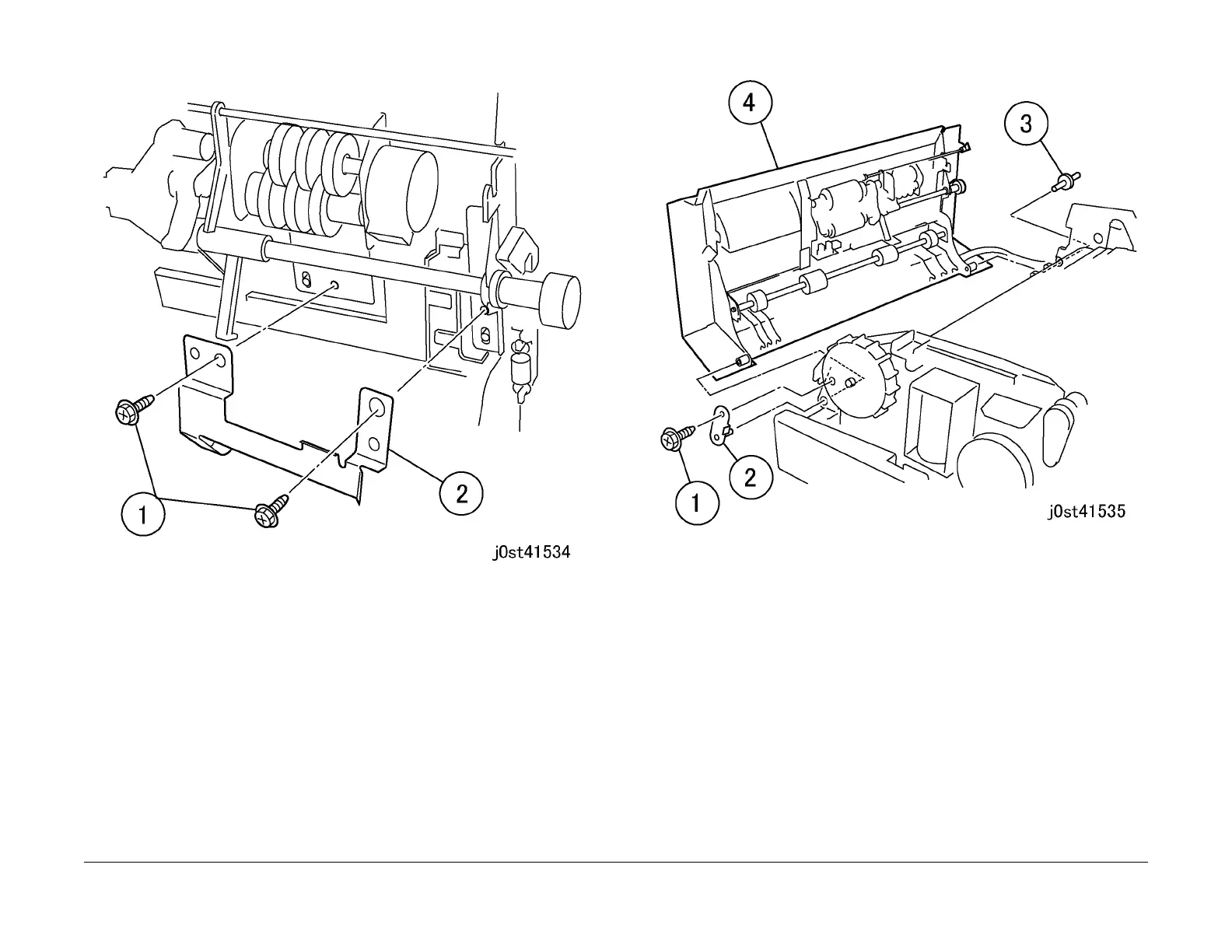

Figure 3 Removing the Plate Spring
6. Remove the Top Cover with the Wire Harness connected. (Figure 4)
1. Remove the screw (1).
2. Remove the Stud Bracket.
3. Remove the stud.
4. Remove the Top Cover Assembly.
Figure 4 Removing the Top Cover Assembly
7. Unfasten the Wire Harness. (Figure 5)
1. Disconnect the connector.
2. Remove the Topping Screw (1).
3. Remove the Earth Wire.
4. Remove the Tapping Screw (2).
5. Unfasten the Harness Guide.
To Next Page
