Xerox WorkCentre 5225 Service Manual

February, 2008
4-119
WorkCentre 5225, 5230
REP 15.4.2
Repairs and Adjustments
Launch Version
Replacement
1. Remove the Wire Harness from the new Top Cover Assembly when installing the cover.
2. Remove the Feed Upper Chute and Plate Spring from the new Top Cover Assembly. (Fig-
ure 7)
1. Remove the screw (1).
2. Remove the Feed Upper Chute.
3. Remove the Tapping Screw (2).
4. Remove the Plate Spring.

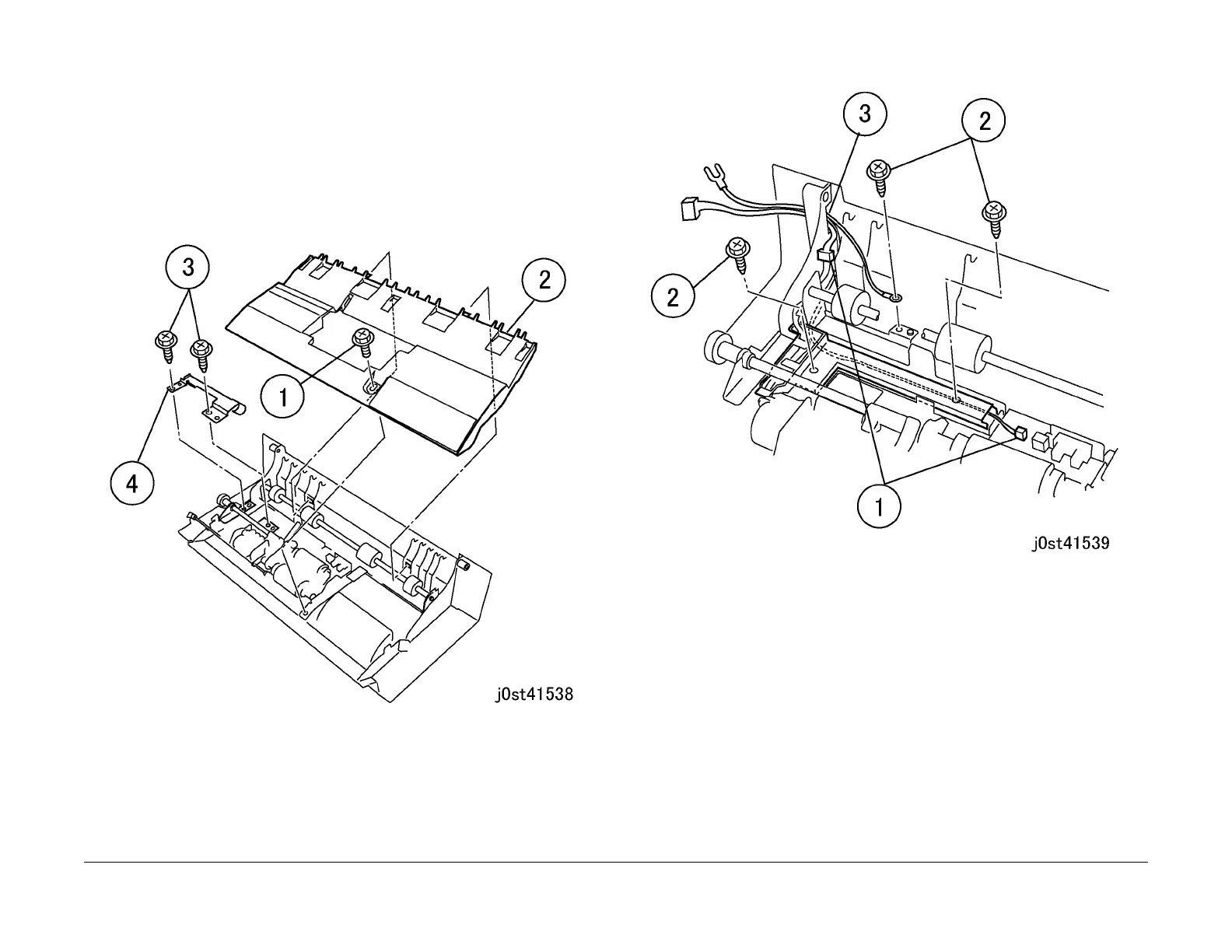

Figure 7 Removing the Feed Upper Chute and Plate Spring
3. Remove the Wire Harness from the new Top Cover. (Figure 8)
1. Disconnect the connectors (2).
2. Removing the Tapping Screw (3).
3. Removing the Wire Harness (x3) from the square hole.
Figure 8 Removing the Wire Harness
4. Hook on the spring when securing the Harness Guide. (Figure 9)
