Xerox WorkCentre 5225

February, 2008
3-16
WorkCentre 5225, 5230
Launch Version
Image Quality
DADF (Simplex) +/-2.9mm
DADF (Duplex) +/-3.2mm
Table 1 Specification of Side Edge Registration
Configuration Range
IQS6 Skew Specification
Procedure
Use Side A of the Standard Test Pattern.
Skew must be within the following ranges (with respect to each other) at the two 10 mm reference lines shown (Figure 1).

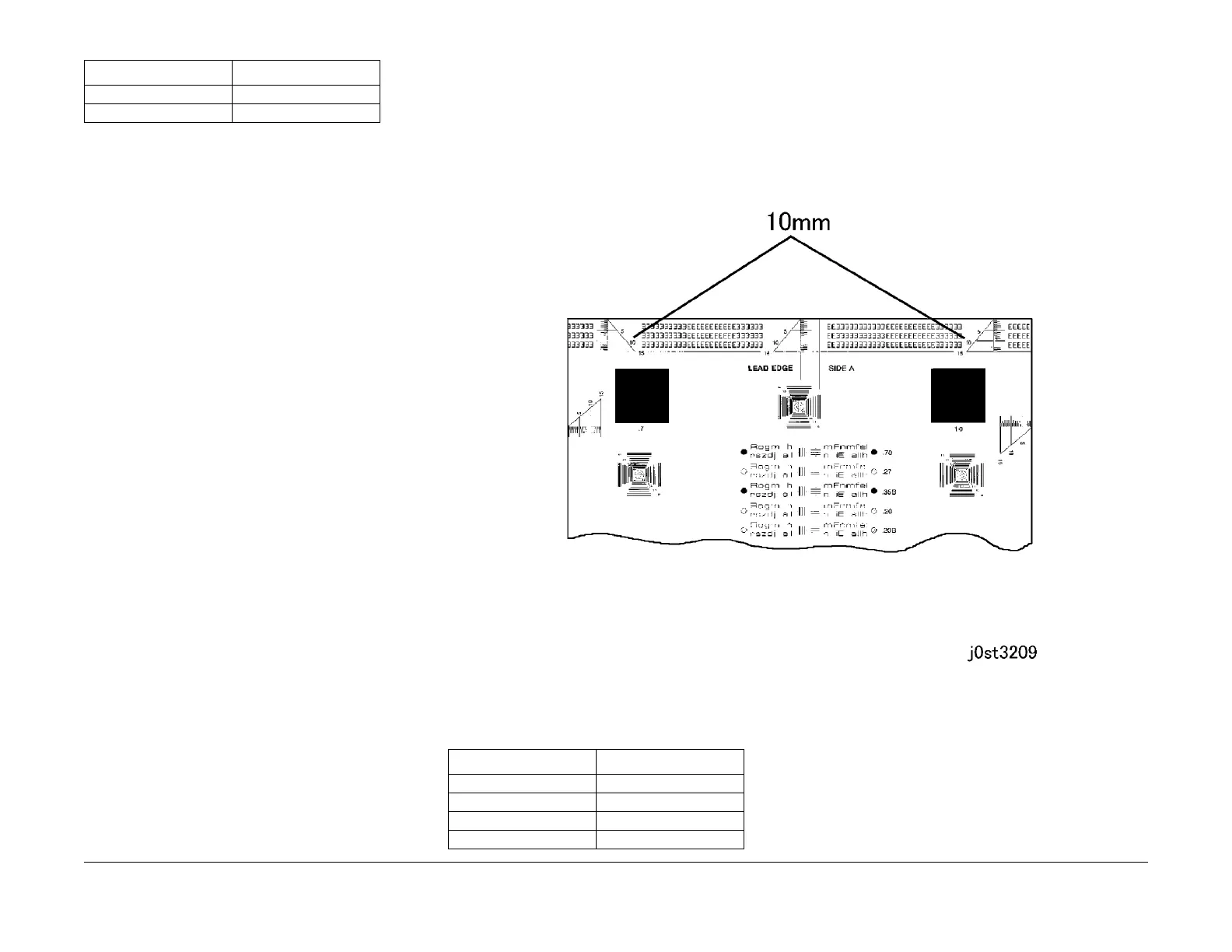

Figure 1 1 Skew(j0st3209)
Table 1 Specification of Skew
Configuration Range
Platen (Simplex) +/-1.42
Platen (Duplex) +/-1.87
Platen (MPT) +/-1.78
DADF (Simplex) +/-2.04
