February, 2008
3-15
WorkCentre 5225, 5230
Image Quality
Launch Version
DADF (Simplex) +/-2.2mm
DADF (Duplex) +/-3.0mm
Table 1 Specification of Lead Edge Registration
Configuration Range
IQS5 Side Edge Registration Specification
Procedure
Use Side A of the Standard Test Pattern.
For a copy that is folded in half, the crease in the copy should be within the following ranges from the center line of a 100% copy
(Figure 1).

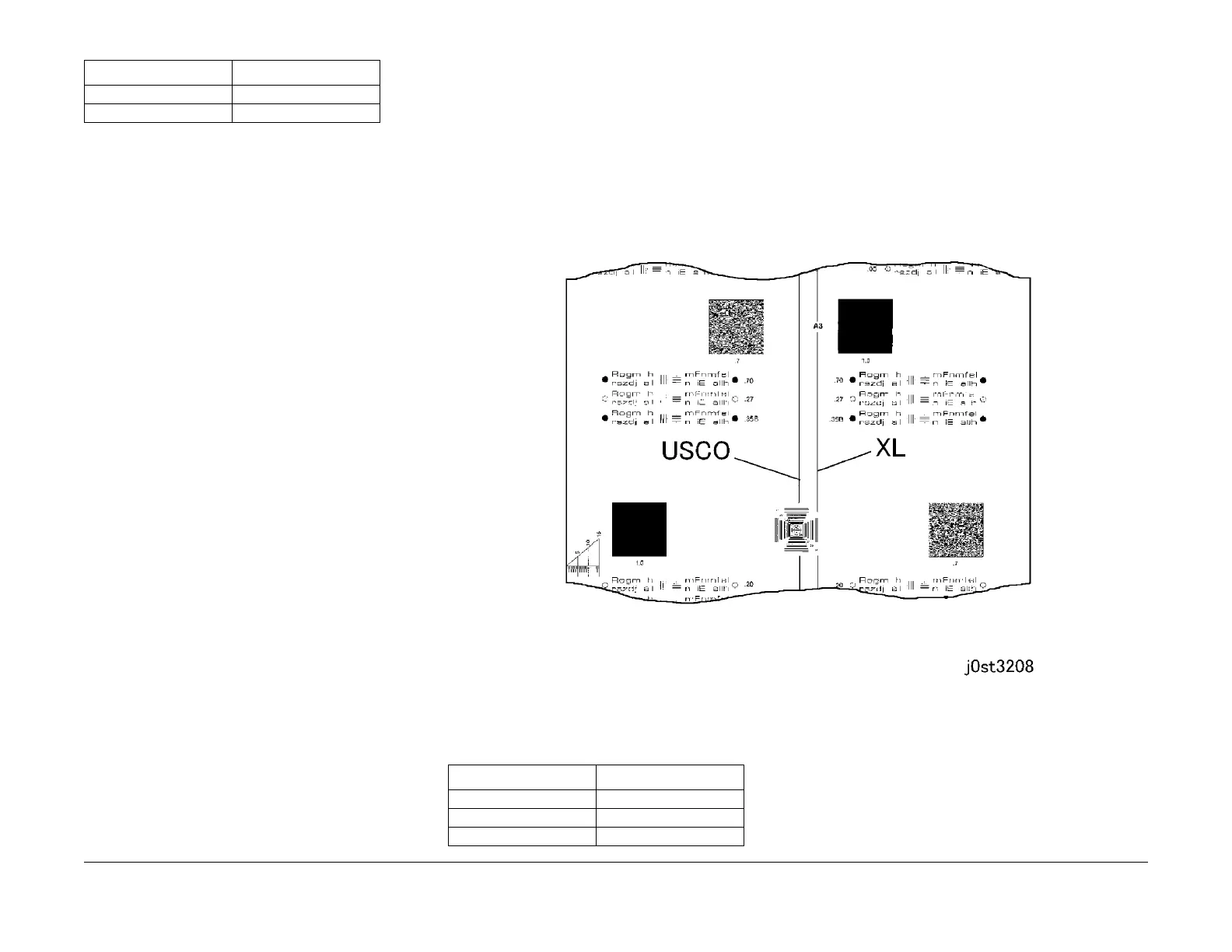

Figure 1 Side Edge Registration(j0st3208)
Table 1 Specification of Side Edge Registration
Configuration Range
Platen (Simplex) +/-2.1mm
Platen (Duplex) +/-2.5mm
Platen (MPT) +/-3.0mm
