Xerox WorkCentre 5225 Service Manual

February, 2008
4-163
WorkCentre 5225, 5230
REP 16.3.2
Repairs and Adjustments
Launch Version
3. Disconnect the Booklet Maker Assembly from the SB Finisher.

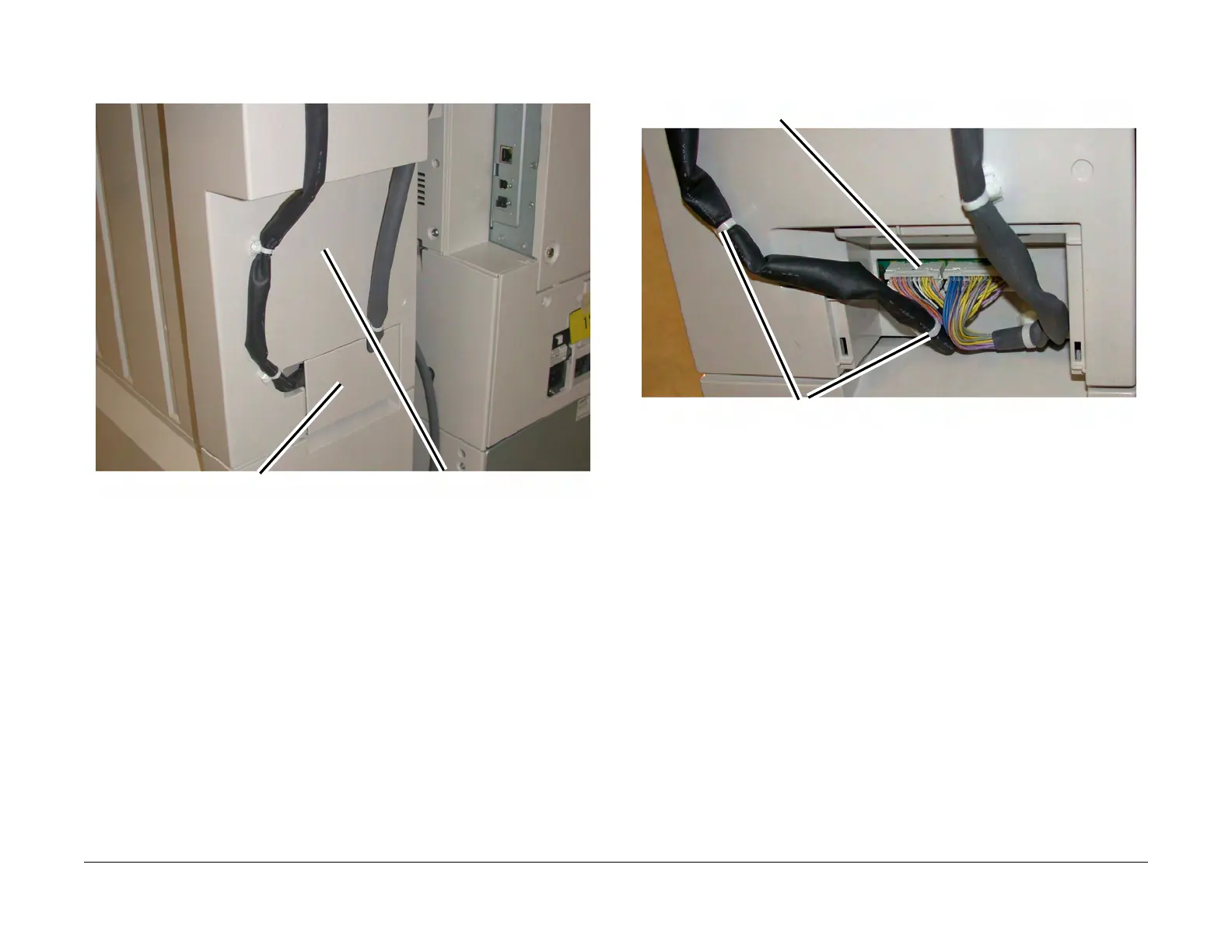

a. Remove the Connector Cover. (Figure 2)
Figure 2 Connector Cover (j0st41666)
b. Disconnect the Connector. (Figure 3)
c. Pull out the Cable Ties (4).
Figure 3 Disconnecting the Booklet Maker Assembly (j0st41667)
Connector Cover
SB Finisher
Connector
Cable Tie (4)

Xerox WorkCentre 5225 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Internal memory	No MB
Type	Digital copier
