February, 2008
4-74
WorkCentre 5225, 5230
REP 11.5.1
Launch Version
Repairs and Adjustments

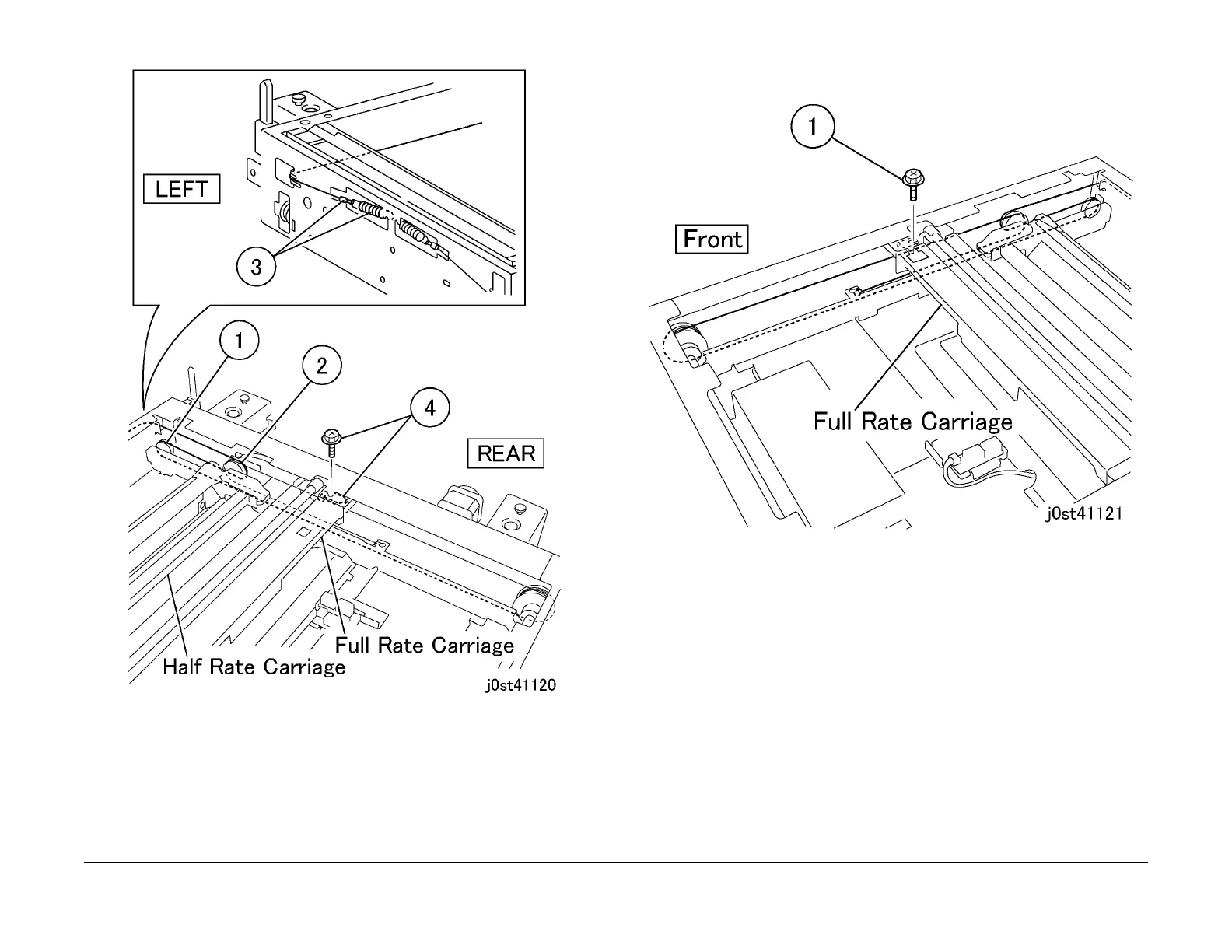

Figure 10 Installing the spring (j0st41120)
4. Fix the Full Rate Carriage at the front side. (Figure 11)
1. Fix the Full Rate Carriage on the Carriage Cable.
Figure 11 Installing the Carriage Cable at the front (j0st41121)
5. Remove the tape used for keeping the cable in place.
6. Adjust the position of Full Rate/Half Rate Carriages. (ADJ 11.6.1)
7. Manually move the Full Rate Carriage to ensure that it moves smoothly.
To Next Page
