Xerox WorkCentre 5225 Service Manual

February, 2008
5-92
WorkCentre 5225, 5230
PL 23.5
Launch Version
Parts List

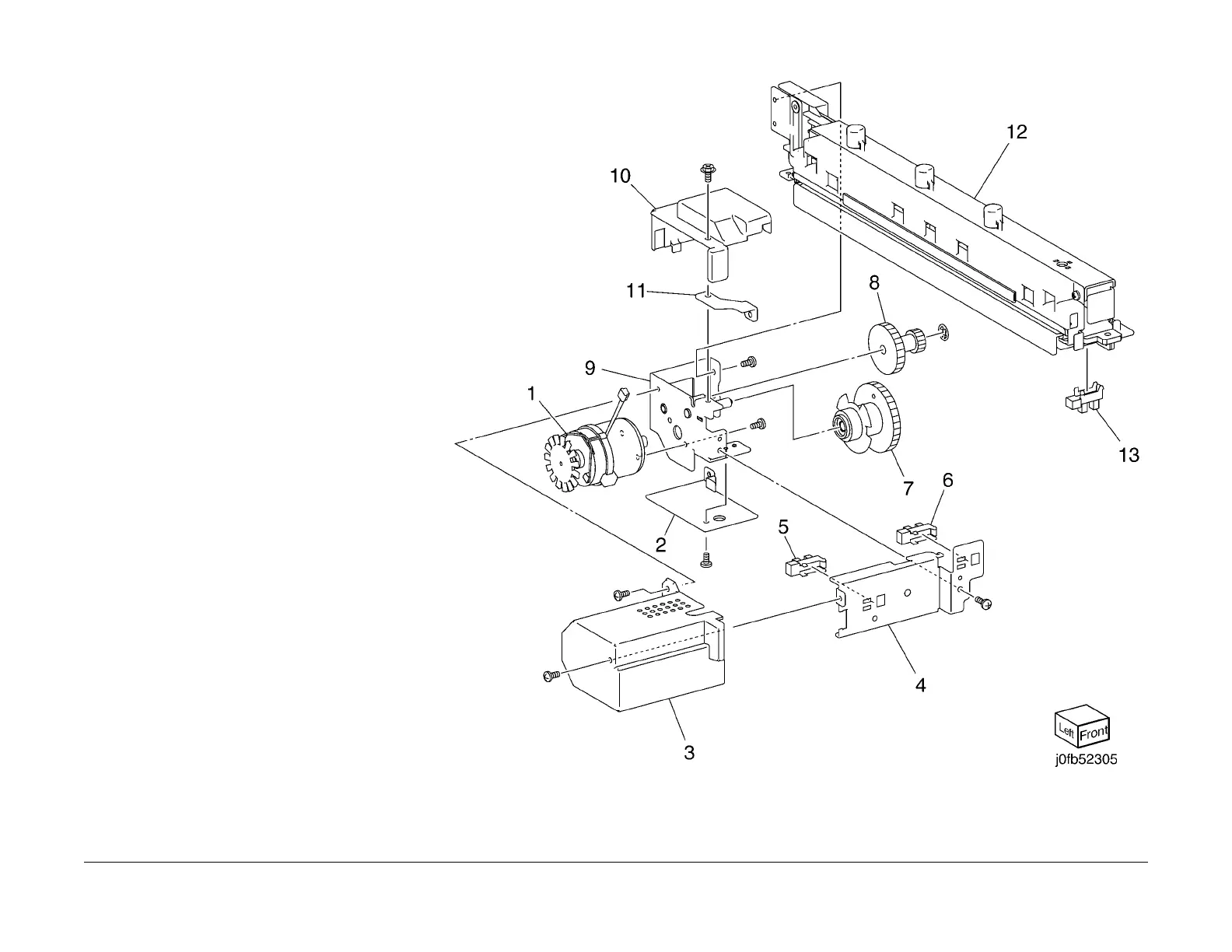

PL 23.5 H - Transport Assembly (5 of
5)
Item Part Description
1 – Punch Motor (P/O PL 23.2 Item 10)
2 – Punch Lower Cover (P/O PL 23.2
Item 10)
3 – Punch Motor Cover (P/O PL 23.2
Item 10)
4 – Sensor Bracket (P/O PL 23.2 Item
10)
5 – Punch Encoder Sensor (P/O PL
23.2 Item 10)
6 – Punch Home Sensor (P/O PL 23.2
Item 10)
7 – Encoder / Gear Assembly (P/O PL
23.2 Item 10)
8 – Gear (P/O PL 23.2 Item 10)
9 – Motor Bracket (P/O PL 23.2 Item
10)
10 – Punch Top Cover (P/O PL 23.2
Item 10)
11 – Bracket (P/O PL 23.2 Item 10)
12 – Punch Frame Assembly (P/O PL
23.2 Item 10)
13 – Punch Box Set Sensor (P/O PL
23.2 Item 10)
