IQS12 Magnification Specification
Procedure
Use Side B of the Standard Test Pattern.
The tolerance for each magnification setting in the lead edge
to trail edge direction and the front to rear direction are listed
in Table below.
Refer to Figure 1 for the areas to be measured. For 65% and
101%, use areas A and B for the magnification in the lead
edge to trail edge direction; and areas C and D for magnifica
-
tion in the front to rear direction. For 154% use areas A and E
for magnification in the lead edge to trail edge direction; and
areas C and F for magnification in the front to rear direc
-
tion.(Figure 1)
Table 1 Magnification Specifications
Magnification(%) Measurement
65 130+/-2mm
101 202+/-2mm
154 154+/-2mm

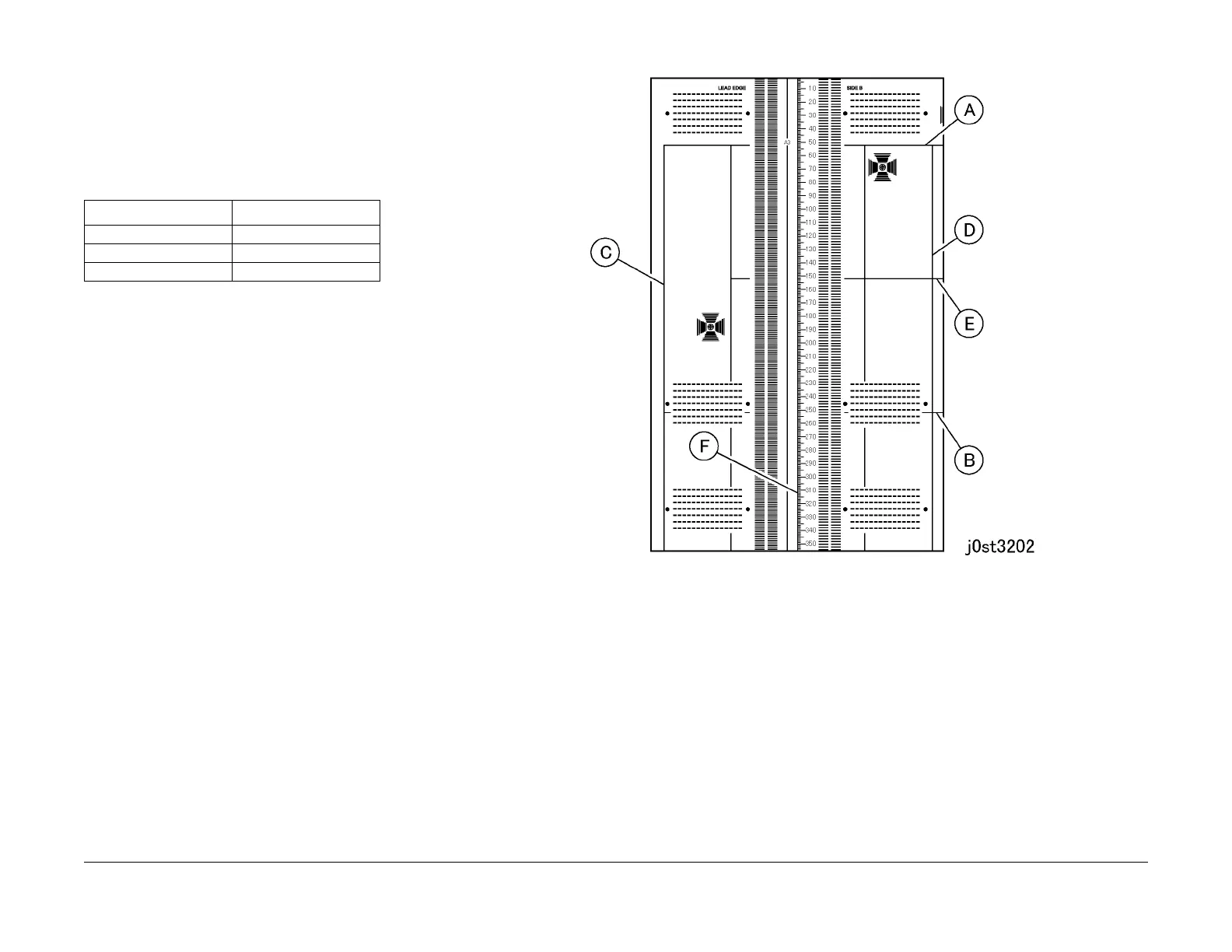

Figure 1 Areas of Side B to be Measured(j0st3202)
