February, 2008
4-164
WorkCentre 5225, 5230
REP 16.3.2, REP 16.3.3
Launch Version
Repairs and Adjustments
4. Lift the Booklet Maker Assembly off the Locating Pins (4), and remove. (Figure 4)

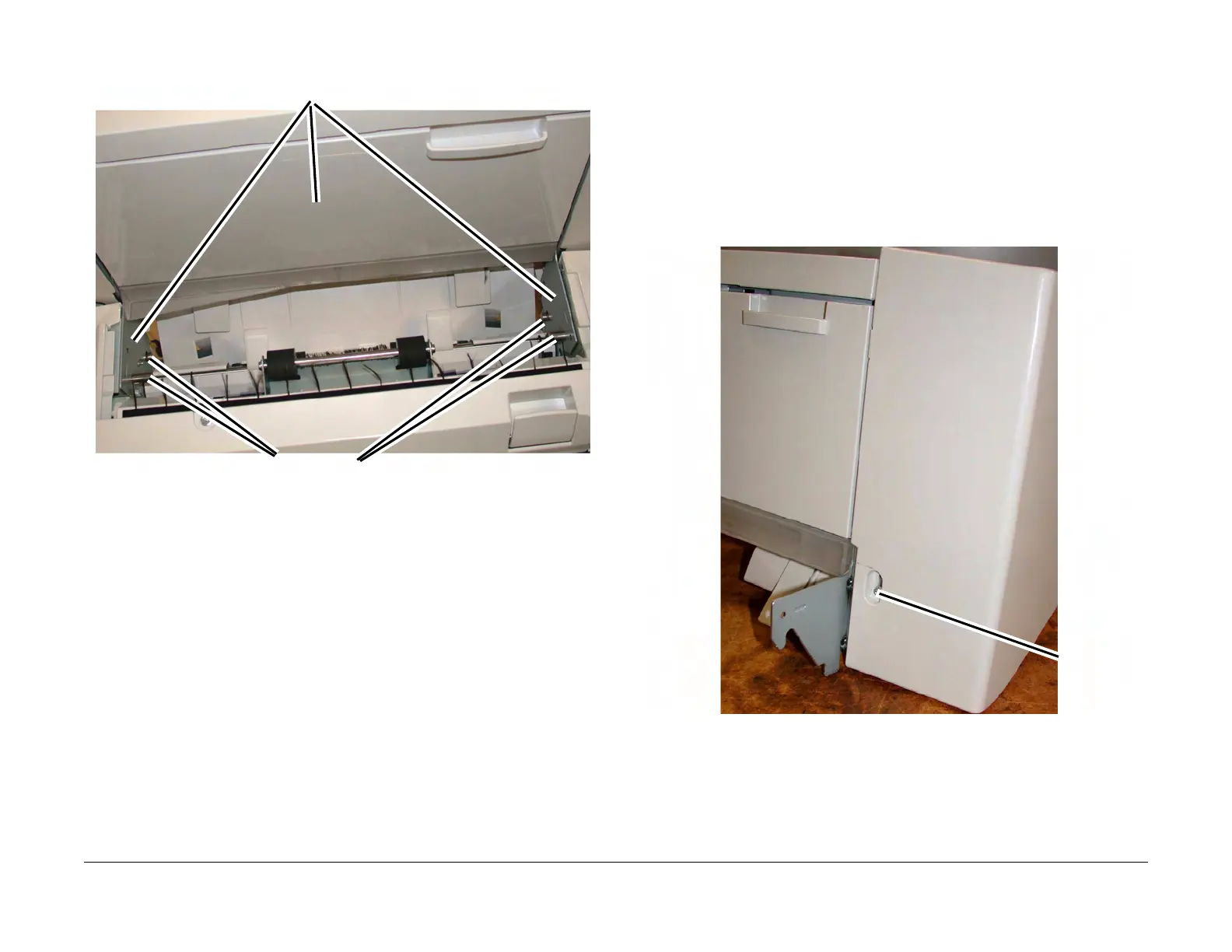

Figure 4 Removing the Booklet Maker Assembly (j0st41673)
Replacement
1. Reverse the removal procedure for replacement.
REP 16.3.3 Booklet Front Cover
Parts List on PL 23.17
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Booklet Maker Assembly from the Finisher. (REP 16.3.2)
2. Remove the Booklet Front Cover.
a. Remove the Screw (1). (Figure 1)
Figure 1 Removing the Booklet Front Cover (j0st41668)
Locating Pins
Booklet Maker Assembly
Screw
To Next Page
