February, 2008
4-120
WorkCentre 5225, 5230
REP 15.4.2, REP 15.6.1
Launch Version
Repairs and Adjustments

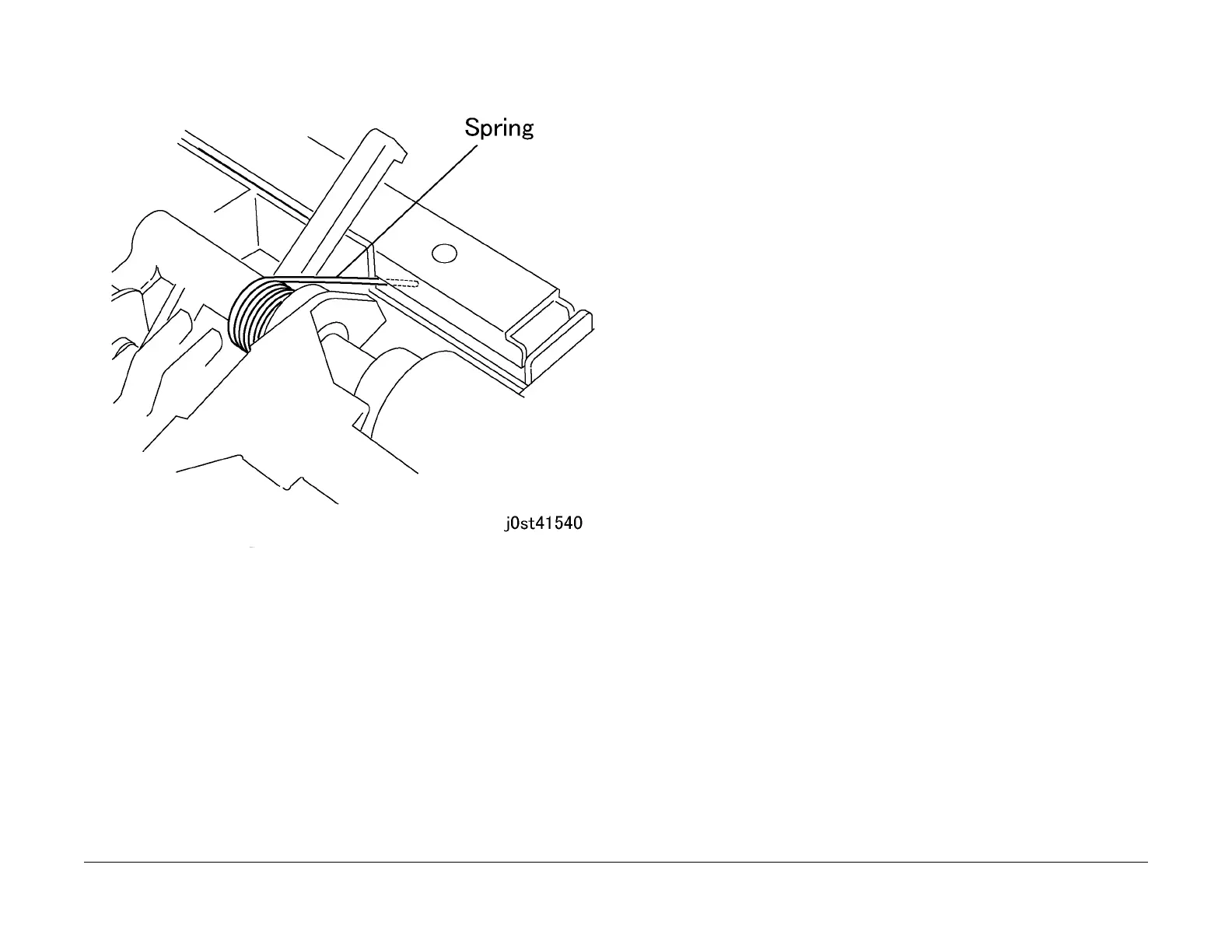

Figure 9 Hooking on the spring
REP 15.6.1 Nudger Roll, Feed Roll
Parts List on PL 15.6
Removal
NOTE: The Feed, Retard and Nudger Rolls must be replaced at the same time.
1. Open the Top Cover Assembly.
2. Remove the Feed Upper Chute. (Figure 1)
1. Remove the screw (1).
2. Remove the Feed Upper Chute.
3. Precautions during Installation:
A. Insert the Boss into the U-groove.
B. Insert the Tab into the Tab Slot.
To Next Page
