February, 2008
4-58
WorkCentre 5225, 5230
REP 10.1.1
Launch Version
Repairs and Adjustments

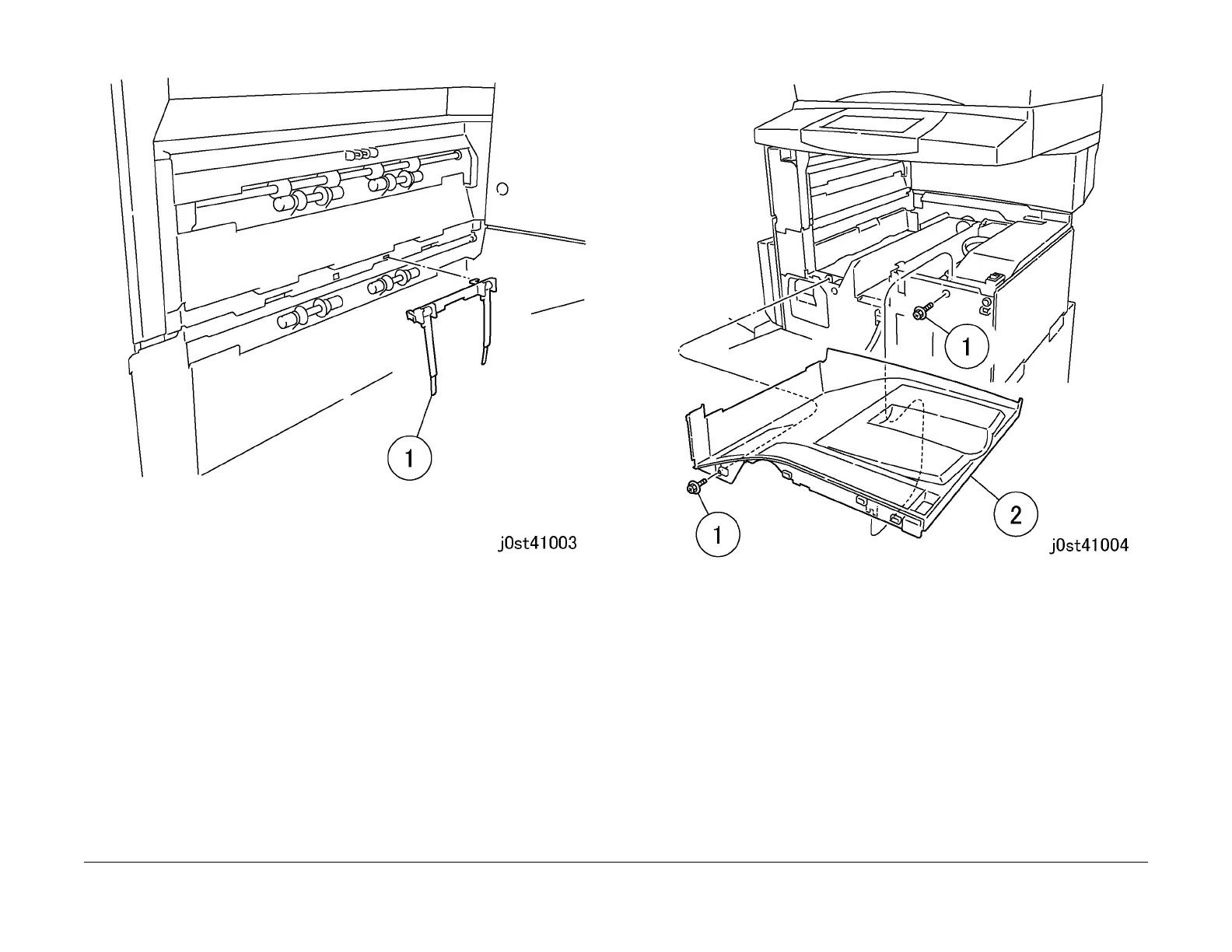

Figure 2 Removing the Paper Weight Assembly (j0st41003)
4. Remove the Top Cover Assembly. (Figure 3)
1.Remove the screws (x2).
2.Remove the Top Cover Assembly.
Figure 3 Removing the Top Cover Assembly (j0st41004)
Replacement
1. To install, carry out the removal steps in reverse order.
