February, 2008
5-102
WorkCentre 5225, 5230
PL 23.15
Launch Version
Parts List

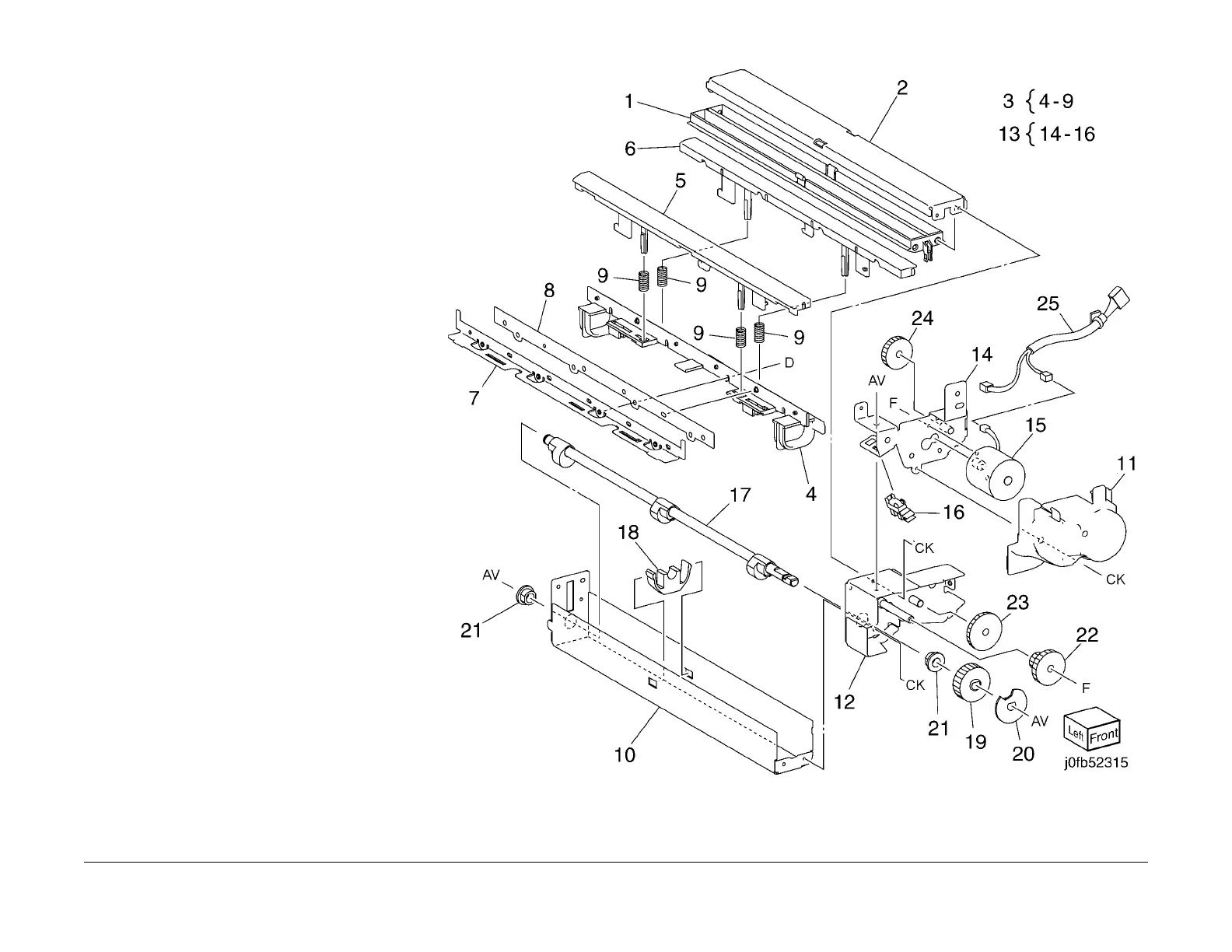

PL 23.15 Folder Assembly
Item Part Description
1 Upper Chute (P/O PL 23.14 Item
21)
2 Upper Plate (P/O PL 23.14 Item 21)
3 Knife Assembly (P/O PL 23.14 Item
21)
4 Blade Holder (P/O PL 23.15 Item 3)
5 Lower Holder 1 (P/O PL 23.15 Item
3)
6 Lower Holder 2 (P/O PL 23.15 Item
3)
7 Bracket (P/O PL 23.15 Item 3)
8 Blade (P/O PL 23.15 Item 3)
9 Spring (P/O PL 23.14 Item 2)
10 Frame (P/O PL 23.14 Item 21)
11 Front Cover (P/O PL 23.14 Item 21)
12 Bracket (P/O PL 23.14 Item 21)
13 Folder Knife Motor Assembly (P/O
PL 23.14 Item 21)
14 Motor Bracket (P/O PL 23.15 Item
13)
15 Folder Knife Motor (P/O PL 23.15
Item 13)
16 Folder Home Sensor (P/O PL 23.15
Item 13)
17 Cam Shaft Assembly (P/O PL
23.14 Item 21)
18 Guide (P/O PL 23.14 Item 21)
19 Gear (T28/T8) (P/O PL 23.14 Item
21)
20 Encoder (P/O PL 23.14 Item 21)
21 Bearing (P/O PL 23.14 Item 21)
22 Gear (T12/T27) (P/O PL 23.14 Item
21)
23 Gear (T12/T30) (P/O PL 23.14 Item
21)
24 Gear (T12/T51) (P/O PL 23.14 Item
21)
25 Wire Harness (P/O PL 23.14 Item
21)
