Xerox WorkCentre 5225

February, 2008
5-62
WorkCentre 5225, 5230
PL 15.3
Launch Version
Parts List

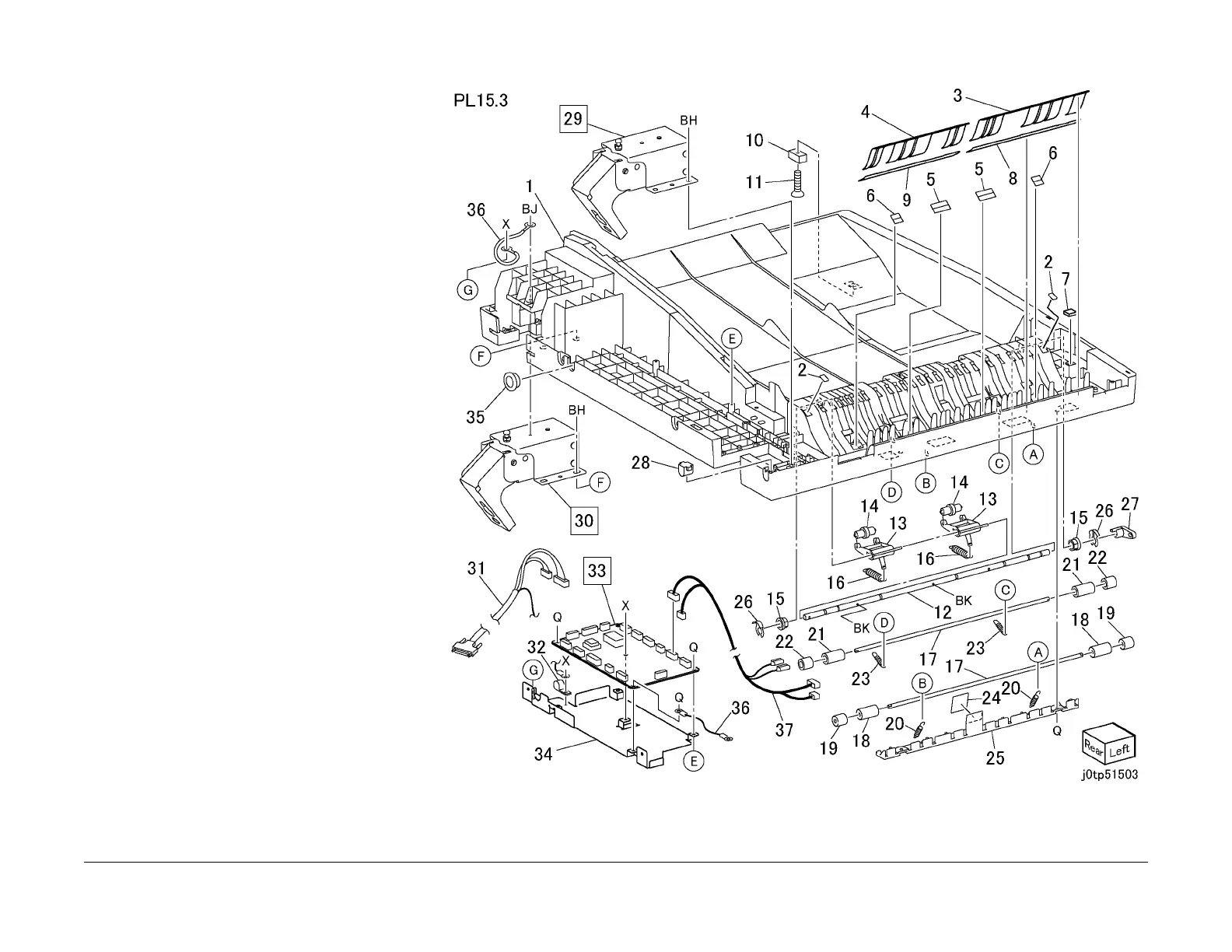

PL 15.3 DADF Base Cover
Item Part Description
1 – DADF Base Cover (P/O PL 15.2
Item 1)
2 – Gate Pad (P/O PL 15.2 Item 1)
3 – Seal (Chute-Front) (P/O PL 15.2
Item 1)
4 – Seal (Chute-Rear) (P/O PL 15.2
Item 1)
5 – Seal (Out Roll) (P/O PL 15.2 Item
1)
6 – Seal (Out Roll) (P/O PL 15.2 Item
1)
7 – Cushion (Solenoid) (P/O PL 15.2
Item 1)
8 – Seal (Registration-Front) (P/O PL
15.2 Item 1)
9 – Seal (Registration-Rear) (P/O PL
15.2 Item 1)
10 – Magnet (Interlock) (P/O PL 15.2
Item 1)
11 – Tapping Screw (P/O PL 15.2 Item
1)
12 – Shaft (P/O PL 15.2 Item 1)
13 – Holder (P/O PL 15.2 Item 1)
14 – Pinch Roll (Exit) (P/O PL 15.2 Item
1)
15 – Bearing (P/O PL 15.2 Item 1)
16 – Spring (P/O PL 15.2 Item 1)
17 – Shaft (P/O PL 15.2 Item 1)
18 – Pinch Roll (Registration-Plastics)
(P/O PL 15.2 Item 1)
19 – Pinch Roll (Registration-Plastics)
(P/O PL 15.2 Item 1)
20 – Spring (20mm) (P/O PL 15.2 Item
1)
21 – Pinch Roll (Out Roll-Rubber) (P/O
PL 15.2 Item 1)
22 – Pinch Roll (Out-Rubber) (P/O PL
15.2 Item 1)
23 – Spring (17mm) (P/O PL 15.2 Item
1)
24 – Pad (Sensor) (P/O PL 15.2 Item 1)
25 – Cover (P/O PL 15.2 Item 1)
26 028E94260 K-Clip
27 – Lever (Solenoid) (P/O PL 15.2 Item
1)
28 – Cap (P/O PL 15.2 Item 1)
29 036K91551 Left Counter Balance (REP 15.3.2)
30 036K91561 Right Counter Balance (REP
15.3.3)
31 117E27450 IIT-DADF Cable
32 – Clamp (P/O PL 15.2 Item 1)
33 960K32501 DADF PWB (REP 15.3.1)
34 – PWB Bracket (P/O PL 15.2 Item 1)
35 – Bush (P/O PL 15.2 Item 1)
36 – Earth Wire (P/O PL 15.2 Item 1)
37 962K19793 Wire Harness (Feeder Front)
