WorkCentre 5225, 5230
REP 16.2.13
Repairs and Adjustments
Launch Version
Figure 3 Removing the Compiler Tray screw (j0st41721.jpg)
NOTE: Notice the position and orientation of the Set Clamp Holders.

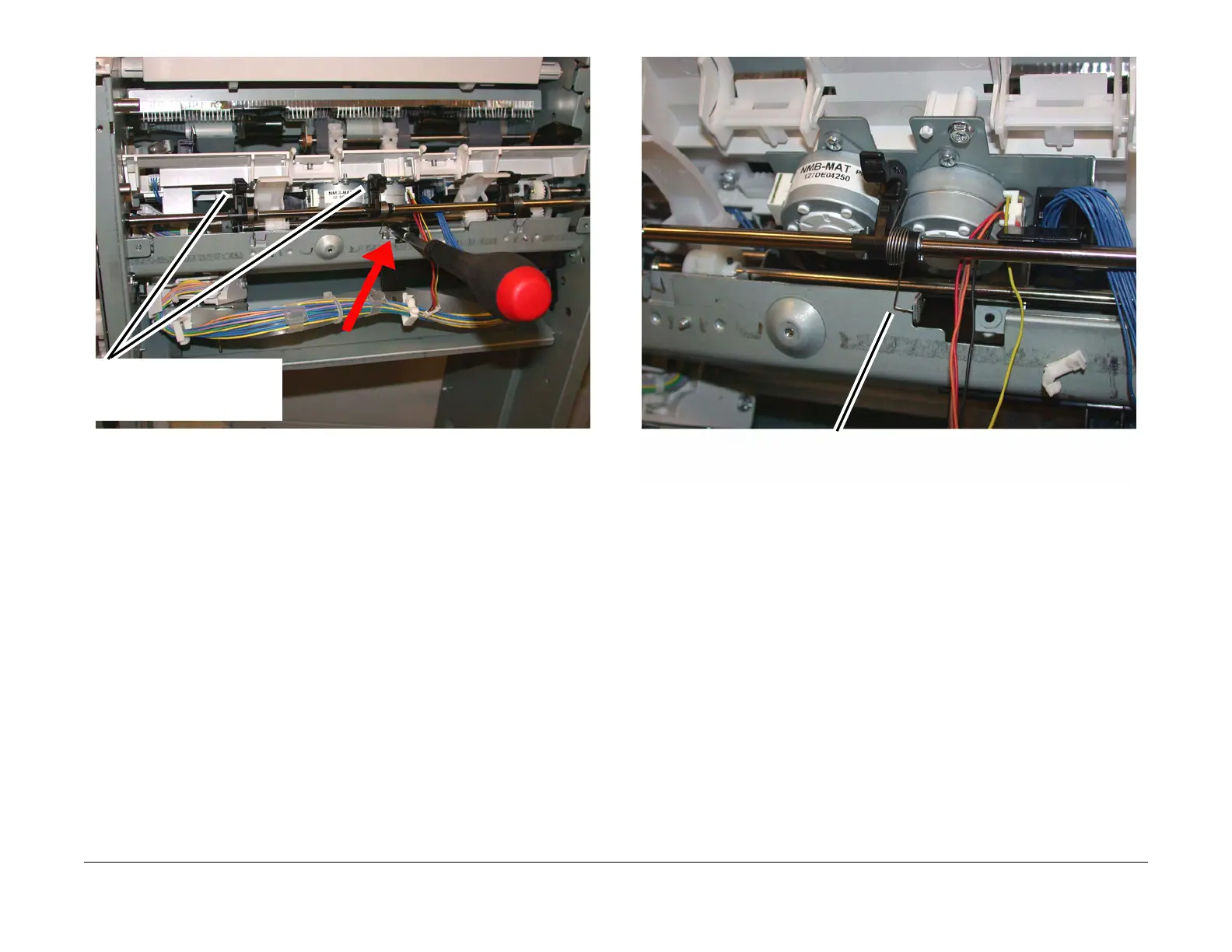

13. Disconnect the springs from the Set Clamp Holders (3). (Figure 4) Figure 4 Disconnecting the Set Clamp Holder springs (3) (j0st41727.jpg)
14. Remove the front E-ring and the bushing from the Set Clamp Shaft Assembly. (Figure 5)
NOTE: Notice the position of
the Set Clamp Holders
Disconnect spring from the
Holders (3)
