February, 2008
4-75
WorkCentre 5225, 5230
REP 11.5.2
Repairs and Adjustments
Launch Version
REP 11.5.2 Carriage Motor Assembly
Parts List on PL 11.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. For the DADF models, disconnect the IIT-DATA Cable. (Figure 1)
1. Disconnect the IIT-DATA Cable.

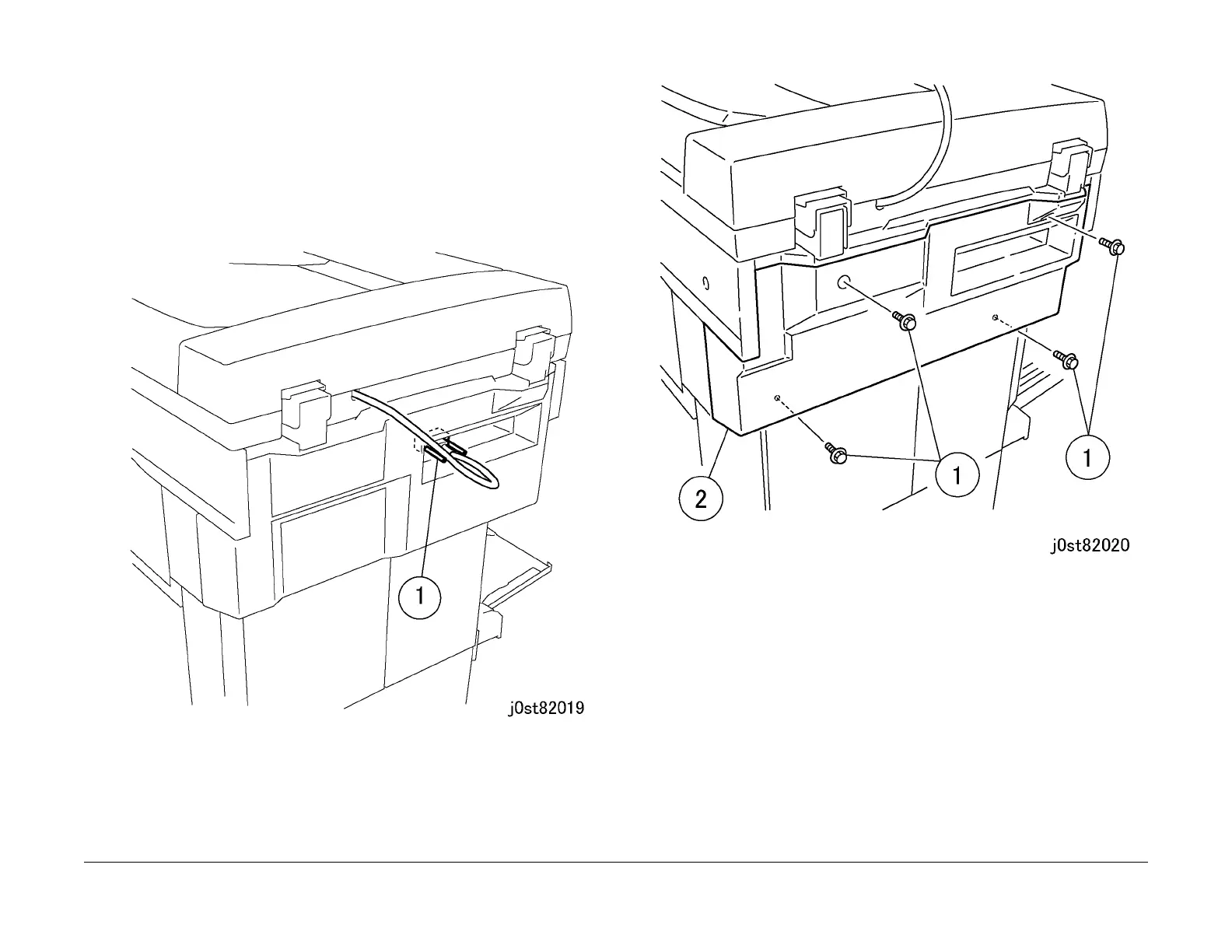

Figure 1 Disconnecting the cable (j0st82019)
2. Remove the Rear Upper Cover. (Figure 2)
1. Remove the screws (x4).
2. Remove the Rear Upper Cover.
Figure 2 Removing the Rear Upper Cover (j0st82020)
3. Disconnect the connector. (Figure 3)
1. Remove the spring.
2. Disconnect the connector.
To Next Page
