Xerox WorkCentre 5225

February, 2008
4-86
WorkCentre 5225, 5230
REP 12.2
Launch Version
Repairs and Adjustments

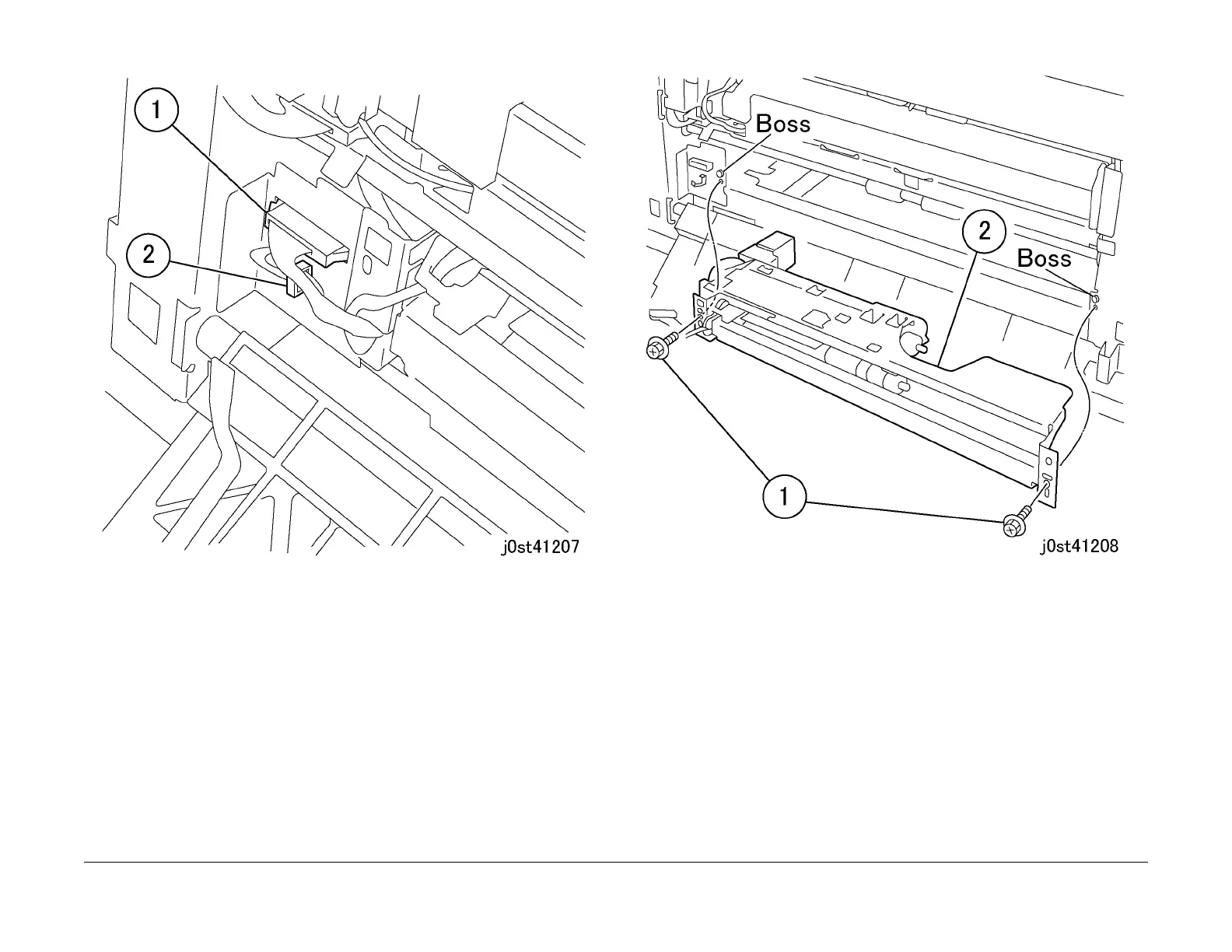

Figure 5 Disconnecting the connector (j0st41207)
8. Remove the Tray 4 Feeder. (Figure 6)
1. Remove the screws (x2).
2. Remove the Tray 4 Feeder.
Figure 6 Removing the Tray 4 Feeder (j0st41208)
Replacement
1. To install, carry out the removal steps in reverse order.
2. When replacing, enter Diagnostic mode. Clear the counter.
Tray 4 “Chain Link:954-803 Tray Feed Counter Tray4-1”
