February, 2008
4-101
WorkCentre 5225, 5230
REP 15.1.1
Repairs and Adjustments
Launch Version
REP 15.1.1 DADF
Parts List on PL 15.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
The DADF is a heavy component. Take care when lifting the DADF.

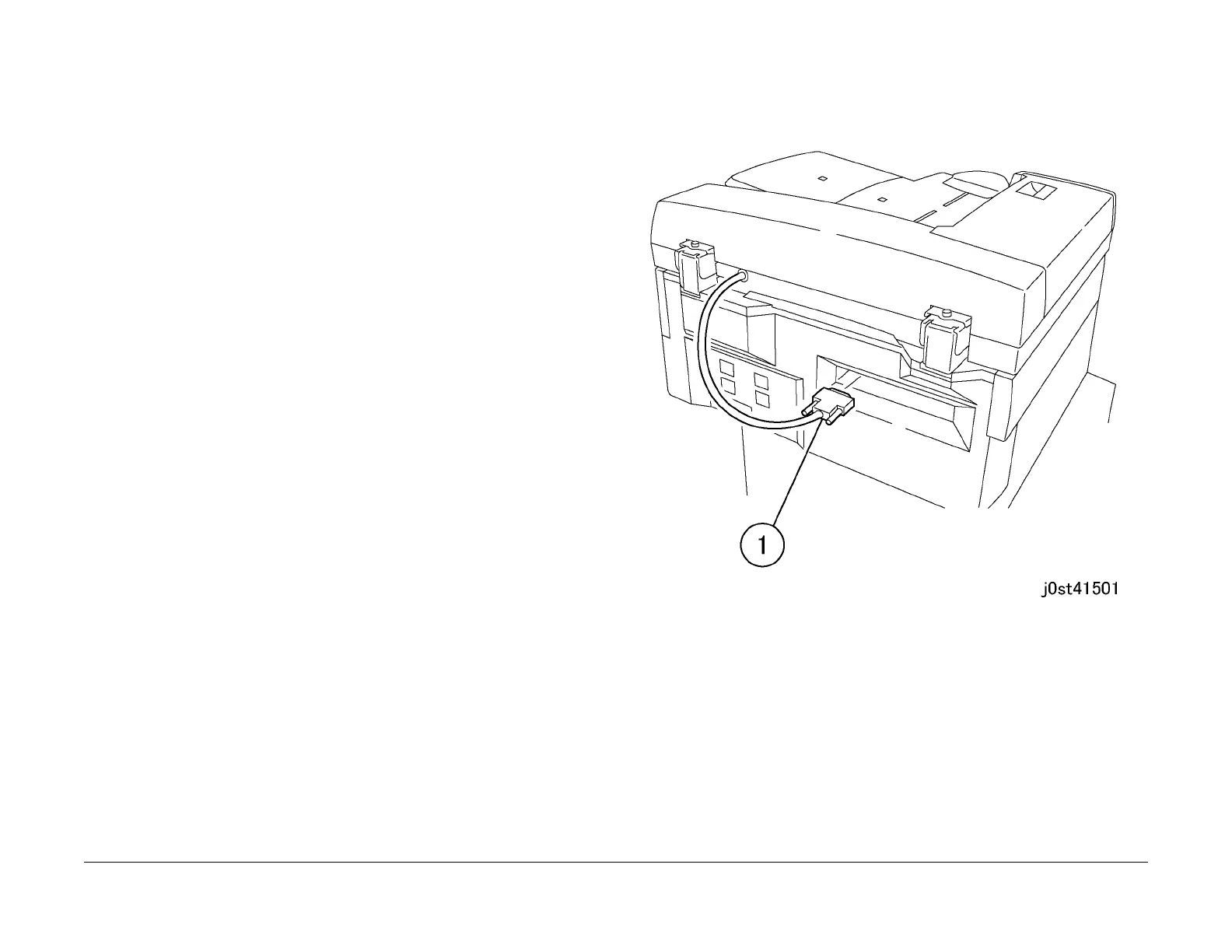

1. Disconnect the connector. (Figure 1)
1. Loosen the screws (x2) and disconnect the connector.
Figure 1 Disconnecting the connector
2. Remove the DADF. (Figure 2)
1. Remove the Knob Screws (x2).
2. Remove the DADF.
To Next Page
