Xerox WorkCentre 5225 Service Manual

February, 2008
4-190
WorkCentre 5225, 5230
REP 22.5.4
Launch Version
Repairs and Adjustments
4. Remove the Gear Pulley. (Figure 2)
(1)Remove E-Clip.
(2)Remove Gear.
(3)Remove Belt.
(4)Remove Flange.

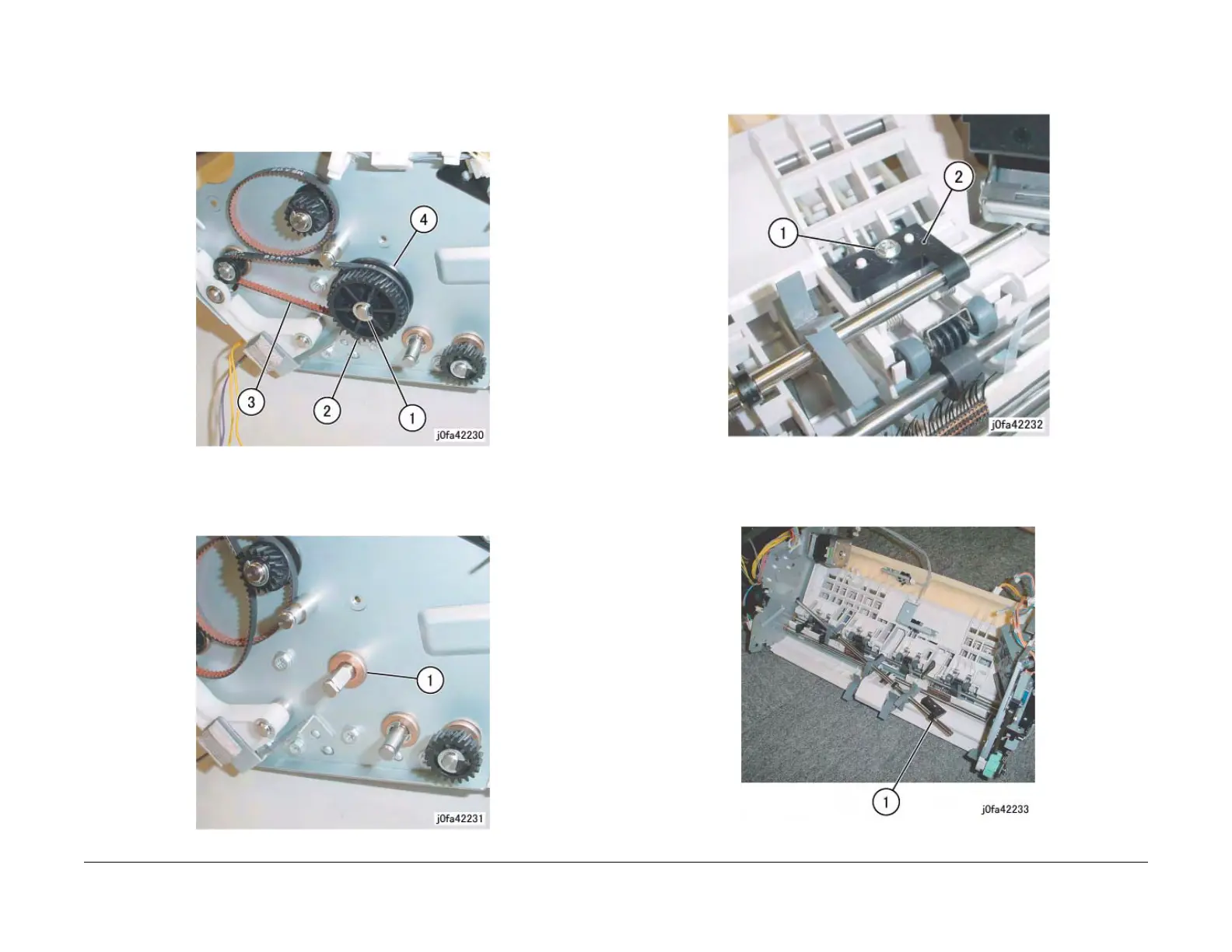

Figure 2 Removing the Gear Pulley (j0fa42293)
5. Remove the Bearing. (Figure 3)
(1)Remove Bearing.
Figure 3 Removing the Bearing (j0fa42294)
6. Remove the Support Bearing from the ENT Lower Chute Assembly. (Figure 4)
(1)Remove Tapping Screw.
(2)Remove Support Bearing (with Shaft still attached).
Figure 4 Removing the Support Bearing (j0fa42232)
7. Remove the Main Paddle Shaft Assembly. (Figure 5)
(1)Remove Main Paddle Shaft Assembly.
Figure 5 Removing the Main Paddle Shaft Assembly (j0fa42233)
