Xerox WorkCentre 5225

February, 2008
5-71
WorkCentre 5225, 5230
PL 18.2
Parts List
Launch Version

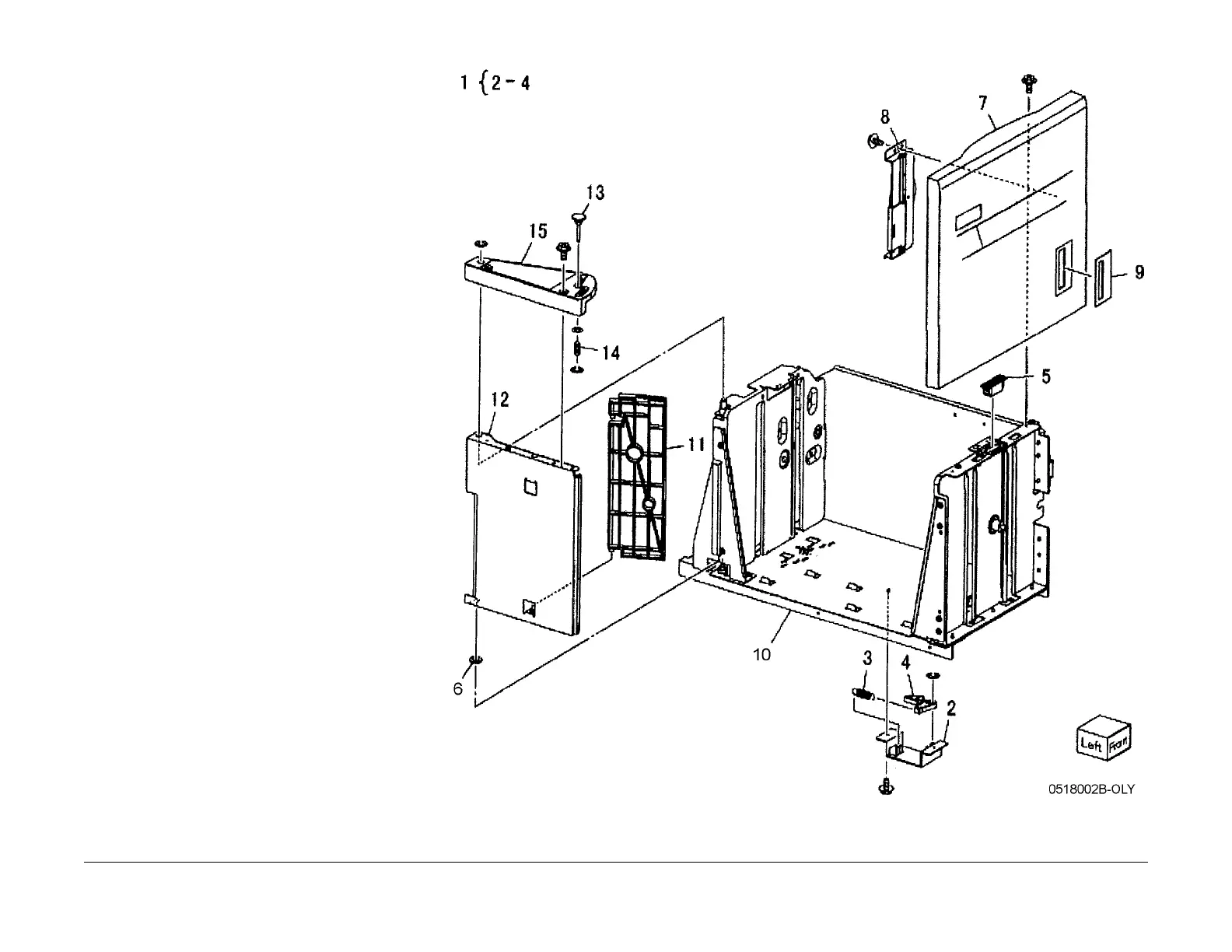

PL 18.2 HCF Tray 6 (1 of 2)
Item Part Description
1 – Tray Latch Assembly (Not Spared)
2 003K13591 Tray Latch
3 – Spring (P/O PL 18.2 Item 1)
4 – Latch Lever (P/O PL 18.2 Item 1)
5 – Magnet (P/O PL 18.1 Item 5)
6 – Wave Washer (P/O PL 18.1 Item 5)
7 – Front Cover (P/O PL 18.1 Item 5)
8 – Gear Bracket (Not Spared)
9 – Label (Gauge) (P/O PL 18.1 Item 5)
10 – Frame (P/O PL 18.1 Item 5)
11 – Plate (P/O PL 18.1 Item 5)
12 – Bracket (P/O PL 18.1 Item 5)
13 – Pin (P/O PL 18.1 Item 5)
14 – Spring (P/O PL 18.1 Item 5)
15 – Top Plate (P/O PL 18.1 Item 5)
