February, 2008
7-44
WorkCentre 5225, 5230
IOT Wirenets
Launch Version
Wiring Data
+5VDC Standby Wirenets

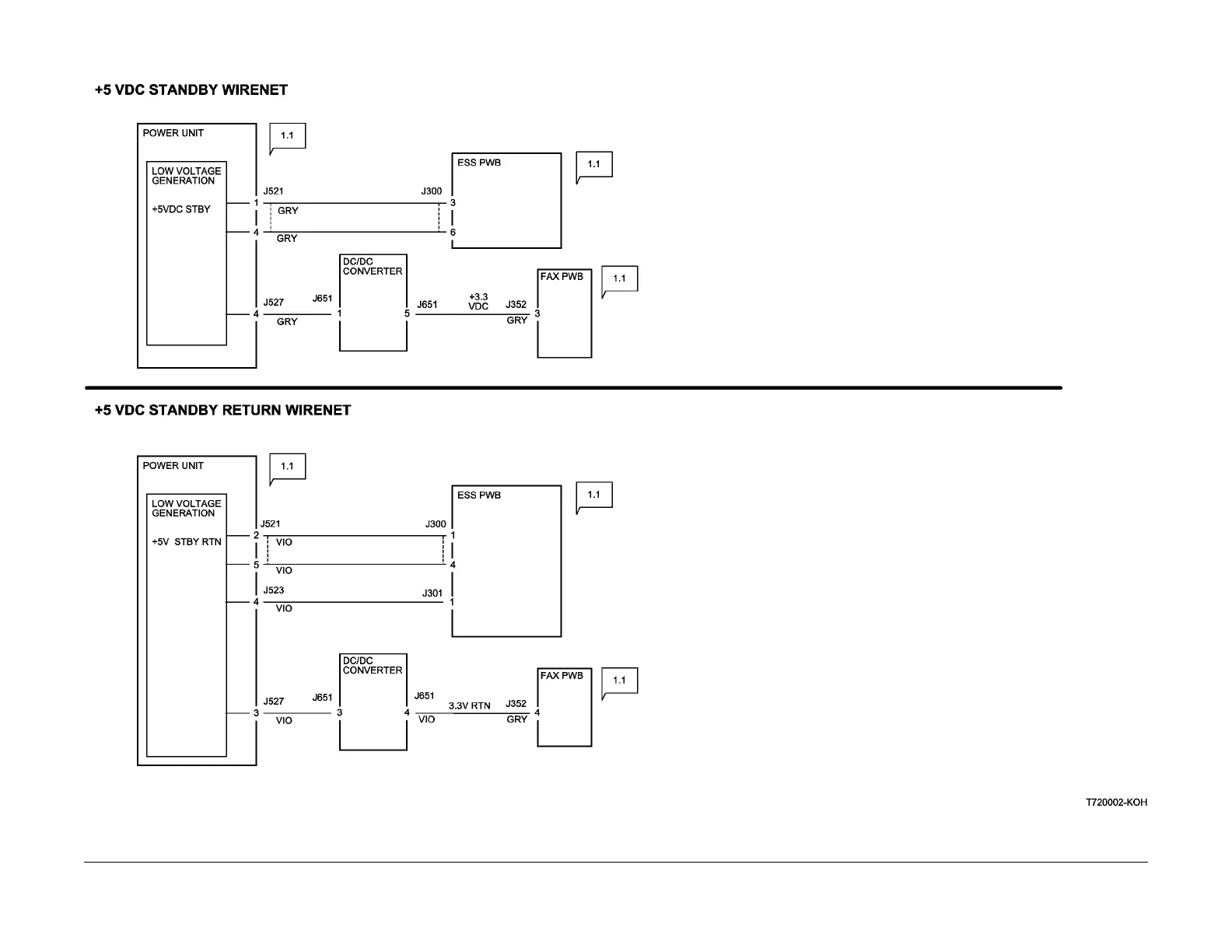

Figure 2 +5VDC Standby Wirenets
