Xerox WorkCentre 5225 Service Manual

February, 2008
4-26
WorkCentre 5225, 5230
REP 4.2.1
Launch Version
Repairs and Adjustments

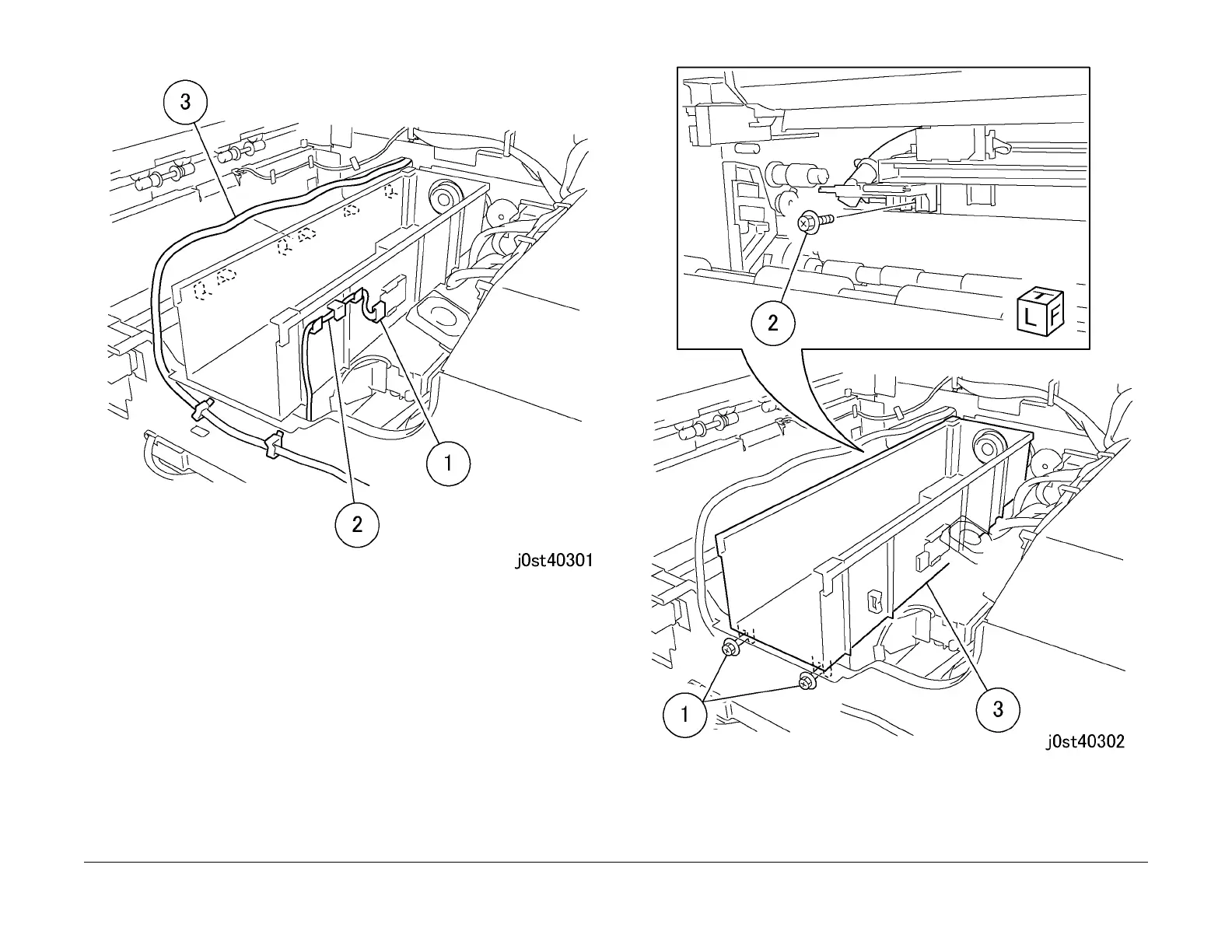

Figure 2 Disconnecting the connector (j0st40301)
4. Remove the Toner Box. (Figure 3)
1.Loosen the screws (x2).
2.Remove the screw on the hose.
3.Remove the Toner Box.
Figure 3 Removing the Toner Box (j0st40302)
5. Remove the Dispense Motor. (Figure 4)
1.Disconnect the connector.
2.Remove the screws (x3).
