Xerox WorkCentre 5225 Service Manual

February, 2008
4-99
WorkCentre 5225, 5230
REP 13.6.1
Repairs and Adjustments
Launch Version

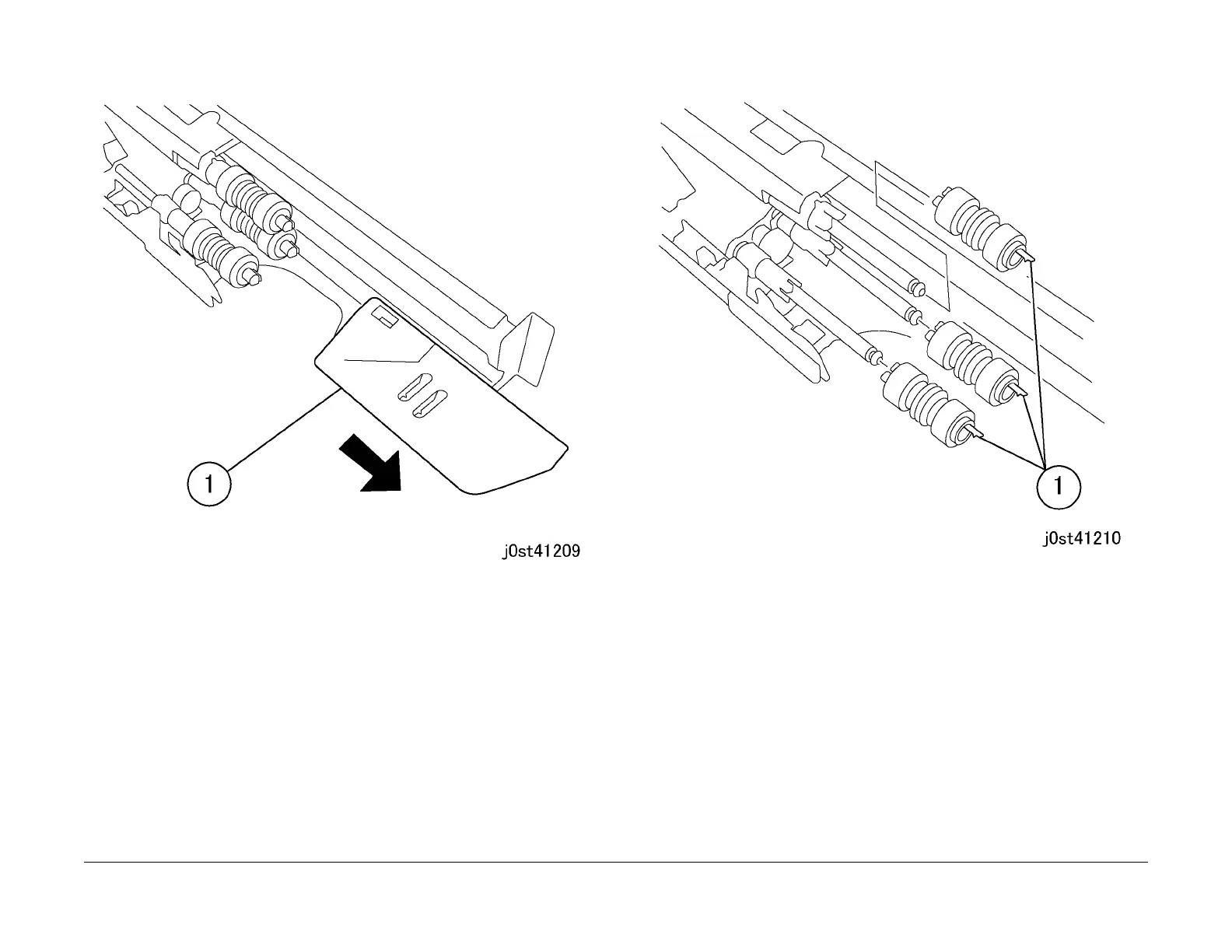

Figure 1 Moving the Front Chute (j0st41209)
3. Remove the Feed/Retard/Nudger Roll. (Figure 2)
1. Release the hooks (x3) to remove the Feed Roll/Retard/Nudger Roll.
Figure 2 Removing the Feed/Retard/Nudger Roll (j0st41210)
Replacement
1. To install, carry out the removal steps in reverse order.
2. When replacing, enter Diag. mode. Clear the counter.
Tray 3 “Chain Link:954-802 Tray Feed Counter Tray3-1]”

Xerox WorkCentre 5225 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Internal memory	No MB
Type	Digital copier
