February, 2008
4-207
WorkCentre 5225, 5230
REP 22.9.2
Repairs and Adjustments
Launch Version

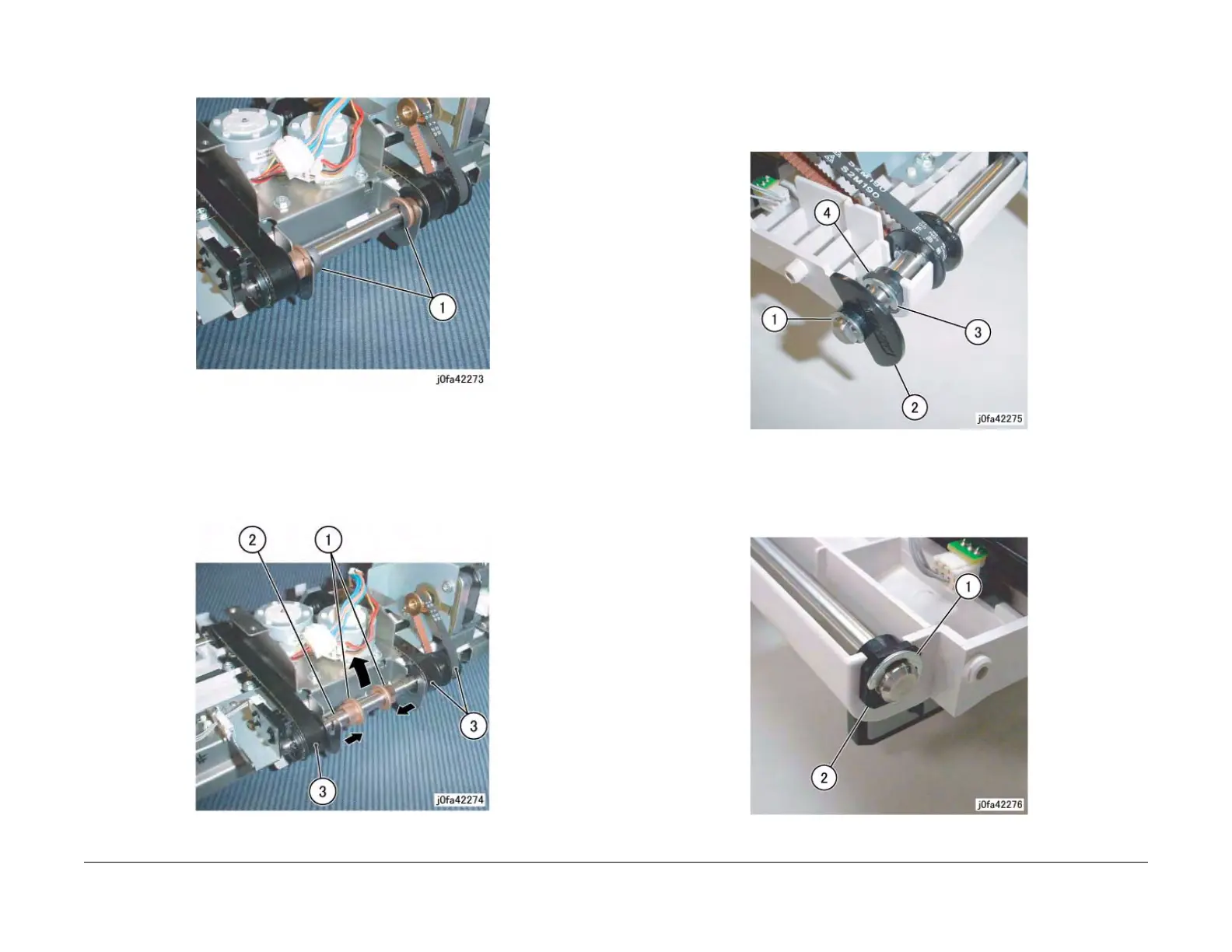

4. Remove the KL-Clips from the Eject Shaft. (Figure 2)
(1)Remove KL-Clips (2).
Figure 2 Removing the KL-Clips (j0fa42273)
5. Remove the Eject Shaft from the Front/Rear Tamper Motor Assembly. (Figure 3)
(1)Move Bearings (2) in the direction of the arrows.
(2)Remove Eject Shaft in the direction of the arrow.
(3)Remove Belt from Pulley.
Figure 3 Removing the Eject Shaft (j0fa42274)
6. Remove the Actuator and the Bearing. (Figure 4)
(1)Remove E-Clip.
(2)Remove Actuator.
(3)Remove E-Clip.
(4)Remove Bearing.
Figure 4 Removing the Actuator and Bearing (j0fa42275)
7. Remove the Bearing. (Figure 5)
(1)Remove E-Clip.
(2)Remove Bearing.
Figure 5 Removing the Bearing (j0fa42276)
To Next Page
