February, 2008
4-210
WorkCentre 5225, 5230
REP 22.9.4
Launch Version
Repairs and Adjustments

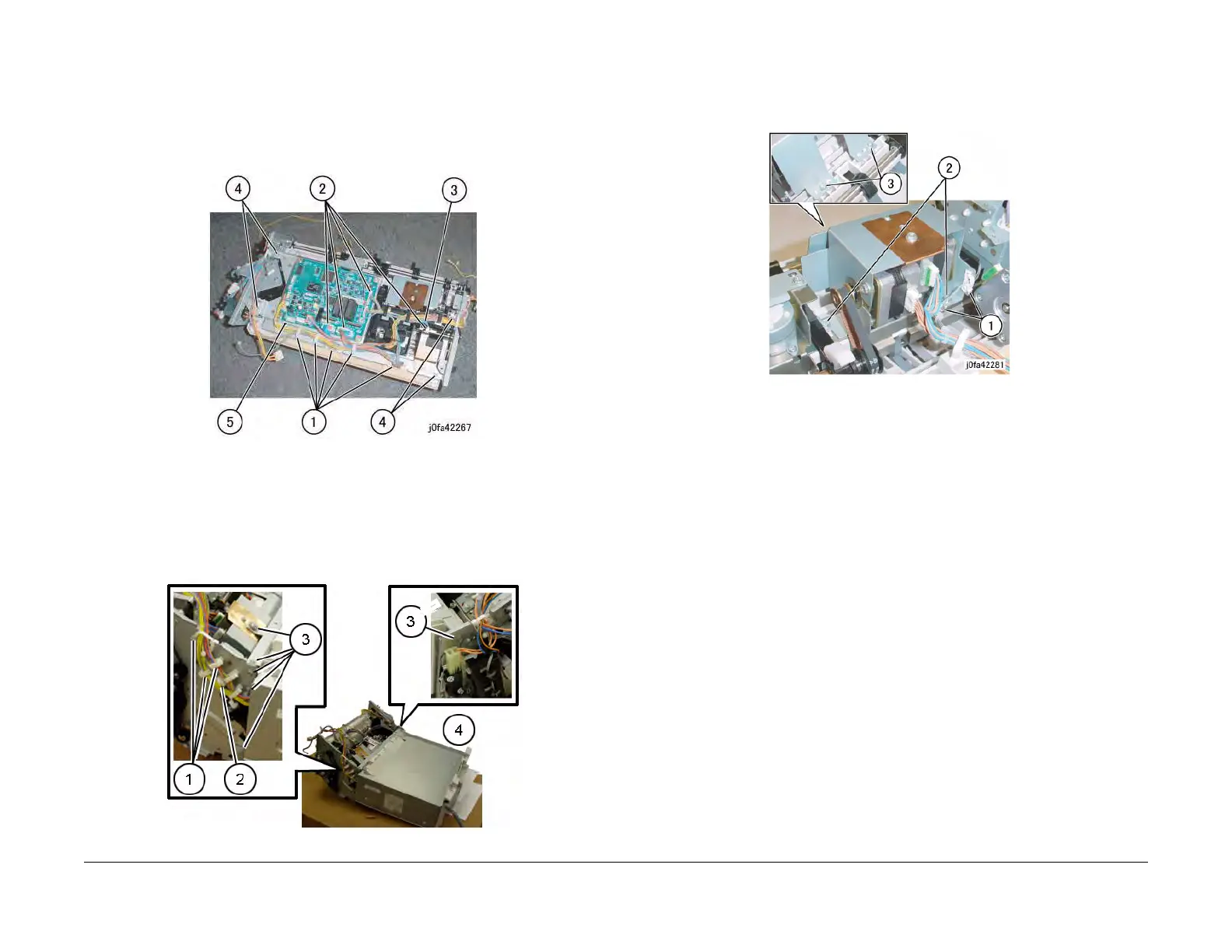

7. Remove the Bottom Plate. (Figure 2)
(1)Release Clamps (5) and remove the wires.
(2)Disconnect Connectors (8).
(3)Remove wires from Hooks (4).
(4)Remove Screws (4).
(5)Remove Bottom Plate.
Figure 2 Removing the Bottom Plate (j0fa42267)
8. Remove the Stacker Tray. (Figure 3)
(1)Release wires from Clamps (5).
(2)Disconnect the Connector.
(3)Remove Screws (5).
(4)Remove the Stacker Tray.
Figure 3 Removing the Stacker Tray (af422107)
9. Remove the screws securing the Eject/Set Clamp Motor Assembly. (Figure 4)
(1)Release Clamps (2) and remove the wires.
(2)Remove Screws (2).
(3)Remove Tapping Screws (2).
Figure 4 Removing Screws (j0fa42281)
