Xerox WorkCentre 5225 Service Manual

February, 2008
4-215
WorkCentre 5225, 5230
REP 22.10.1
Repairs and Adjustments
Launch Version

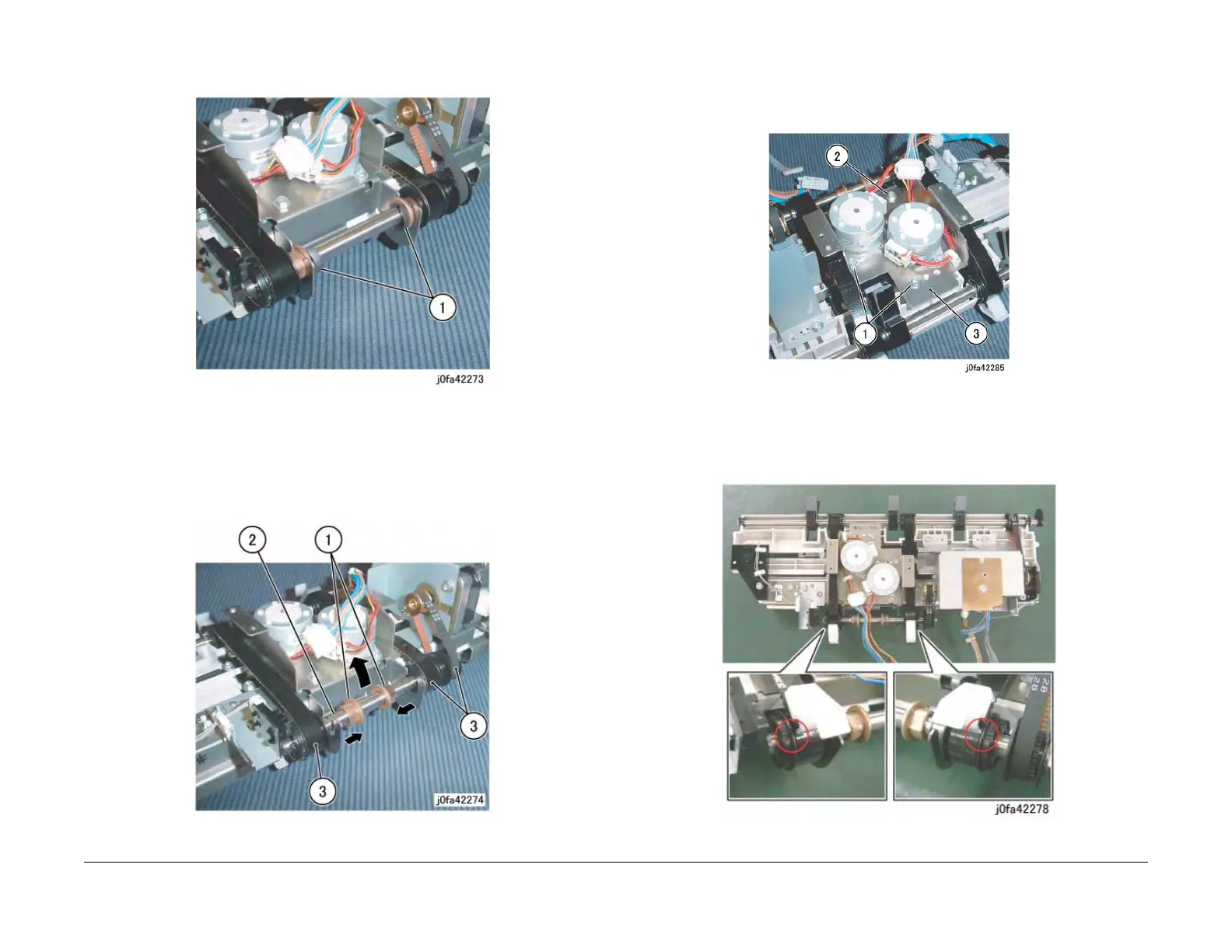

4. Remove the KL-Clips from the Eject Shaft. (Figure 2)
(1)Remove KL-Clips (2).
Figure 2 Removing the KL-Clips (j0fa42273)
5. Remove the Eject Shaft from the Front/Rear Tamper Motor Assembly. (Figure 3)
(1)Move Bearings (2) in the direction of the arrows.
(2)Remove Eject Shaft in the direction of the arrow.
(3)Remove the Belts from the Pulleys.
Figure 3 Removing the Eject Shaft (j0fa42274)
6. Remove the Front/Rear Tamper Motor Assembly. (Figure 4)
(1)Remove Tapping Screws (2).
(2)Remove Screw.
(3)Remove Front/Rear Tamper Motor Assembly.
Figure 4 Removing the Front/Rear Tamper Motor Assembly (j0fa42285)
Replacement
1. Reverse the removal procedure for replacement.
2. Install and align the Eject Belts with the marks on the Pulleys. (Figure 5)
Figure 5 Installing the Eject Belts (j0fa42278)
