February, 2008
4-220
WorkCentre 5225, 5230
REP 22.10.4
Launch Version
Repairs and Adjustments

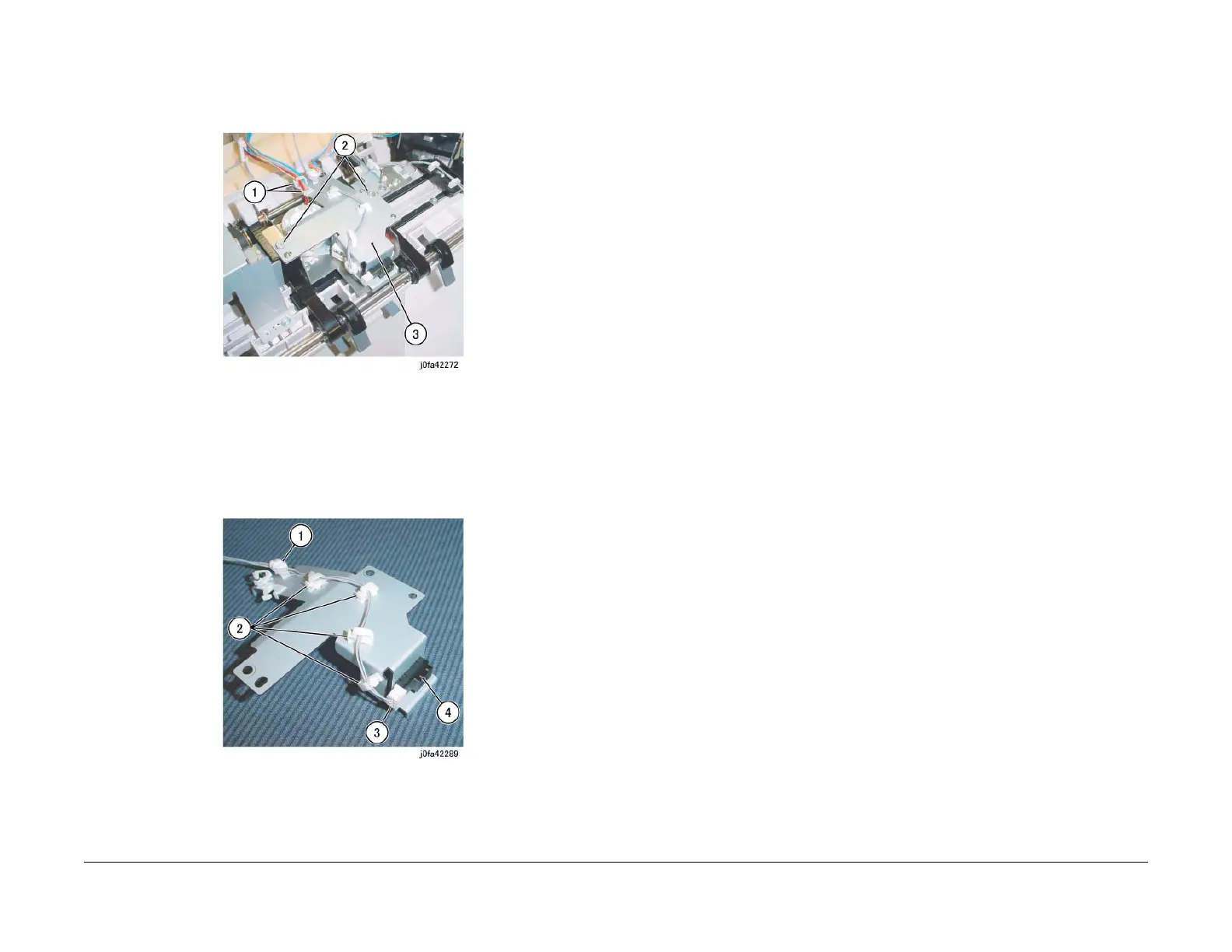

9. Remove the Bracket Assembly. (Figure 4)
(1)Release Clamps (2) and remove the wires.
(2)Remove Screws (2).
(3)Remove Bracket Assembly.
Figure 4 Removing the Bracket Assembly (j0fa42272)
10. Remove the Stack Height Sensor. (Figure 5)
(1)Remove Clamp.
(2)Release Clamps (4) and remove the wires.
(3)Disconnect Connector.
(4)Remove Stack Height Sensor from the bracket.
Figure 5 Removing the Stack Height Sensor (j0fa42289)
Replacement
1. Reverse the removal procedure for replacement.
