Yamaha F115A - POWER TRIM AND TILT SYSTEM

3-16
E
INSP
ADJ
POWER UNIT/POWER TRIM AND TILT SYSTEM
14. Loosen:
• Timing belt tensioner
15. Remove:
• Driven sprockets
• Timing belt
16. Tighten:
• Timing belt tensioner
17. Install:
• Cylinder head cover
• Driven sprockets
• Timing belt
• Spark plugs
18. Connect:
• Vacuum hose
• Ventilation hose
• Fuel hoses
• Spark plug leads
19. Install:
• Spark plug cap cover
• Flywheel magneto cover
POWER TRIM AND TILT SYSTEM 3

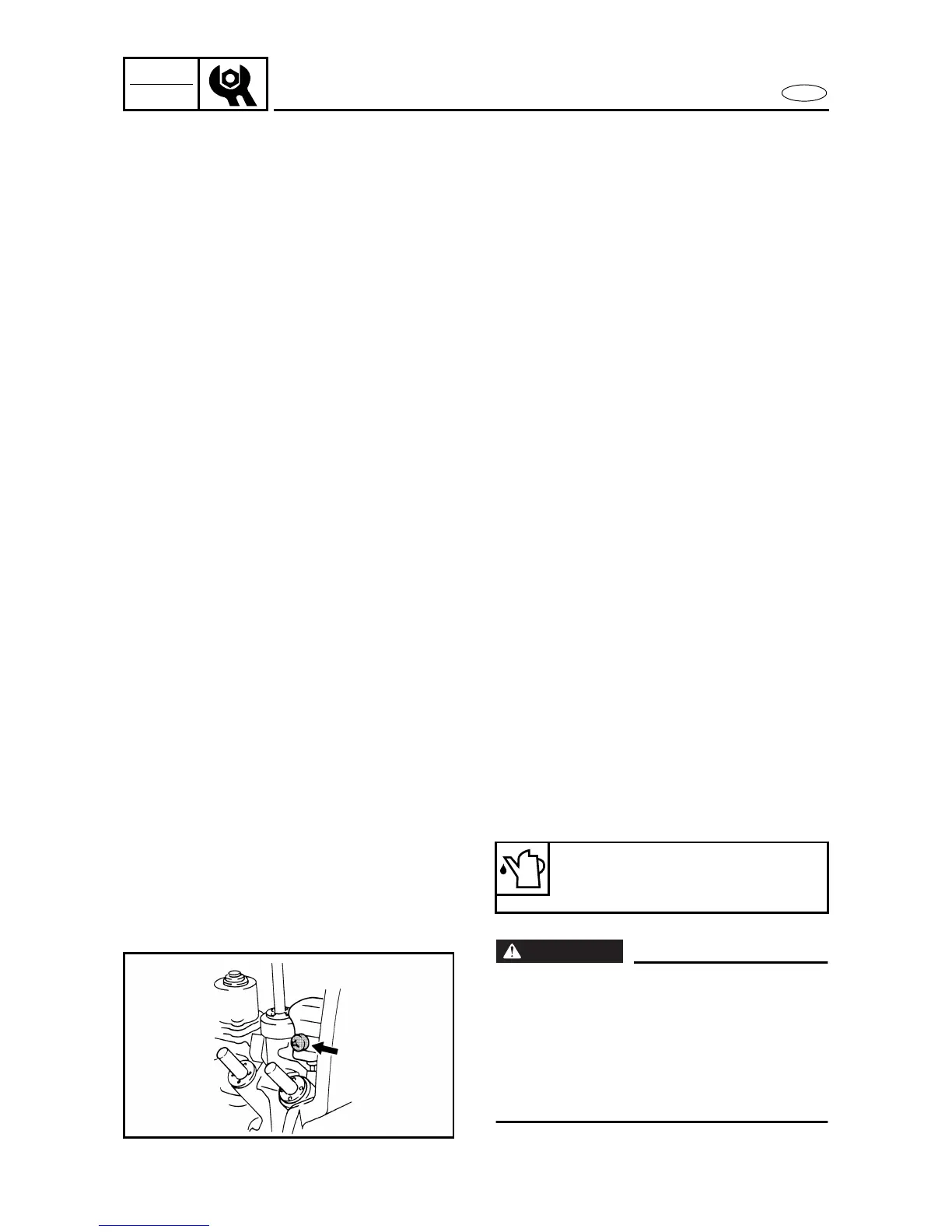

CHECKING THE POWER TRIM AND
TILT FLUID LEVEL
3
Check:
• Power trim and tilt fluid level
Level is low → Add power trim and tilt
fluid to the proper level.
WARNING
When removing the power trim and tilt res-
ervoir cap, the power trim and tilt fluid may
spurt out due to internal pressure. There-
fore, fully tilt up the outboard (the tilt ram
assembly fully extended) and then slowly
remove the power trim and tilt reservoir
cap.
Recommended power trim and
tilt fluid
ATF Dexron II
