PROPELLER SHAFT HOUSING ASSEMBLY
(COUNTER ROTATION MODELS)

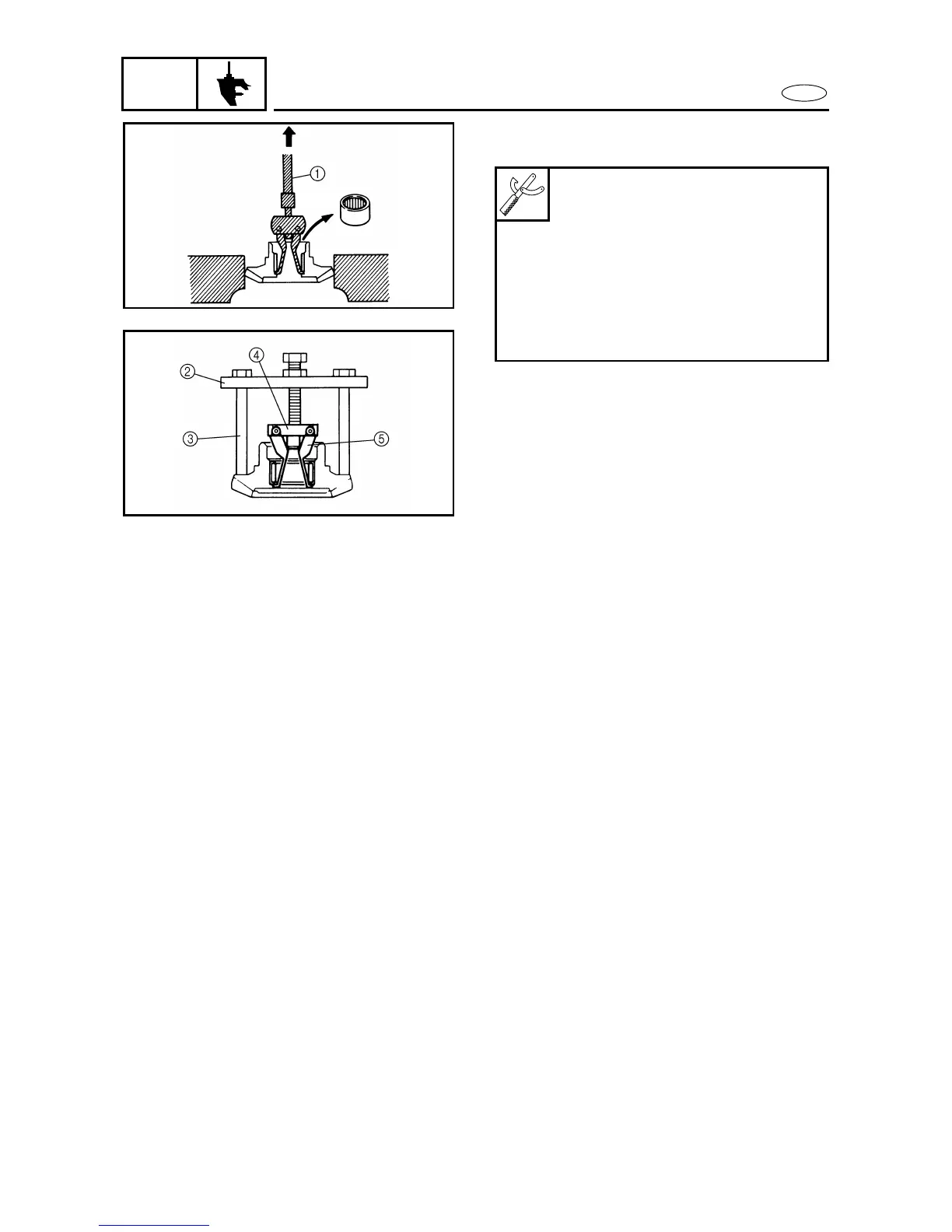

2. Remove:
• Needle bearing
Å For USA and Canada
ı For worldwide
Slide hammer............................ 1
YB-06096
Guide plate................................ 2
90890-06501
Guide plate stand ..................... 3
90890-06538
Bearing puller............................ 4
90890-06535
Small universal claws .............. 5
90890-06536
6550
Å
6560
ı
CHECKING THE FORWARD GEAR 6
Check:
• Teeth
• Dogs
Damage/wear → Replace.
CHECKING THE BEARING 6
Check:
• Bearing
Pitting/rumbling → Replace.
CHECKING THE PROPELLER SHAFT
HOUSING
6
Check:
• Propeller shaft housing
Cracks/damage → Replace.
CHECKING THE DOG CLUTCH 6
Check:
• Dog clutch
Damage/wear → Replace.
CHECKING THE PROPELLER SHAFTS 6
Check:
• Propeller shafts
Damage/wear → Replace.
