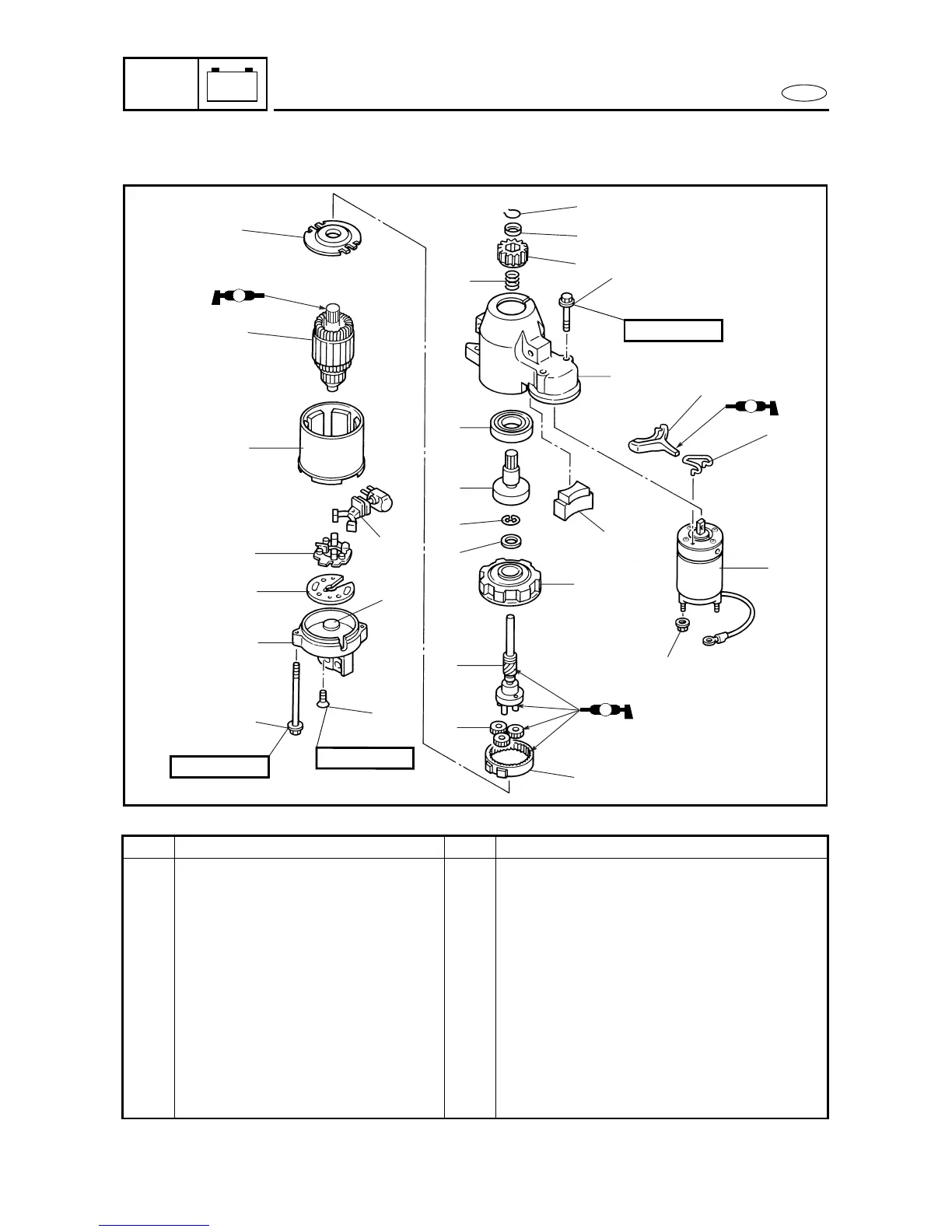

DISASSEMBLING/ASSEMBLING THE STARTER MOTOR 8
Order Job/Part Q’ty Remarks
Starter motor Refer to “IGNITION COILS AND STARTER
MOTOR” on page 5-14.
1 Nut 1
2 Bolt 2
3 Relay (magnetic switch) 1
4 Rubber dust 1
5 Spring 1
6 Starter motor pinion clip 1
7 Starter motor pinion stopper 1
8 Starter motor pinion 1
9 Spring 1
Continued on next page.
3
1
5
20
29
25
4
24
22
21
2
28
27
23
26
8
6
7
19
18
12
17
16
15
13
14
11
10
4 × 14 mm
6 × 120 mm
6 × 52 mm
9
A
A
A
8380
To Next Page
