Yamaha F115A - Disassembling;Assembling the Swivel Bracket Assembly

7-27
BRKT
E
SWIVEL BRACKET ASSEMBLY
SWIVEL BRACKET ASSEMBLY
7

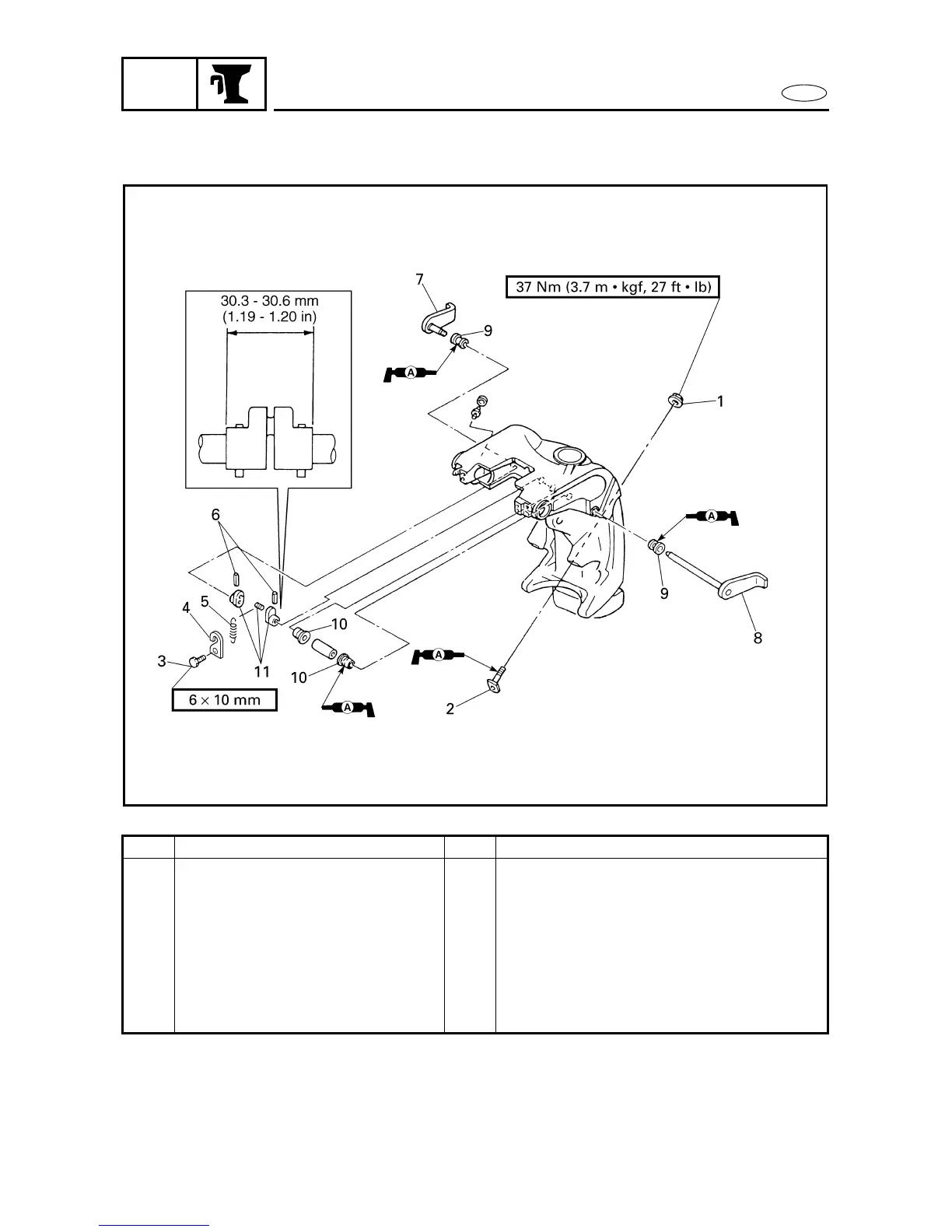

DISASSEMBLING/ASSEMBLING THE SWIVEL BRACKET ASSEMBLY
Order Job/Part Q’ty Remarks
Steering arm Refer to “STEERING ARM” on page 7-26.
1 Nut 2
2 Trim stopper 2
3 Bolt 1
4 Spring holder 1
5 Spring 1
6 Pin 2
Continued on next page.
