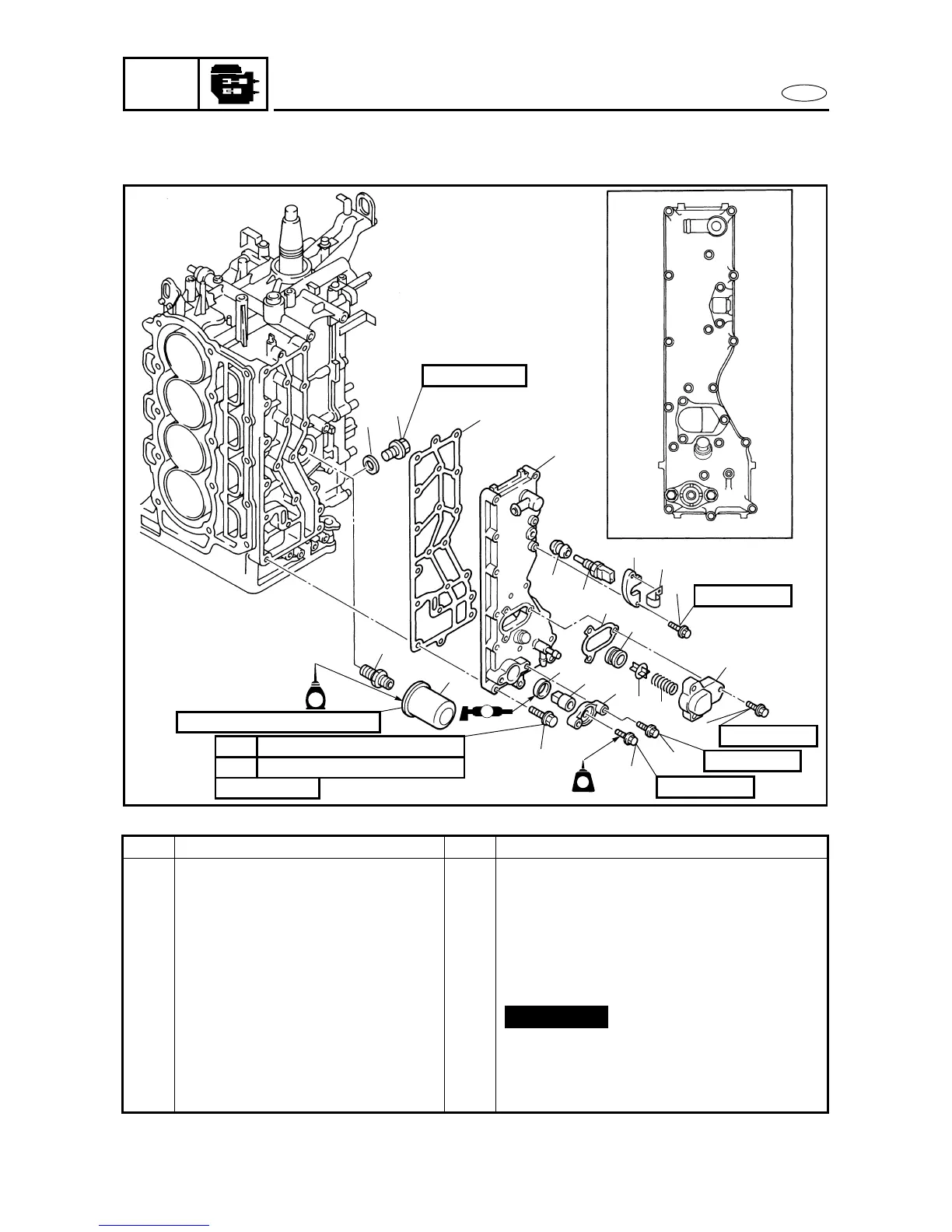

OIL FILTER AND EXHAUST COVER
OIL FILTER AND EXHAUST COVER
5
REMOVING/INSTALLING THE OIL FILTER AND EXHAUST COVER 4
Order Job/Part Q’ty Remarks
Camshafts and cylinder head
assembly
Refer to “CAMSHAFTS” on page 5-21
and “CYLINDER HEAD ASSEMBLY” on
page 5-23.
1 Oil filter 1
2 Oil filter stand 1
3 Bolt 18
4 Exhaust cover 1
5 Gasket 1
6 Bolt 3
7 Pressure control valve (PCV)
cover
1
