Yamaha F115A - Disassembling;Assembling the Upper Case Assembly

7-18
BRKT
E
UPPER CASE ASSEMBLY
7

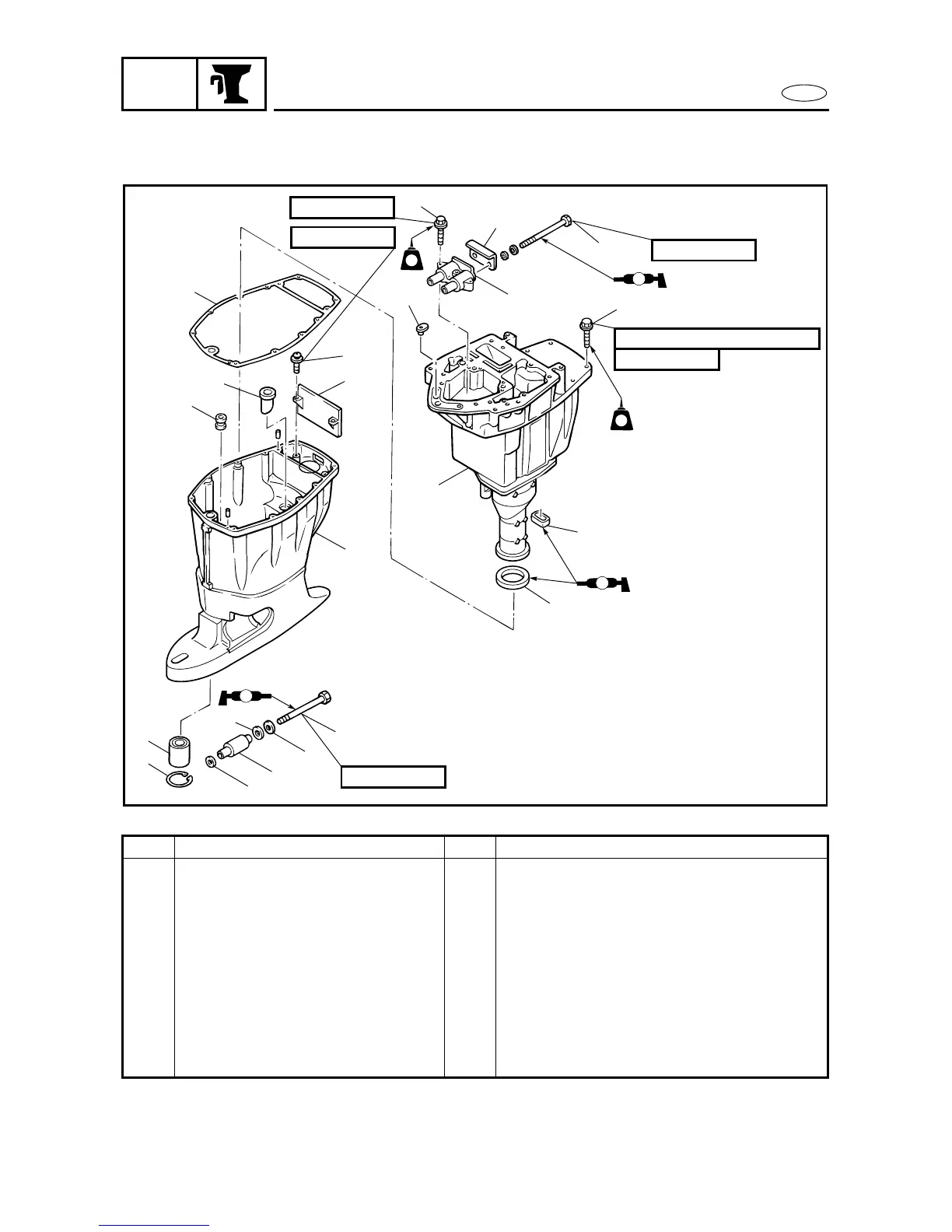

DISASSEMBLING/ASSEMBLING THE UPPER CASE ASSEMBLY
Order Job/Part Q’ty Remarks
1 Bolt 4
2 Upper mount rubber 1
3 Bolt 2
4 Plate 1
5 Bolt 2
6 Washer 2
7 Rubber 2
8 Lower mount rubber 2
9 Washer 2
Continued on next page.
1
2
15
3
4
5
6
7
9
8
10
13
14
11
16
18
19
21
20
22
17
12 × 193 mm
8 × 40 mm
8 × 45 mm
6 × 15 mm
14 × 235 mm
LTLT
LT
572
LTLT
LT
572
A
A
A
20 Nm (2.0 m • kgf, 14 ft • Ib)
