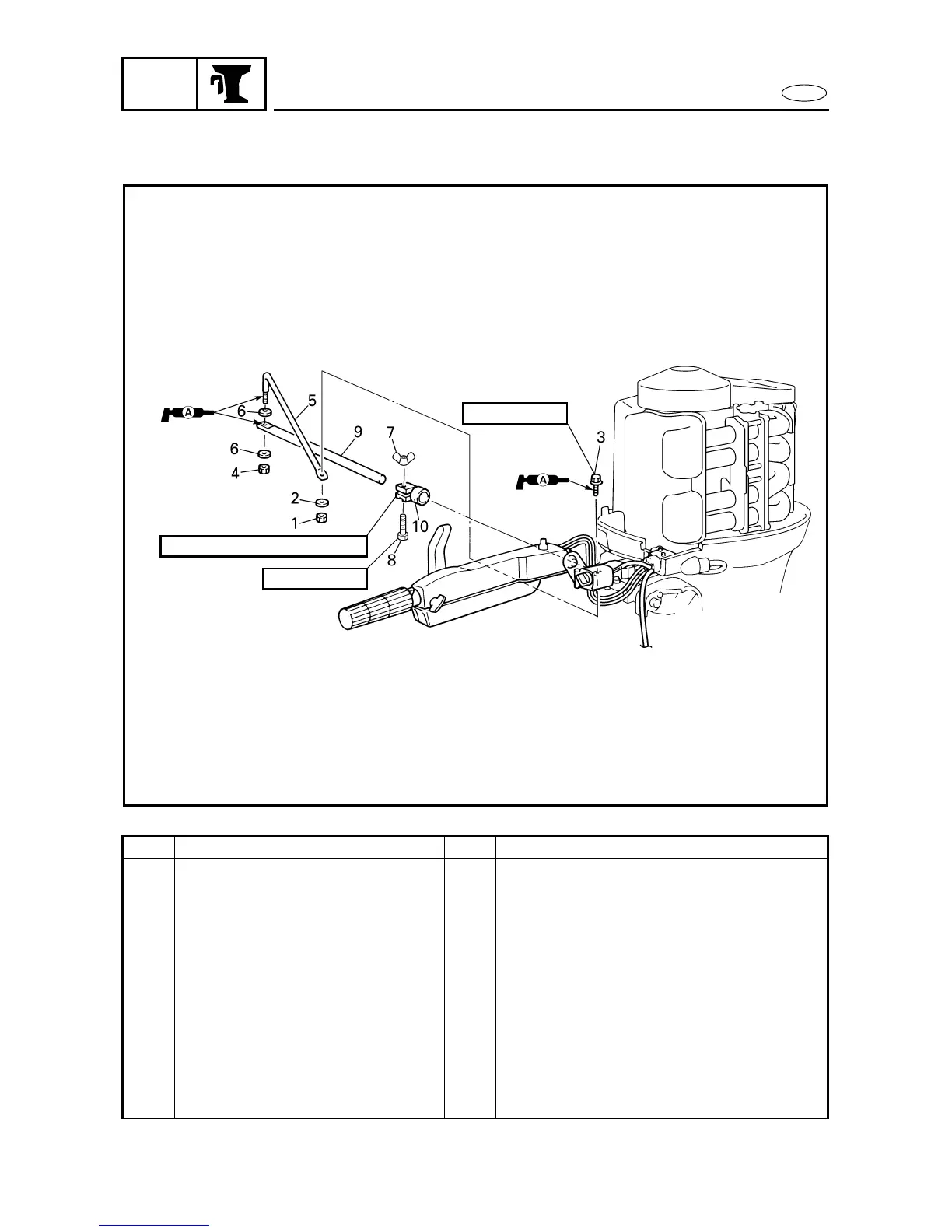

STEERING HANDLE (OPTION)

REMOVING/INSTALLING THE STEERING FRICTION

Order Job/Part Q’ty Remarks

1 Nut 1

2 Washer 1

3 Bolt 1

4 Nut 1

5 Link rod 1

6 Washer 2

7 Wing nut 1

8 Bolt 1

9 Friction rod 1

10 Friction piece 1

For installation, reverse the removal

procedure.

7010

6 × 35 mm

13 Nm (1.3 m • kgf, 9.4 ft • Ib)

8 × 30 mm
