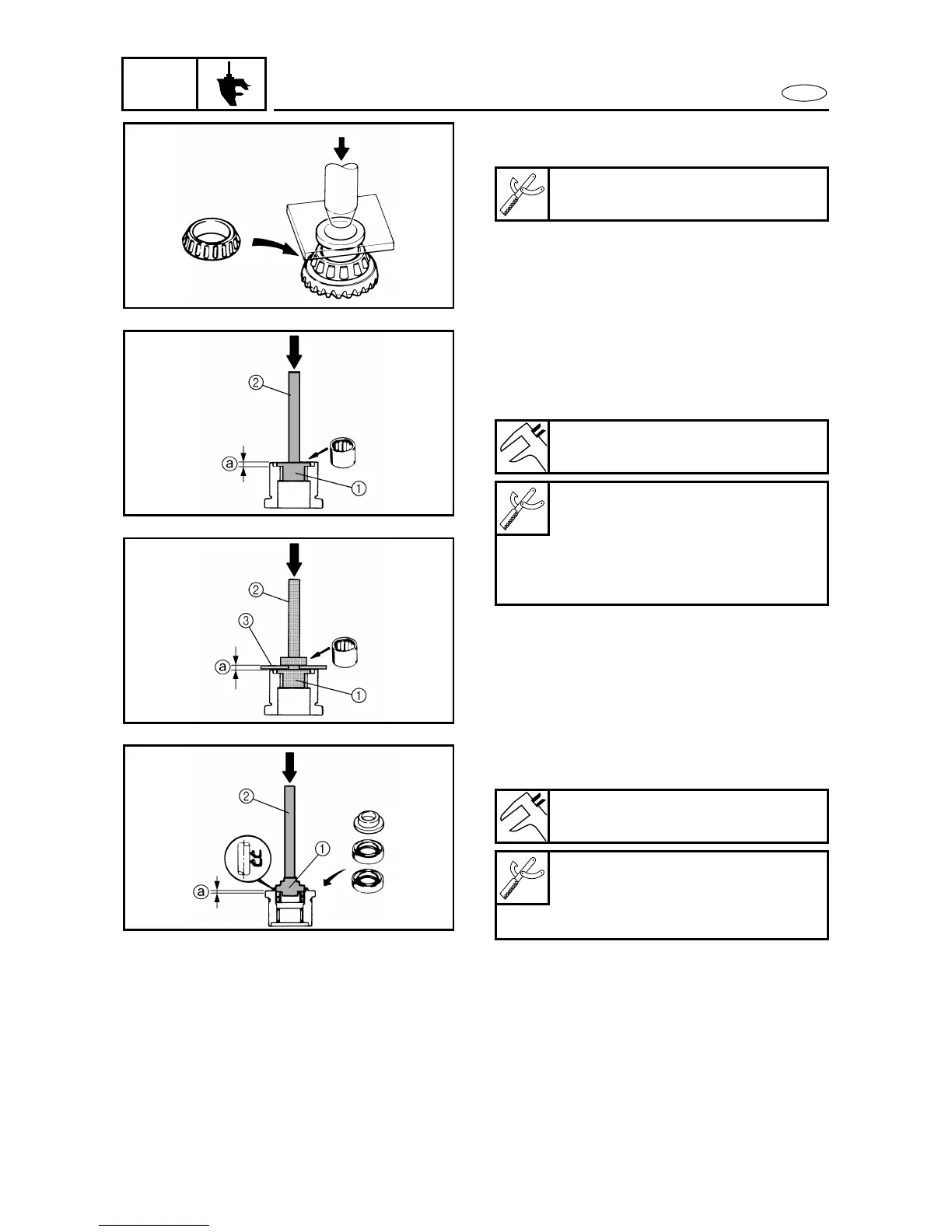

Yamaha F115A - Assembling the Drive Shaft Housing Assembly

6-21
E
LOWR
DRIVE SHAFT (REGULAR ROTATION MODELS)
2. Install:
• Tapered roller bearing
Bearing/oil seal attachment
YB-06200 / 90890-06661
6300
ASSEMBLING THE DRIVE SHAFT
HOUSING ASSEMBLY
6
1. Install:
• Needle bearing
Å For USA and Canada
ı For worldwide
Position a
5.75 - 6.25 mm (0.226 - 0.246 in)
Bearing/oil seal attachment .... 1
YB-06196 / 90890-06610
Driver rod .................................. 2
YB-06071 / 90890-06604
Bearing/oil seal depth plate .... 3
90890-06603
6310
Å
6320
ı
2. Install:
• Oil seal
Oil seal installation position a
0.25 - 0.75 mm (0.010 - 0.030 in)
Bearing/oil seal attachment .... 1
YB-06195 / 90890-06633
Driver rod .................................. 2
YB-06071 / 90890-06652
6330
