7-49

BRKT

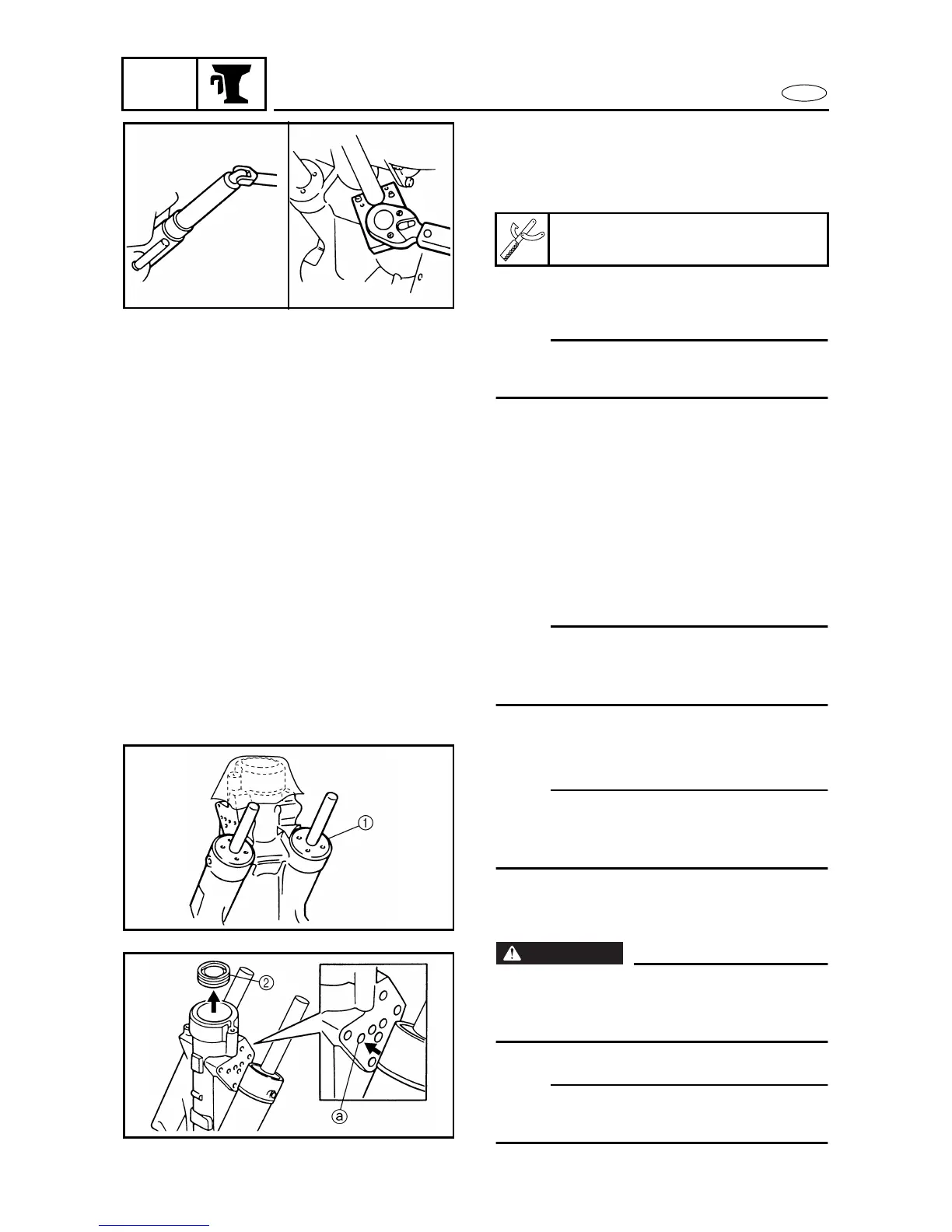

TRIM RAM ASSEMBLIES AND FREE PISTON

REMOVING THE TRIM RAM END

SCREWS

Loosen:

• Trim ram end screw

Å For USA and Canada

ı For worldwide

NOTE:

Hold the power trim and tilt unit in a vise

using aluminum plates on both sides.

End screw wrench

YB-06175-1A / 90890-06548

7450

Åı

REMOVING THE FREE PISTON

1. Drain:

• Power trim and tilt fluid

NOTE:

After removing the trim ram assemblies,

drain the fluid from the power trim and tilt

unit.

2. Install:

• Trim ram assemblies 1

NOTE:

Finger-tighten the trim ram assemblies and

then cover the tilt cylinder openings with a

clean cloth.

3. Remove:

• Free piston 2

WARNING

Never look into the tilt cylinder opening

because the free piston and hydraulic fluid

may be expelled out forcefully.

NOTE:

Remove the free piston by blowing com-

pressed air through the hole a.

7460

7470
