Yamaha F115A - Disassembling;Assembling the Junction Box Assembly

5-18
POWR
E
ECM AND JUNCTION BOX ASSEMBLY
5

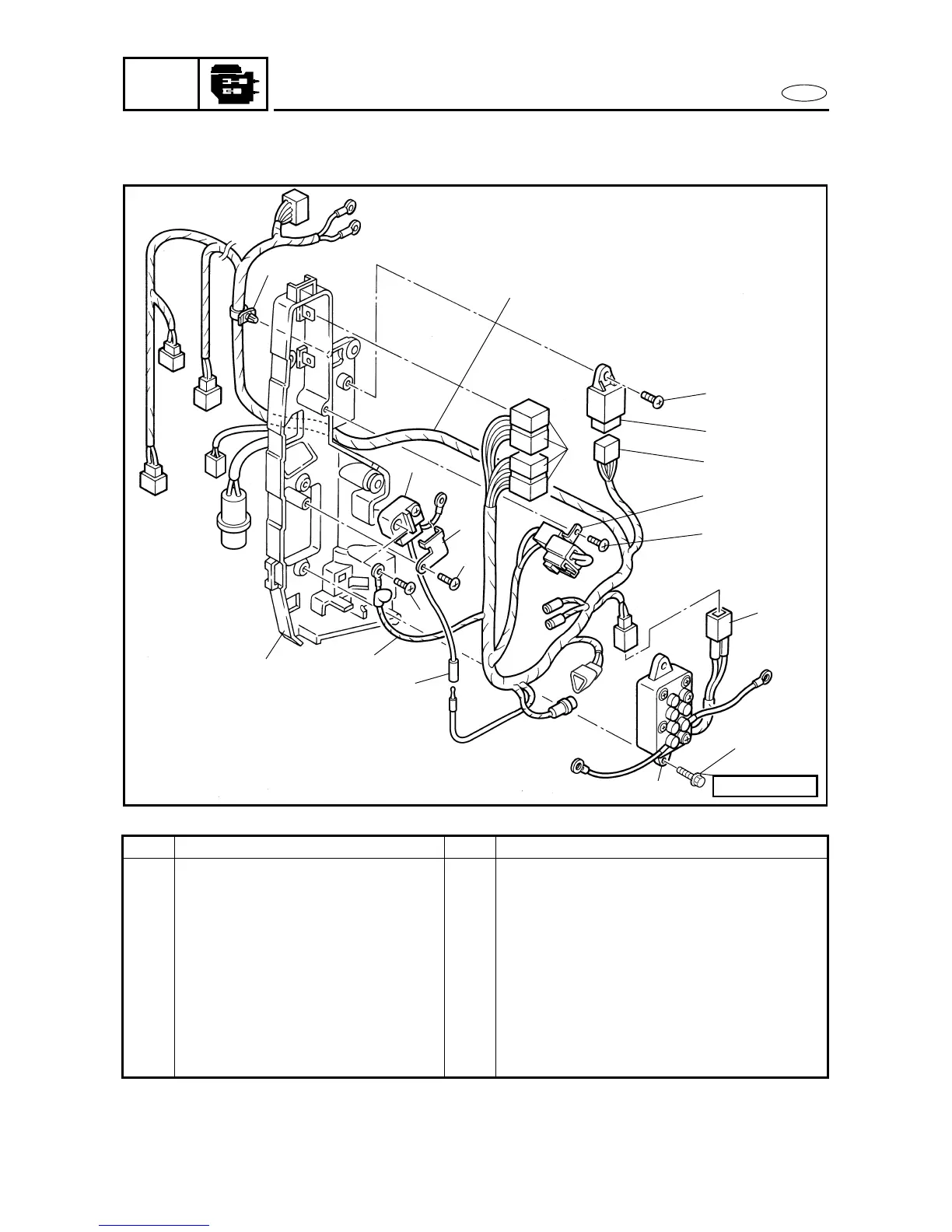

DISASSEMBLING/ASSEMBLING THE JUNCTION BOX ASSEMBLY 4
Order Job/Part Q’ty Remarks
1 Screw 1
2 Main relay coupler 1
3 Main relay 1
4 Bolt 2
5 PTT relay coupler 1
6 PTT relay 1
7 Screw 1
8 Plate 1
9 Screw 1
Continued on next page.
6
4
5
13
14
2
3
1
17
16
9
7
8
12
11
10
18
15
6 × 14 mm
5210
