Yamaha F115A - THROTTLE BODY

4-5
FUEL
E
THROTTLE BODY
THROTTLE BODY
4

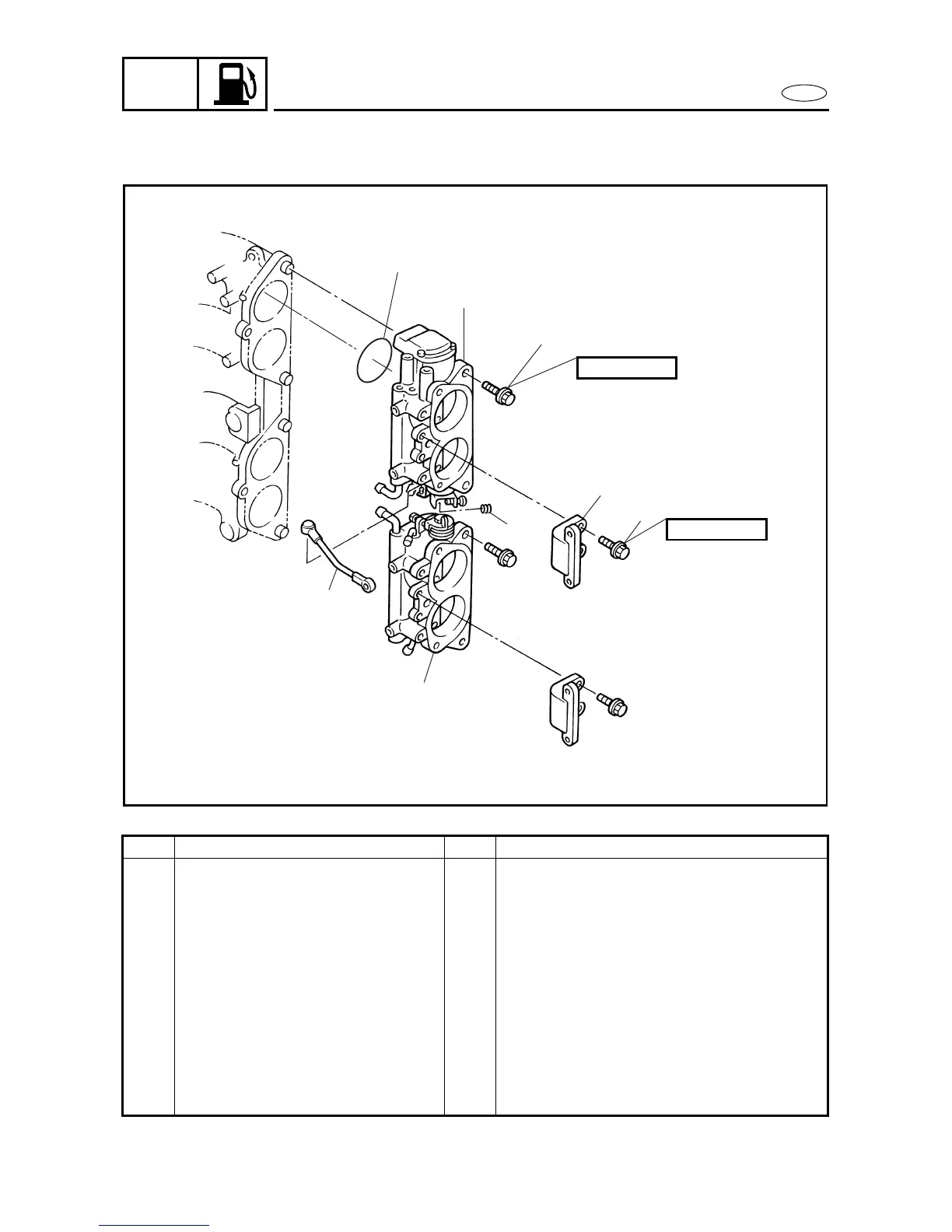

REMOVING/INSTALLING THE THROTTLE BODY 4
Order Job/Part Q’ty Remarks
Intake assembly Refer to “INTAKE ASSEMBLY” on page
4-3.
1 Bolt 4
2 Bracket 2
3 Bolt 6
4 Throttle body #1 1
5 Spring 1
6 Throttle joint link rod 1
7 Throttle body #2 1
8 O-ring 4 2.46 × 48 mm
For installation, reverse the removal
procedure.
7
3
4
2
1
6
5
8 × 70 mm
6 × 20 mm
8
4030
