4-1
FUEL
E
INTAKE SILENCER
4

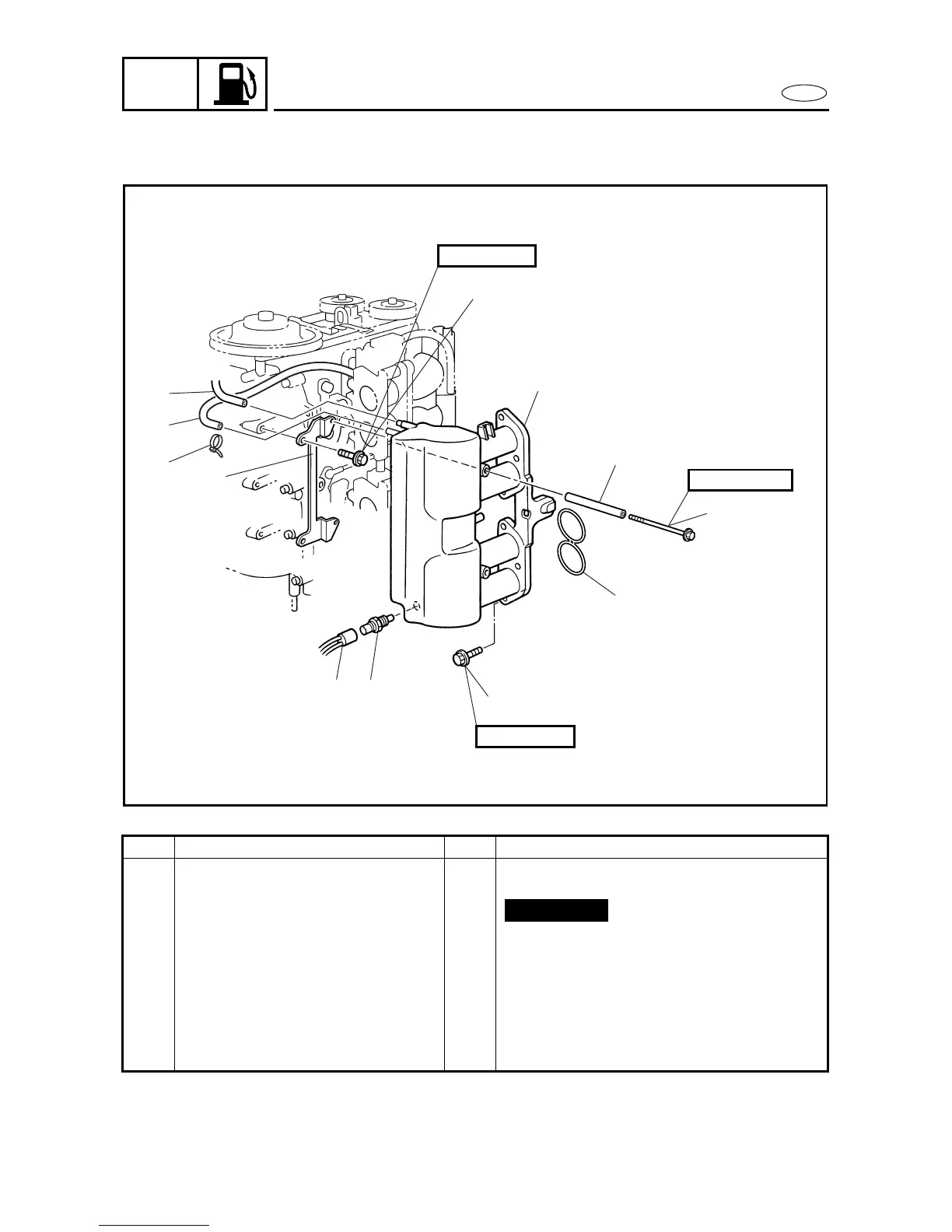

REMOVING/INSTALLING THE INTAKE SILENCER
4
Order Job/Part Q’ty Remarks
Flywheel cover Refer to “FLYWHEEL MAGNET
ASSEMBLY” on page 5-1.
1 Plastic locking tie 1
2 Hose 1 (cylinder head cover-to-intake silencer)
3 Hose 1 (vapor separator-to-intake silencer)
4 Intake air temperature sensor
coupler
1
5 Intake air temperature sensor 1
6 Bolt 2
Continued on next page.
1
3
2
4
5
6
7
9
10
8
12
11
8 × 20 mm
6 × 20 mm
6 × 105 mm
4015
Not reusable
INTAKE SILENCER
To Next Page
