Yamaha F115A - LOWER CASE ASSEMBLY (REGULAR ROTATION MODELS)

6-23
E
LOWR
LOWER CASE ASSEMBLY (REGULAR ROTATION MODELS) 6
DISASSEMBLING/ASSEMBLING THE LOWER CASE ASSEMBLY 6

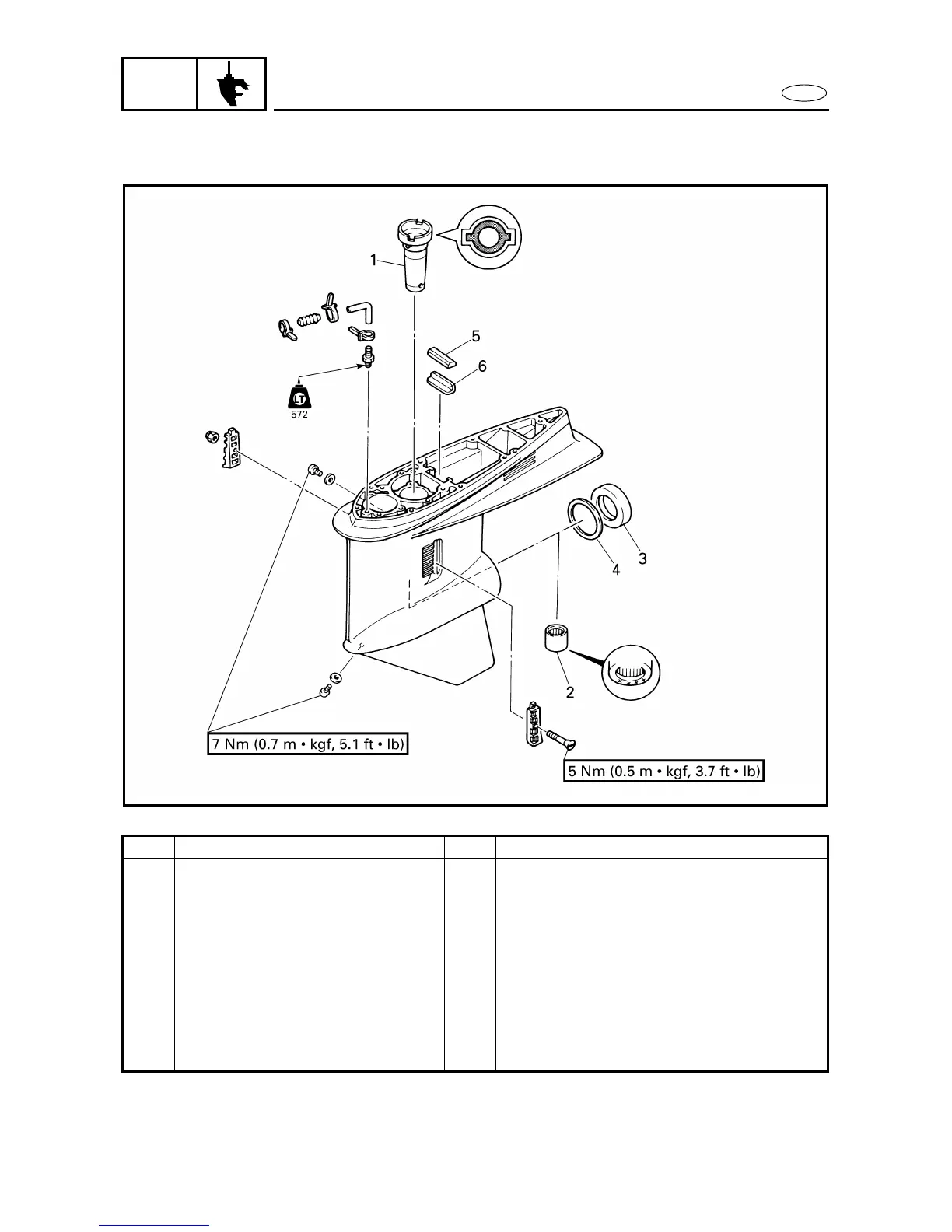

Order Job/Part Q’ty Remarks
Forward gear Refer to “DRIVE SHAFT (REGULAR
ROTATION MODELS)” on page 6-17.
1 Drive shaft sleeve 1
2 Needle bearing 1
3 Tapered roller bearing outer race 1
4 Forward gear shim *
5 Water seal 1
6 Plate 1
For assembly, reverse the disassembly
procedure.
*: As required
6350
LOWER CASE ASSEMBLY
(REGULAR ROTATION MODELS)
