4-22
FUEL
E
FUEL RAIL
FUEL RAIL
4

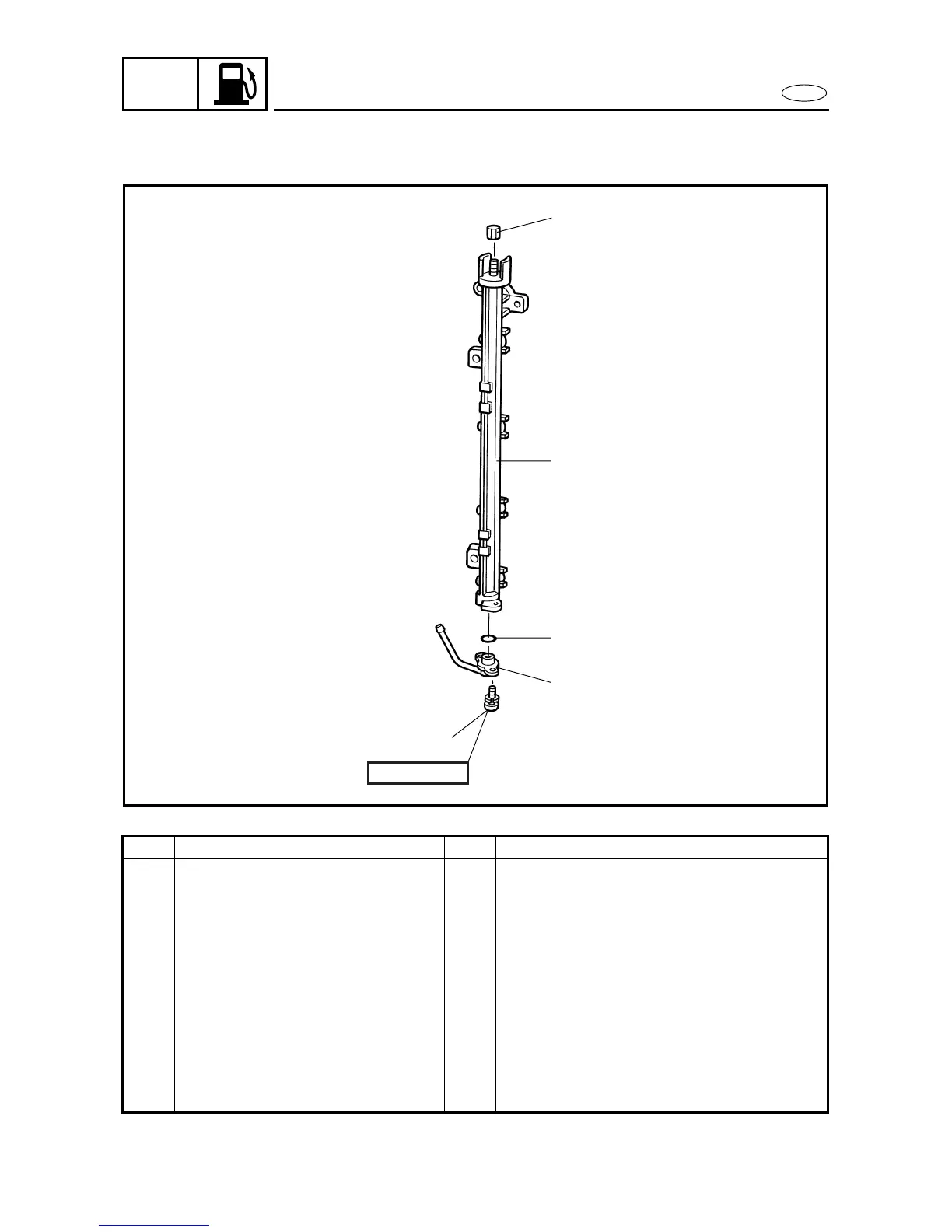

DISASSEMBLING/ASSEMBLING THE FUEL RAIL 4
Order Job/Part Q’ty Remarks
Fuel injectors Refer to “FUEL INJECTORS” on page
4-12.
Fuel hoses Refer to “FUEL HOSES” on page 4-14.
Pressure regulator Refer to “PRESSURE REGULATOR” on
page 4-18.
1 Cap 1
2 Screw 2
3 Fuel rail joint 1
4 O-ring 1 2.4 × 12 mm
5 Fuel rail 1
For assembly, reverse the disassembly
procedure.
4170
2
3
4
5
1
5 × 10 mm
To Next Page
