Yamaha F115A - POWER UNIT

3-11
E
INSP
ADJ
COOLING SYSTEM/POWER UNIT
COOLING SYSTEM
3

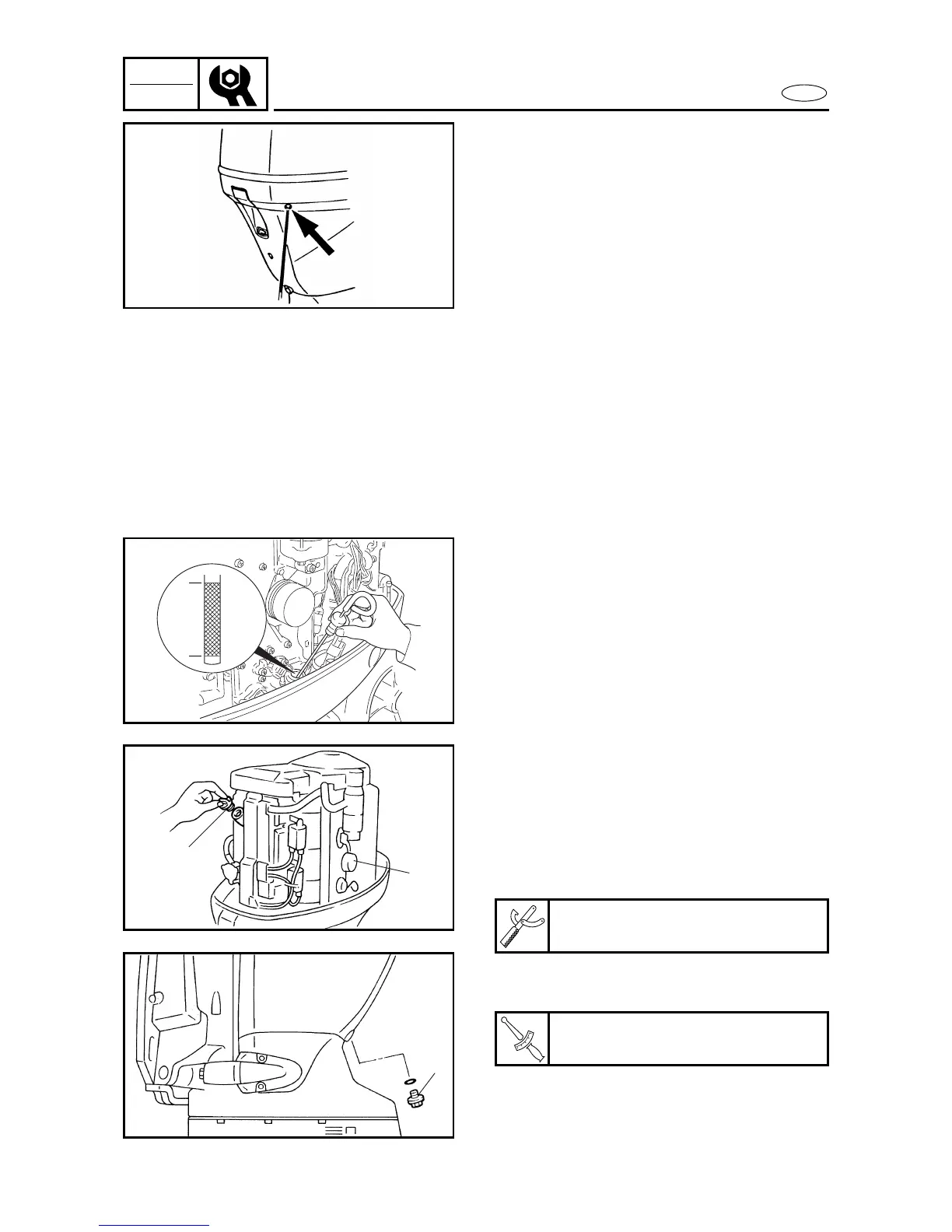

CHECKING THE COOLING WATER
DISCHARGE
3
Check:
• Cooling water discharge
No discharge → Clean and check the
cooling water passage.
Checking steps
(1) Place the lower unit in water.
(2) Start the engine.
(3) Check that water flows from the cool-
ing water outlet.
3200
POWER UNIT 3
CHECKING THE ENGINE OIL LEVEL 3
Check:
• Engine oil level
Above a → Check for fuel in the
engine oil.
Below b → Add engine oil so that the
level is between a and b.
a
b
3210
REPLACING THE ENGINE OIL/OIL
FILTER
3
1. Remove:
• Oil filler cap 1
• Drain plug 2
2. Remove:
• Oil filter 3
3. Install:
• Drain plug 2
Oil filter wrench
YU-38411 / 90890-01426
T
R
.
.
Drain plug
28 Nm (2.8 m • kgf, 20 ft • lb)
1
3
3220
2
3230
