Yamaha F115A - Disassembling;Assembling the Vapor Separator

4-16
FUEL
E
VAPOR SEPARATOR
4

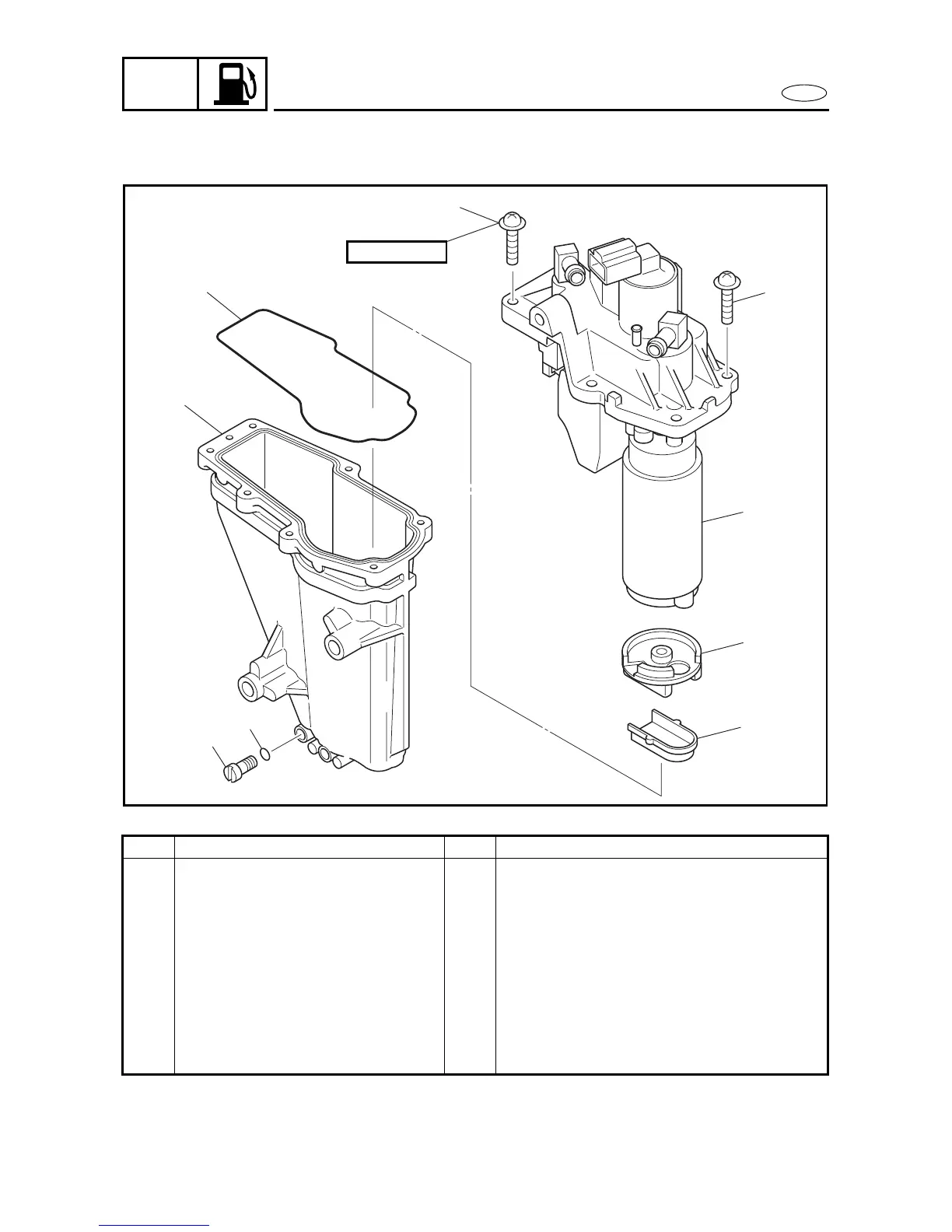

DISASSEMBLING/ASSEMBLING THE VAPOR SEPARATOR
Order Job/Part Q’ty Remarks
1 Drain screw 1
2 Gasket 1
3 Screw 7
4 O-ring 1
5 Float chamber 1
6 Holder 1
7 High-pressure fuel pump filter 1
8 Vapor separator body 1
For assembly, reverse the disassembly
procedure.
4
3
5
7
8
3
6
1
2
4 × 16 mm
4120
