4-12
FUEL
E
FUEL INJECTORS
FUEL INJECTORS
4

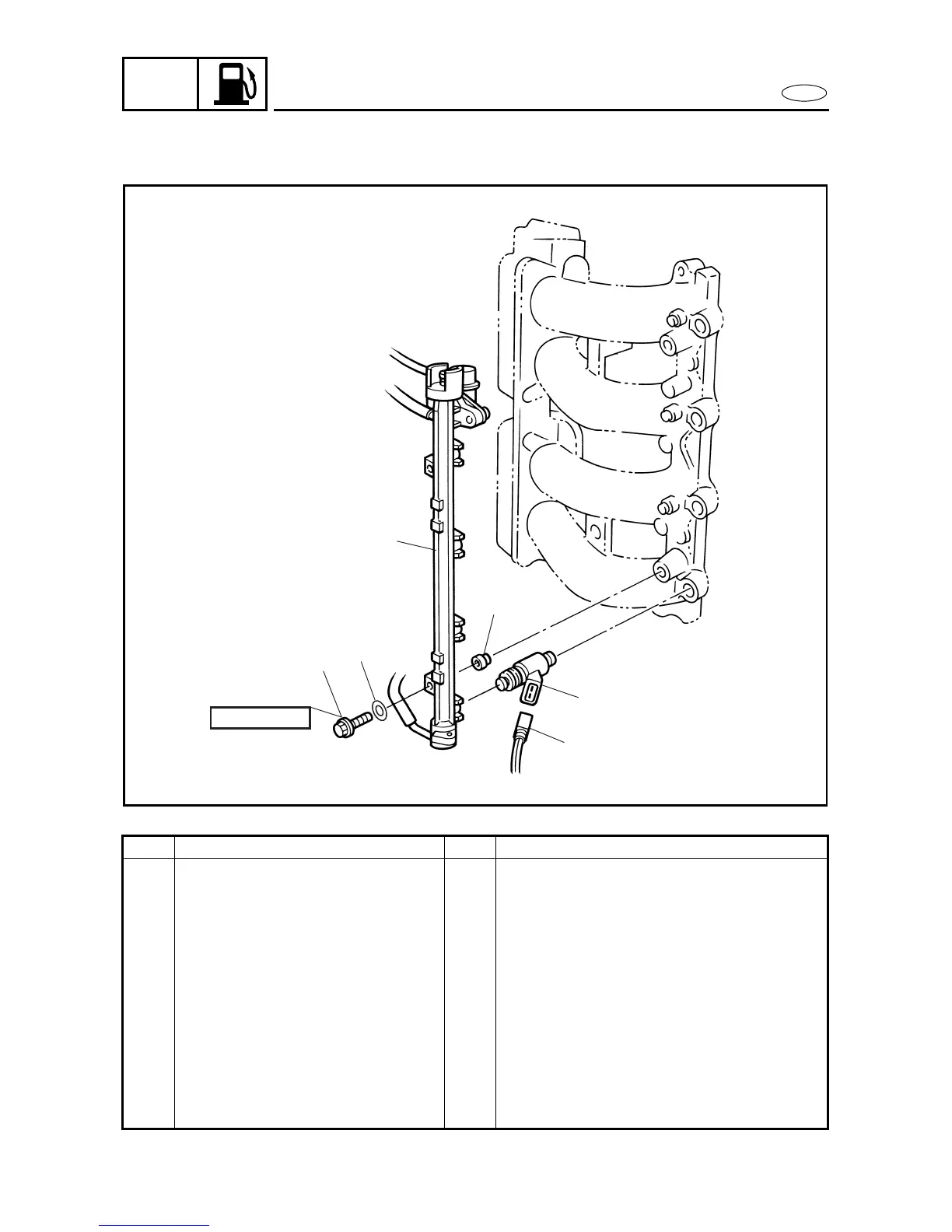

REMOVING/INSTALLING THE FUEL INJECTORS
Order Job/Part Q’ty Remarks
High-pressure fuel line Refer to “HIGH-PRESSURE FUEL LINE”
on page 4-8.
Before performing the following
procedure, reduce the fuel pressure
(high-pressure fuel line).
1 Bolt 2
2 Washer 2
3 Fuel cooler 1
4 Collar 2
5 Fuel injector coupler 4
6 Fuel injector 4
For installation, reverse the removal
procedure.
4070
1
2
8 × 45 mm
4
5
6
3
To Next Page
