FUEL
E
FUEL HOSES
4

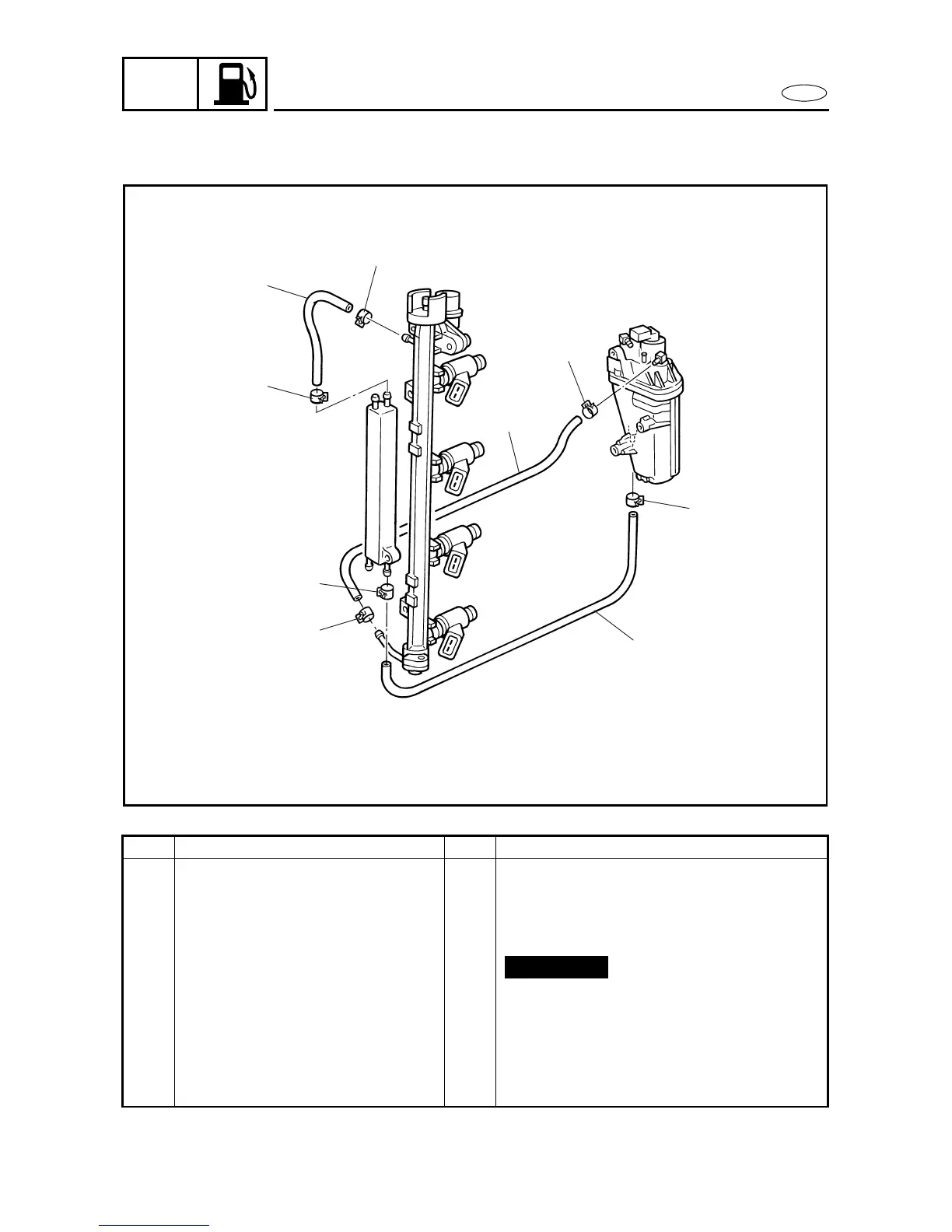

REMOVING/INSTALLING THE FUEL HOSES
Order Job/Part Q’ty Remarks
High-pressure fuel line Refer to “HIGH-PRESSURE FUEL LINE”
on page 4-8.
Before performing the following
procedure, reduce the fuel pressure
(high-pressure fuel line).
1 Hose clamp 2
2 Hose clamp 4
3 Fuel hose 1 (vapor separator-to-fuel rail)
4 Fuel hose 1 (pressure regulator-to-fuel cooler)
5 Fuel hose 1 (fuel cooler-to-vapor separator)
For installation, reverse the removal
procedure.
4100
2
1
1
5
3
2
4
2
2
Not reusable
FUEL HOSES
